When the incremental encoder shaft rotates, it has corresponding phase output. The discrimination of the rotation direction and the increase or decrease of the number of pulses need to be realized by the judgment circuit and counter at the back. The counting starting point can be set arbitrarily, and the infinite accumulation and measurement of multiple circles can be realized. The Z signal of one pulse per revolution can also be used as the reference mechanical zero position. When the pulse is fixed and the resolution needs to be improved, two signals with 90 degree phase difference a and B can be used to double the original pulse number.

Application		Servo motor、high-end CNC machine tools
Feature		high resolution、various shaft diameters available、can provide line-saving output、dustproof design、strong anti-interference

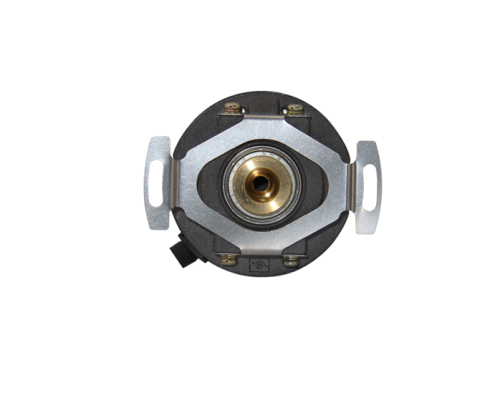

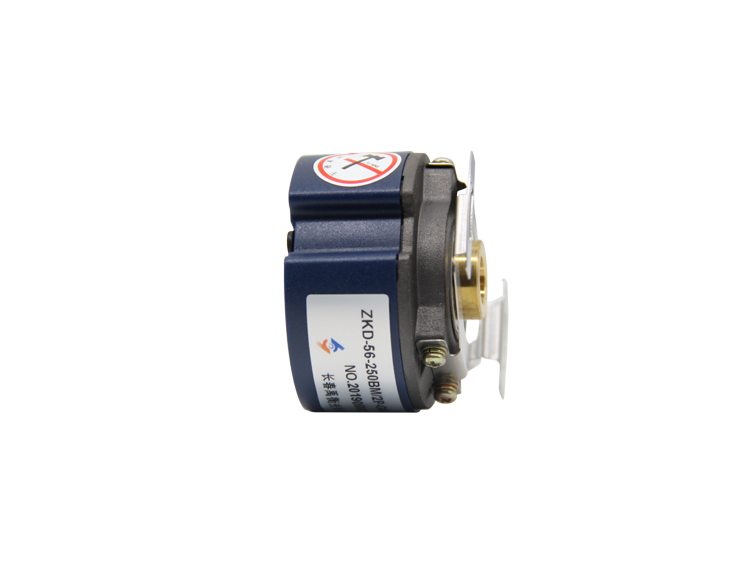

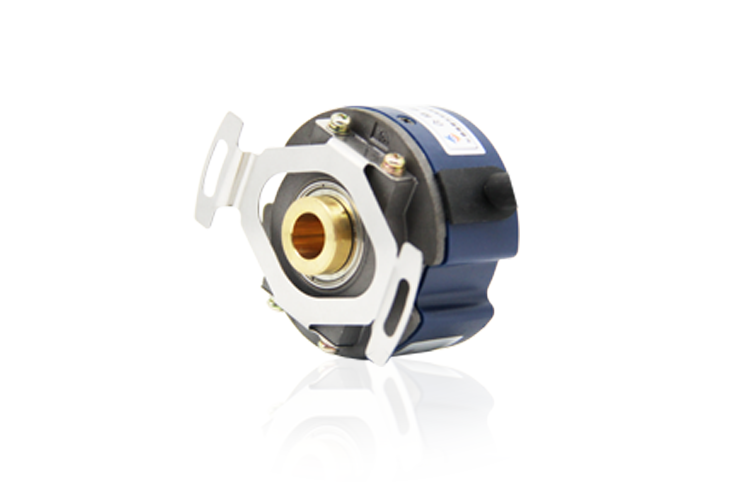

Model	［unit］	ZKD-56B-200BM/4P-G05L
Mechanical parameter
Dimension	［mm］	φ48*33
Shaft type		Hollow shaft
Shaft size /aperture	φ［mm］	Cone shaft9
Max. rotate speed	［r/min］	6000
Max. shaft load Axial / Radial	［N］	10/10
Operating temperature	［℃］	-30～+85
Protection level		IP40
Connection type		Spring Plate
resolution	［P/r］	2000
Electrical parameter
Output pattern		Line driver
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	350
Optional
