Incremental encoder is a kind of sensor which converts the mechanical geometric displacement on the output shaft into pulse or digital value by photoelectric conversion. It is composed of grating disk and photoelectric detection device. The grating disk is a circular plate with a certain diameter, and several rectangular holes are equally opened. Because the photoelectric encoder is coaxial with the motor, when the motor rotates, the grating disc and the motor rotate at the same speed. The detection device composed of light-emitting diodes and other electronic components detects and outputs several pulse signals. The encoder is coated with two barriers with 90 ° difference, which are called channel A and channel B respectively. The output pulse is also 90 ° different. When the encoder rotates forward, phase A is 90 ° ahead of phase B. when the encoder rotates backward, phase A is 90 ° behind phase B.

Application		CNC machine tools
Feature		multi-axis optional, including other functions such as magnification emergency stop

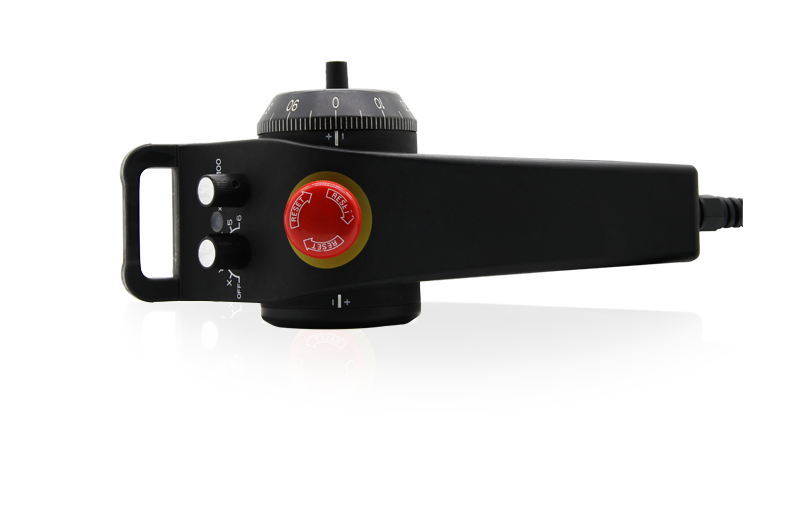

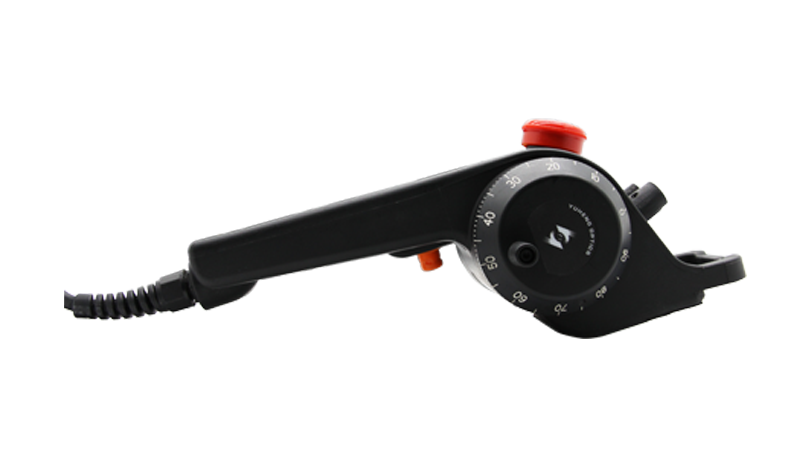

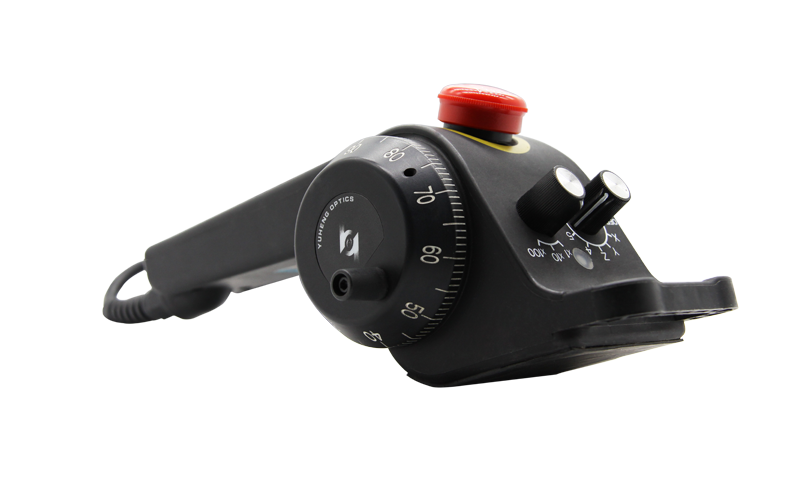

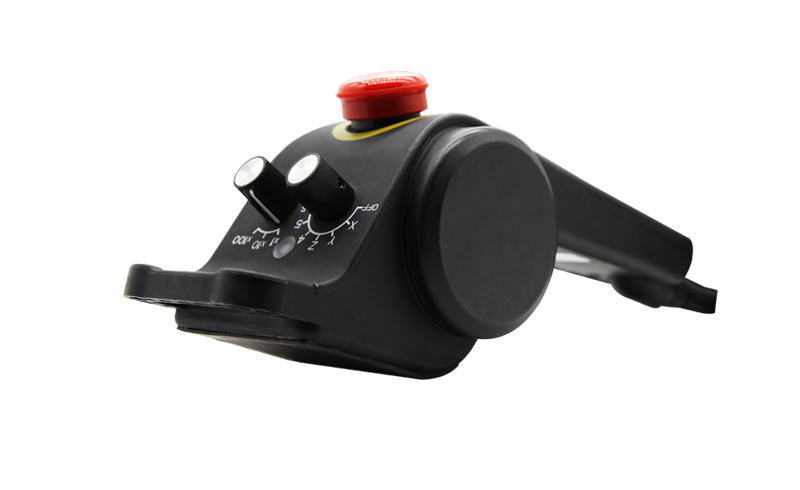

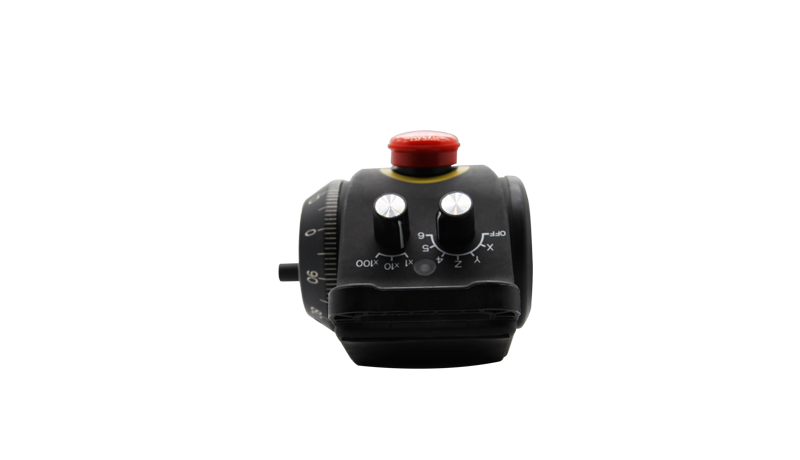

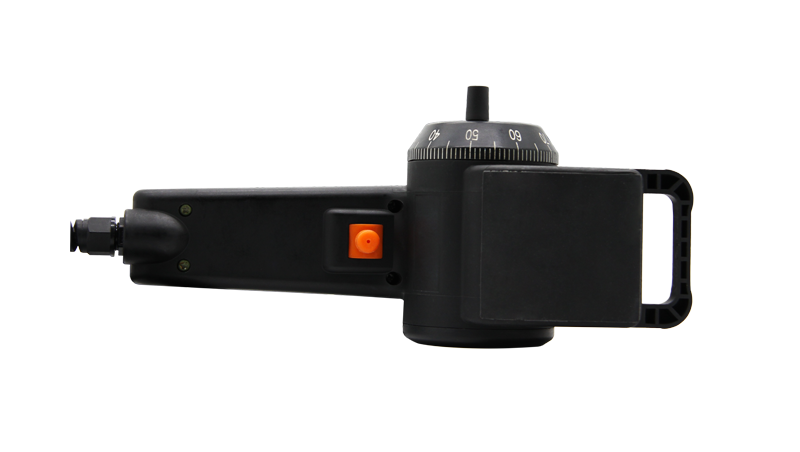

Model	［unit］	ZSJ-13A-001-100
Mechanical parameter
Dimension	［mm］	φ74x162
Shaft type		6
Shaft size /aperture	φ［mm］	3
Max. rotate speed	［r/min］	600
Max. shaft load Axial / Radial	［N］	1
Operating temperature	［℃］	-10～+60
Protection level		IP67
Connection type		1
resolution	［P/r］	100
Electrical parameter
Output pattern		Voltage
Supply voltage	DC［V］	5～15
Response frequency / Response rate	［KHz］	5
Optional
