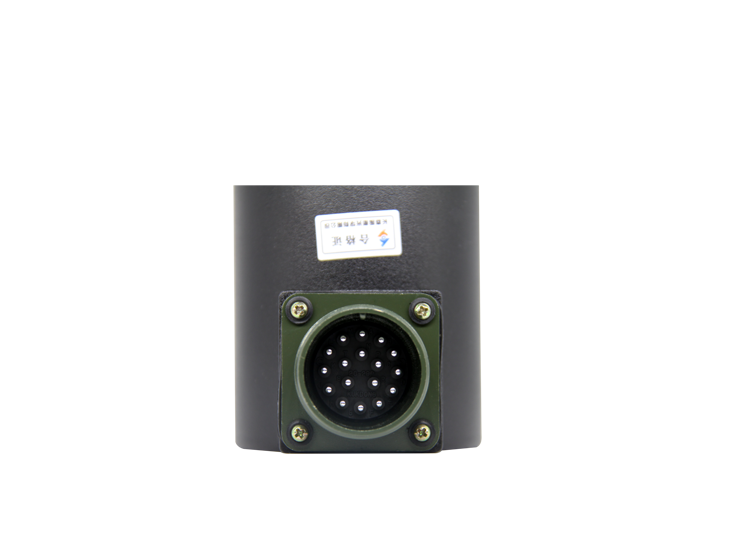

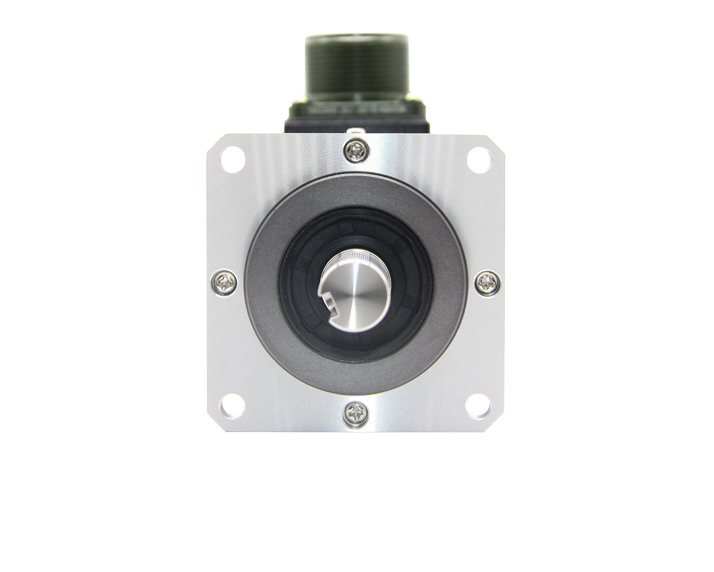

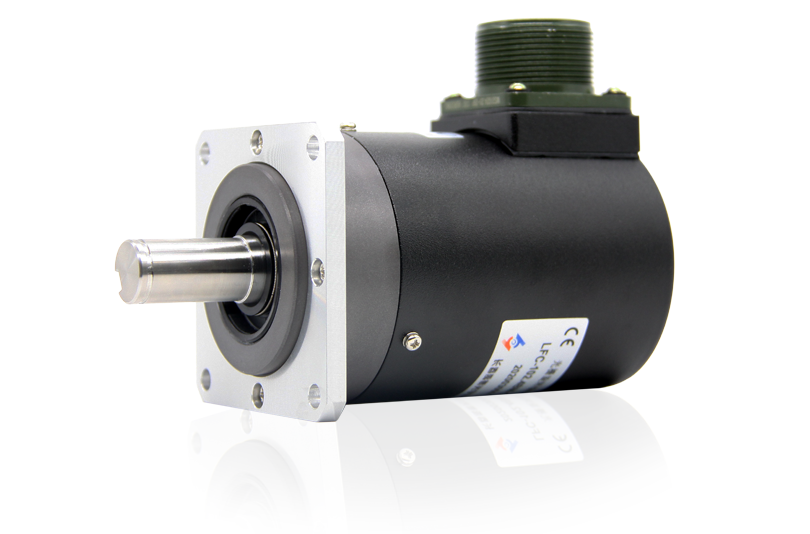

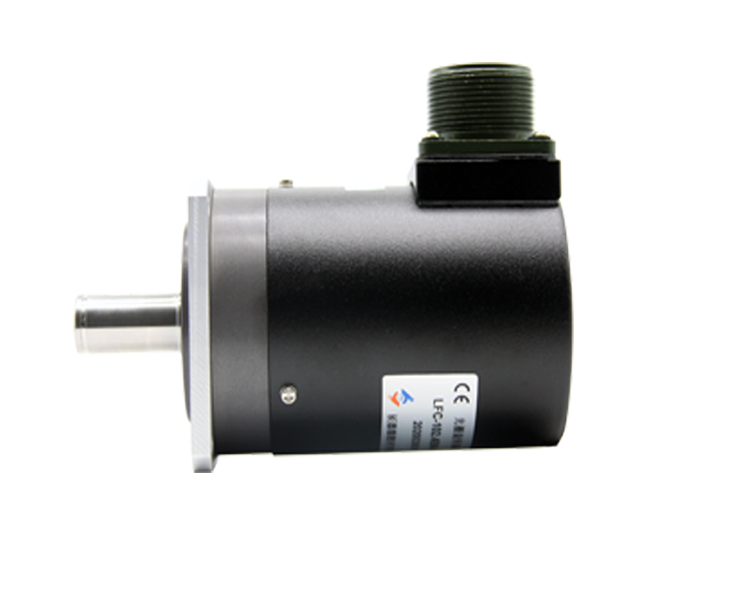

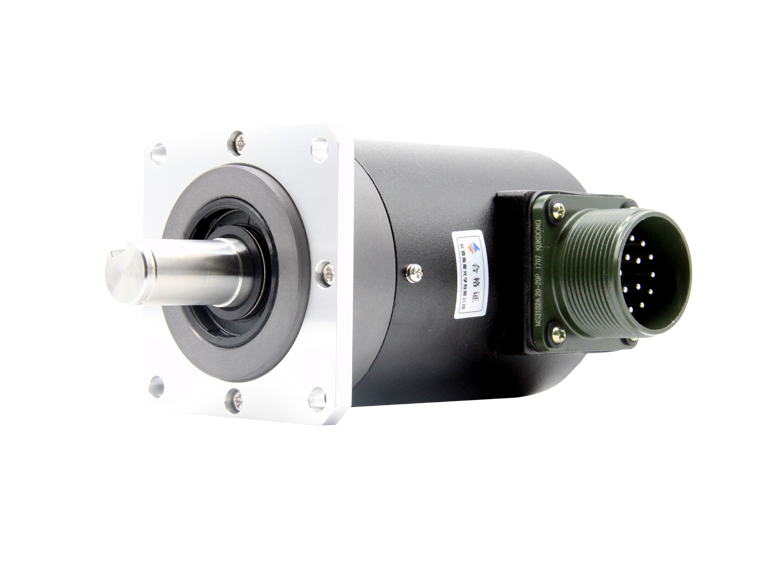

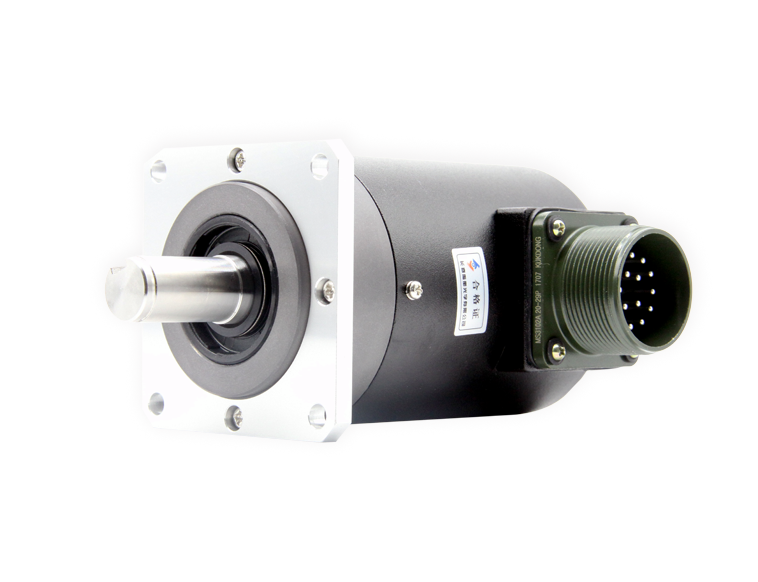

Encoder wheel sensor encoder
Options:
- Max. rotate speed ：［r/min］ 600
- Operating temperature ：［℃］ 0～+60
- Protection level ： IP50
- resolution ：［P/r］ 100
- Supply voltage ：DC［V］ 15～24
- Response frequency / Response rate ：［KHz］ 5
Get Latest Price
You might also like
Basic Info
| Model No. | LGF-12A-001B-100 |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | metal disk |
| Model | ［unit］ LGF-12A-001B-100 |
| Dimension | ［mm］ φ80×60 |
| Connection type | Panel nut positioning (diameter φ50.8) |
Show More
Product description
The advantage of the multi-turn encoder is that due to the large measurement range, the actual use is often richer, so there is no need to laboriously find the change point during installation. It is enough to use a certain intermediate position as the starting point, which greatly simplifies the difficulty of installation and debugging. Multi-turn absolute encoders have obvious advantages in length positioning and have been increasingly used in industrial control positioning.
| Application | CNC machine tools | |
| Feature | metal disk | |
| Model | ［unit］ | LGF-12A-001B-100 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ80×60 |
|
Shaft type |
||
|
Shaft size /aperture |
φ［mm］ | |
|
Max. rotate speed |
［r/min］ | 600 |
|
Max. shaft load Axial / Radial |
［N］ | __ |
|
Operating temperature |
［℃］ | 0～+60 |
|
Protection level |
IP50 | |
|
Connection type |
Panel nut positioning (diameter φ50.8) | |
|
resolution |
［P/r］ | 100 |
|
Electrical parameter |
||
|
Output pattern |
Voltage | |
|
Supply voltage |
DC［V］ | 15～24 |
| Response frequency / Response rate | ［KHz］ | 5 |
|
Optional |
Encoder wheel sensor encoder
Options:
- Max. rotate speed ：［r/min］ 600
- Operating temperature ：［℃］ 0～+60
- Protection level ： IP50
- resolution ：［P/r］ 100
- Supply voltage ：DC［V］ 15～24
- Response frequency / Response rate ：［KHz］ 5
