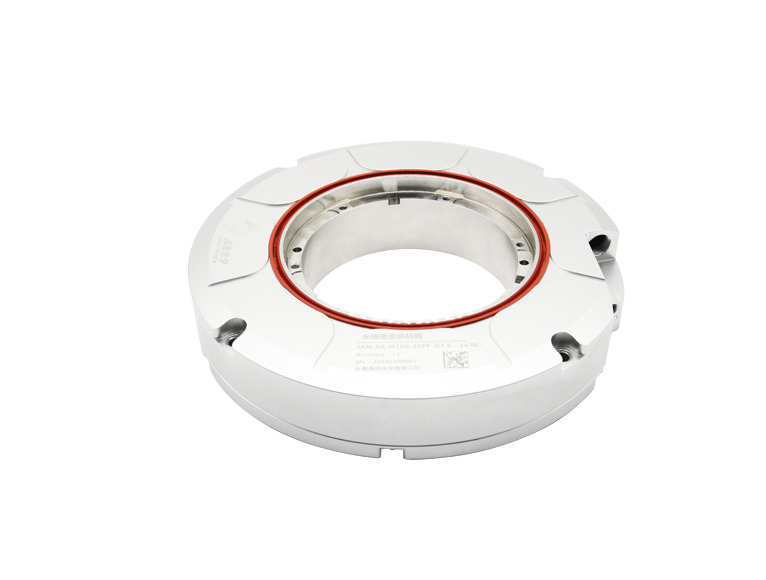

Absolute encoder linear

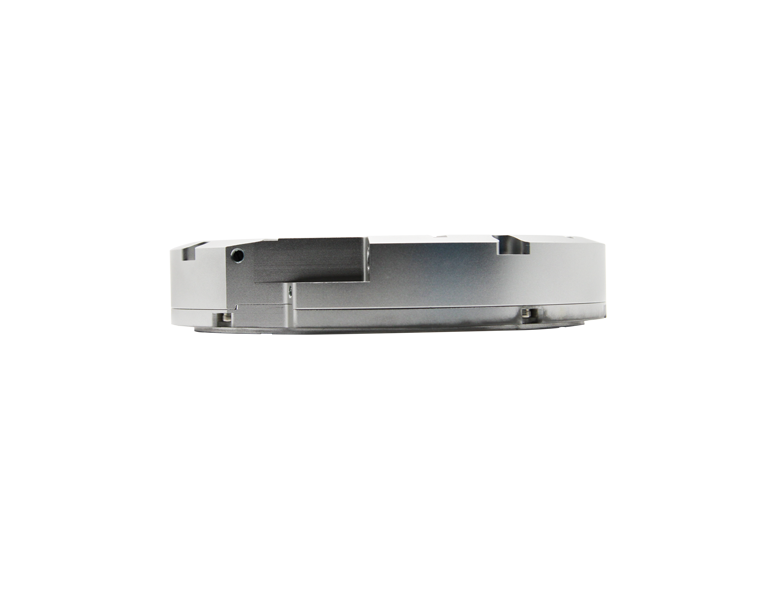

Absolute encoder linear

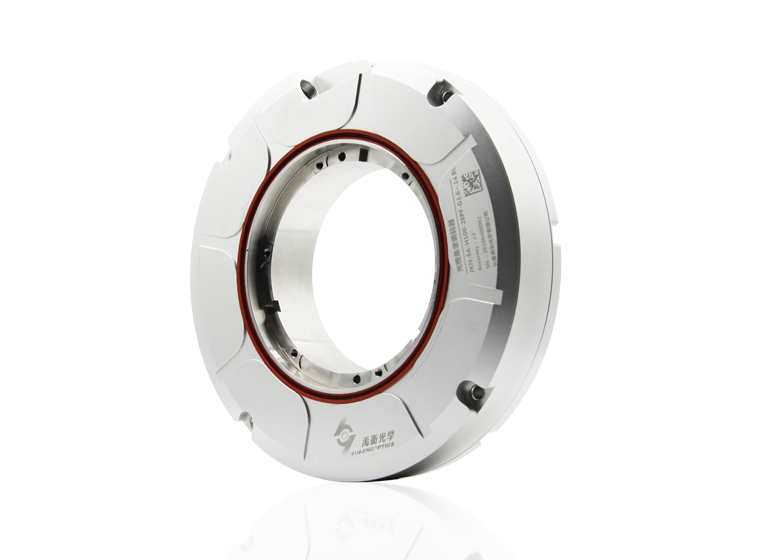

Absolute encoder linear

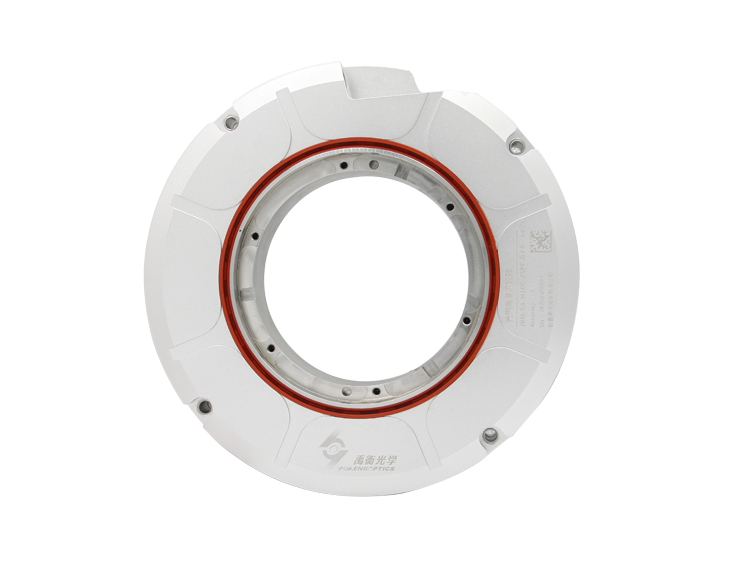

Absolute encoder linear

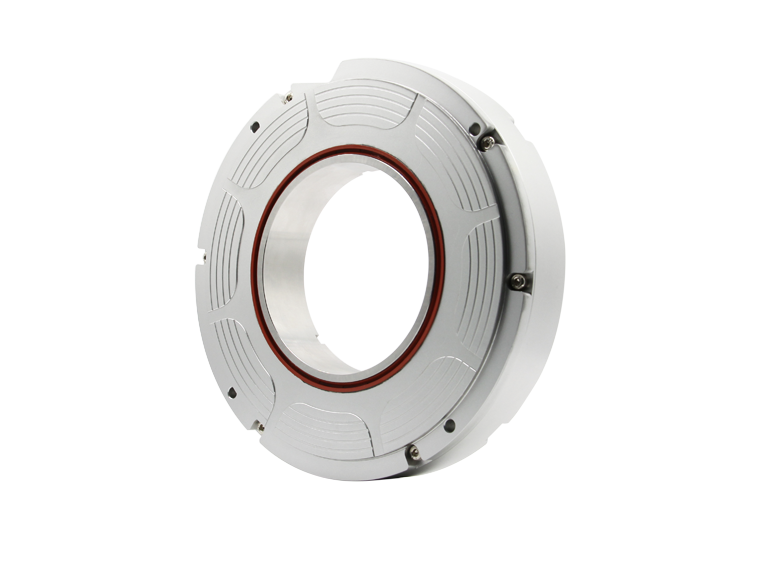

Absolute encoder linear

1 / 5

Absolute encoder linear

Options:

  • Model:JKN-8A-H100-26PB-G05BL
  • Dimension:φ200*40
  • Shaft size /aperture:100
  • Max. rotate speed: 3000
  • Max. shaft load Axial / Radial :20/30
  • Operating temperature:0~+60
Get Latest Price

Basic Info

Model No. JKN-8A-H100-26PB-G05BL
Brand Name Yuheng
Application High precision measurement、high precisionturntable and other precision instruments
Feature multiple communication protocols、high precision
Shaft type hollow shaft
Protection level IP64
Connection type Spring Plate
resolution 226
Output pattern BISS
Supply voltage 5
Response frequency / Response rate 10
Show More

Product description

Although the encoder itself will not lose the number of turns in the interference environment, it will cause interference to the data in the transmission process. Therefore, when there is a motor in the system or in a strong electromagnetic interference environment, the encoder must be powered by an isolated power supply and an external extension. It is best to use double-shielded cables for communication lines.


Jkn 8a 1Jkn 8a 1Jkn 8a 21Jkn 8a1Jkn 8a 1
Application High precision measurement、high precisionturntable and other precision instruments
Feature multiple communication protocols、high precision
Model [unit] JKN-8A-H100-26PB-G05BL
Mechanical parameter
Dimension [mm] φ200*40

Shaft type

hollow shaft

Shaft size /aperture
φ[mm] 100

Max. rotate speed
[r/min] 3000

Max. shaft load
Axial / Radial
[N] 20/30

Operating temperature
[℃] 0~+60

Protection level
IP64

Connection type
Spring Plate

resolution
[P/r] 226

Electrical parameter

Output pattern
BISS

Supply voltage
DC[V] 5
Response frequency / Response rate [KHz] 10

Optional
