The multi turn absolute encoder is identified by EAM start character. It is an extension of the application range of single turn encoder. The resolution of this kind of encoder can reach 8192 position / revolution in a single turn, and its multi turn count can reach 4096 turns. We can make an attachment for measuring linear motion with elastic expansion according to customers' requirements. The accessories on the spindle enable the encoder to install one or more reducers in a "cascade" manner, so that the encoder can also ensure accurate reading in case of power failure. Encoder resolution is currently up to 25 bits, which is equivalent to 33553432 positions. The performance of the encoder is good and safe.  Encoder multi turn encoder has a variety of optional electrical output modes and mechanical characteristics.

Application		robot、automation
Feature		thin、high resolution、

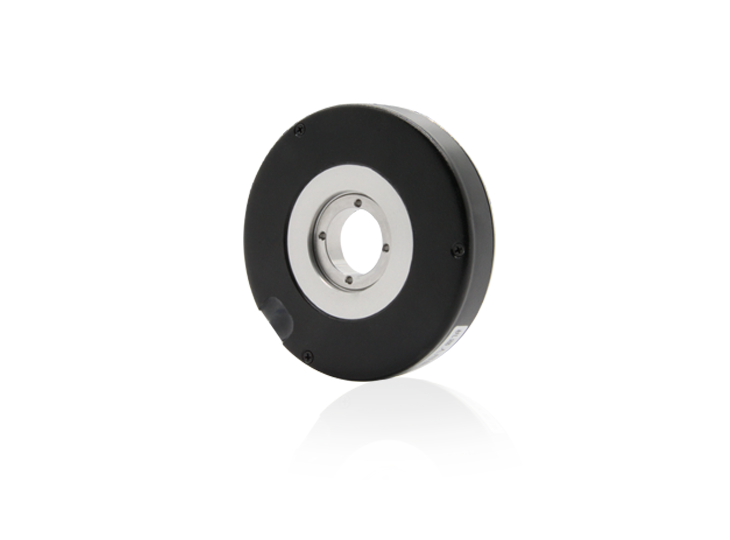

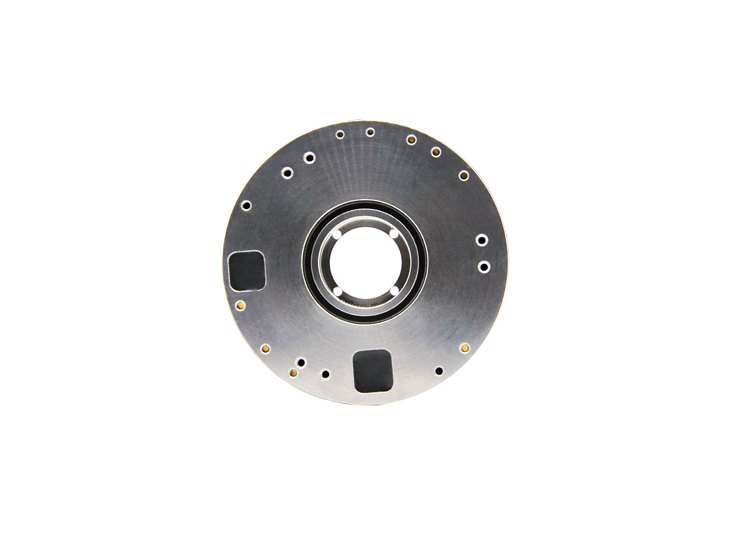

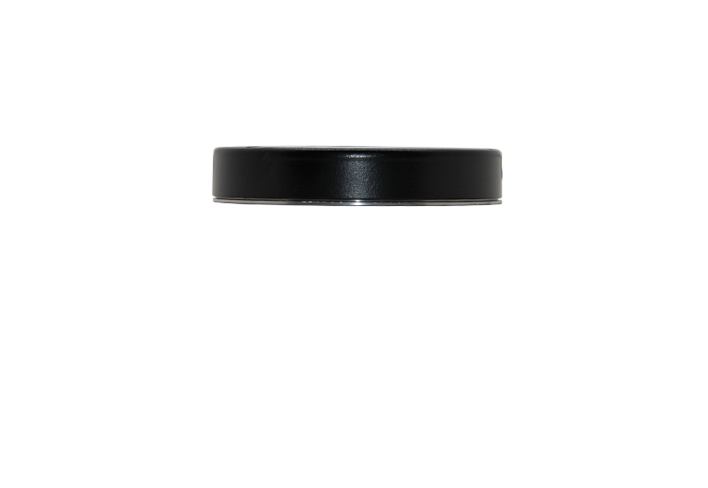

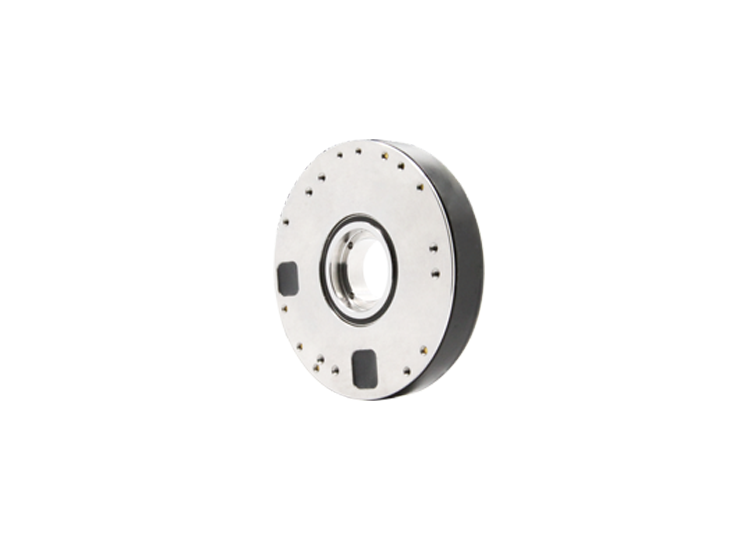

Model	［unit］	JKR-1A-H25-21PB-G05RS485
Mechanical parameter
Dimension	［mm］	φ85*16
Shaft type		hollow shaft
Shaft size /aperture	φ［mm］	25
Max. rotate speed	［r/min］	6000
Max. shaft load Axial / Radial	［N］	10/10
Operating temperature	［℃］	-40～+85
Protection level		IP40
Connection type		Spring Plate
resolution	［P/r］	221
Electrical parameter
Output pattern		RS485
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	115.2Kbps
Optional
