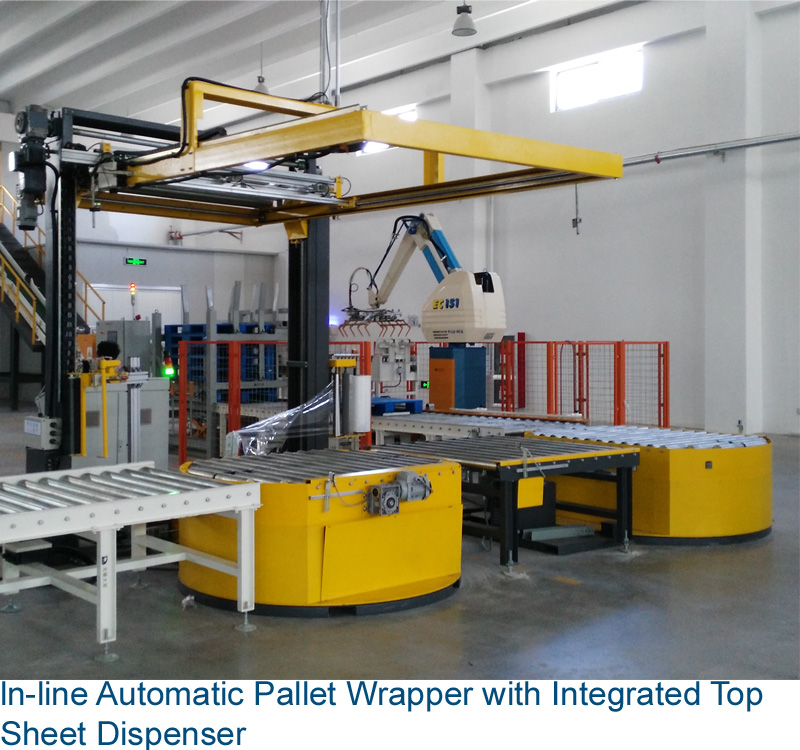

EAT200SPS-TSD-RCT Automatic Pallet Stretch Wrapper Integrated Top Sheet Dispenser

Inline  Stretch Wrapping Machine Integrated TSD (Top Sheet Dispenser) combine with the convyeors. To realize Fully -automatic packing process.

Integrated top sheet dispenser supply the top sheet cover automatically at the same time wrapping the load. Covering the top surface of the pallet for protection against dust & moist.

Cut &grab unit will cut the film and wipe film tail against to the load after wrapping finished. (Film tail welding system Available)

We also provide the conveyor, pallet lifter, 90 degree turntable etc to complete the whole packing line according your application

Are you Looking for end-of-line supplier? Contact Us Soon !

Technical Data:

Load size:                   500mm (L) X 500mm (W) X2000mm (H) (Min)

Specfication

Control system:

• Advanced PLC & Touch screen control system. Remote control the machine, easy to operation

• Parameters setting from display panel.
  Top wrapping times, Bottom Wrapping times, Carriage Up/down times,Reinforce  wraps, Over-wrap timer
  Top sheet film length,
• Film tension, Turntable speed, Carriage up/ down speed , Top sheet film frame lift speed, Top sheet film infeed speed adjustable
• Reinforce wrap allow more wrap on same location of the load. Used in cases where reinforcement is desired.
• Counter to count the numbers of pallets be wrapped
• Wrap cycle pause function : Pause the pallet wrapping machine. Used for inserting labels, corner, protection etc.
• Separate Auto-Start/Reset, Pause & E/S buttons



Reliable load height sensing PE

• Automatic load height detection by photo-eye
• Over-wrap sets the film overwrap at the top of the pallet load.

Stretch Film Delivery System

• Power pre-stretch Film Delivery System, stretch ratio up to 250%.
  Help you save Packing cost= Save money!!
• Film tension adjustable

Safe operation

• Emergency stop button
• Stretch wrapping machine pause automatically if the film breaks during wrapping
• Stretch wrapper safety stop if carriage touch foot or other objects

Turntable drive

• Chain drive, more reliable
• Wheels -low noise

Top sheet dispenser unit

• Lift Speed adjustable
• With pneumatic top platen to ensue the top sheet cover not wave during wrapping
• Sensor to count the top sheet cover length, the operator can setting the length from touch screen
• Top sheet film cutter unit: Rodless cylinder control, Blade cutter
