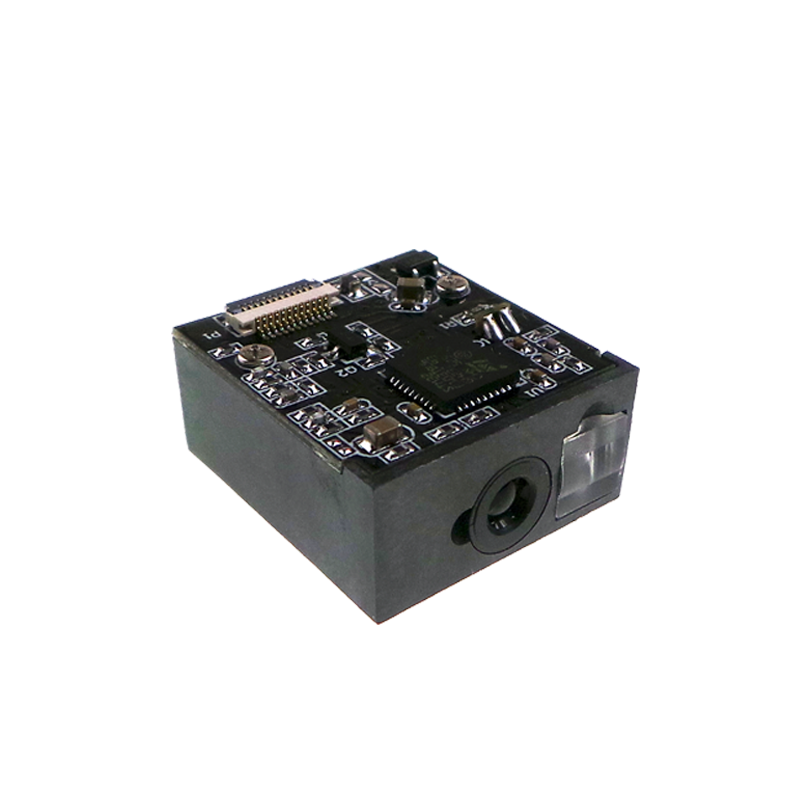

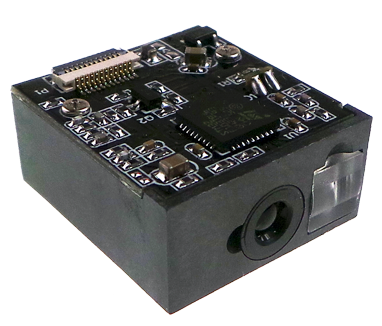

Barcode scanner module 1D 2D barcode reader
$40.00
≥5 Others
$35.00
≥100 Others
$25.00
≥1000 Others
Options:
- WDC3000
Basic Info
| Model No. | WDC3000 |
|---|---|
| Brand Name | winson |
| Certification | Ce |
| product status | Stock |
| Types of | Barcode Scanner |
| Scanning element type | Ccd, Cmos |
| Color point | 32 Bit |
Product description
|
Interface
|
TTL-232/USB
|
|
Interface connector
|
0.5-12P FPC
|
|
Voltage requirement
|
DC 3.3/5V±10%
|
|
Current consumption
|
Max:120mA
|
|
Photo sensor
|
CCD linear sensor
|
|
Sensor Resolution
|
2500pix
|
|
light source
|
LED 632nm red led
|
|
Scan Rate:
|
350±50 (scans/second)
|
|
Decode angle
|
Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
|
|
Min resolution
|
0.127mm/5mil（PCS 0.9）
|
|
Min.PCS value
|
〉20%UPC/EAN 13（13mil）
|
|
curvature
|
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
|
|
Identification
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，
INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128， CODE 11，CHINESE POST |
|
Dimensions
|
24 mm x 22 mm x12mm(L*W*H)
|
|
Configurations
|
Decode
|
|
Temp
|
-0°-65°C / 32°至 149°F((operation) ) -30°- 70°C /-22°至 158°
F(storage) |
