Winson Code Reader Embedded Mini barcode scanner

$120.00 ~ $155.00 / unit

Options:

WDI-4000

Get Latest Price

Basic Info

Model No.	WDI-4000
Brand Name	winson c
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	usb, TTL-232
Max Paper Size	N/A
Optical Resolution	640*480 pix
Scan Speed	350±50 (scans/second)
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Software development kit (SDK)	NO
Product Name	Barcode Reader Module
Connector	0.5-12P FPC
Interface	TTL/USB HID keyboard
Photo sensor	CMOS array sensor
Voltage / Current	DC 3.3V/5V ±10%; Max 450ma
Sensor resolution	640*480 pixels
Print Contrast	>25%UPC/EAN 13(13mil)
Compatibility	Win OS/Mac OS/Linux/Android/IOS/Embedded OS
Dimensions (W X D X H)	25.3x10x21mm
Weight	5.5 g(0.19oz)
Certification	Ce, Rohs

Product description

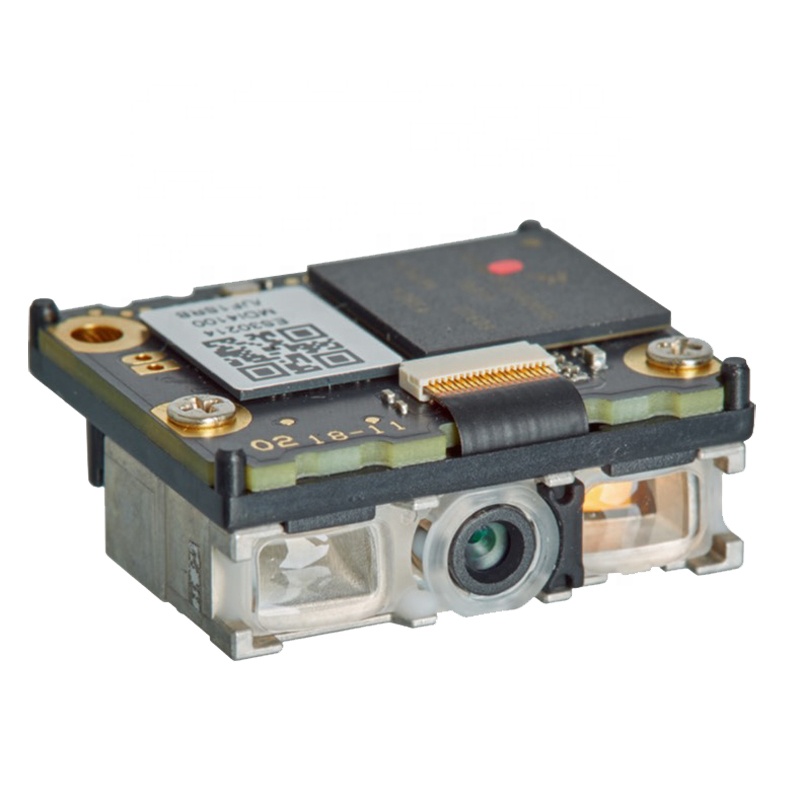

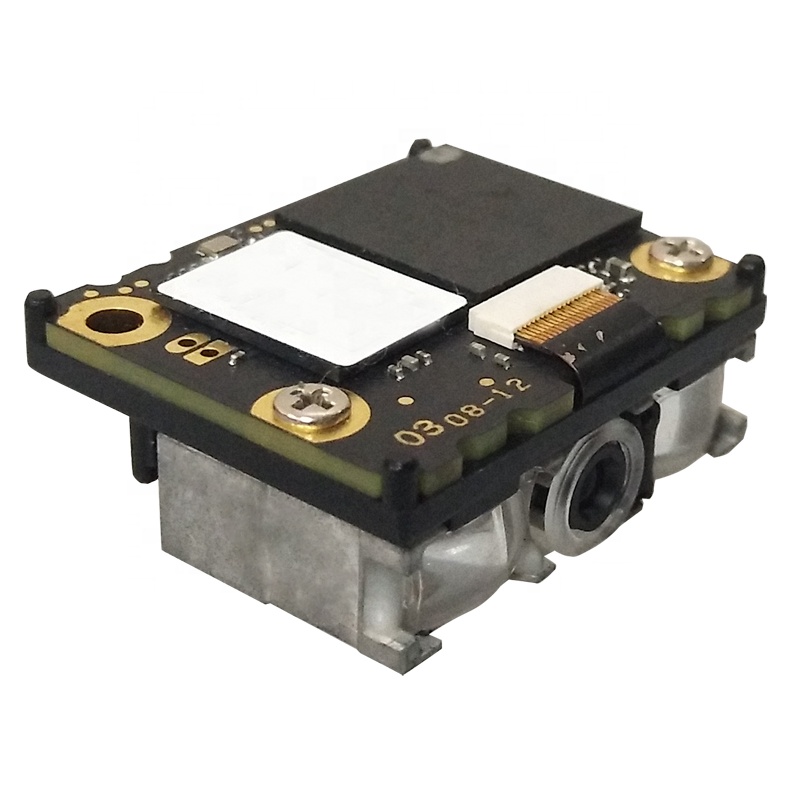

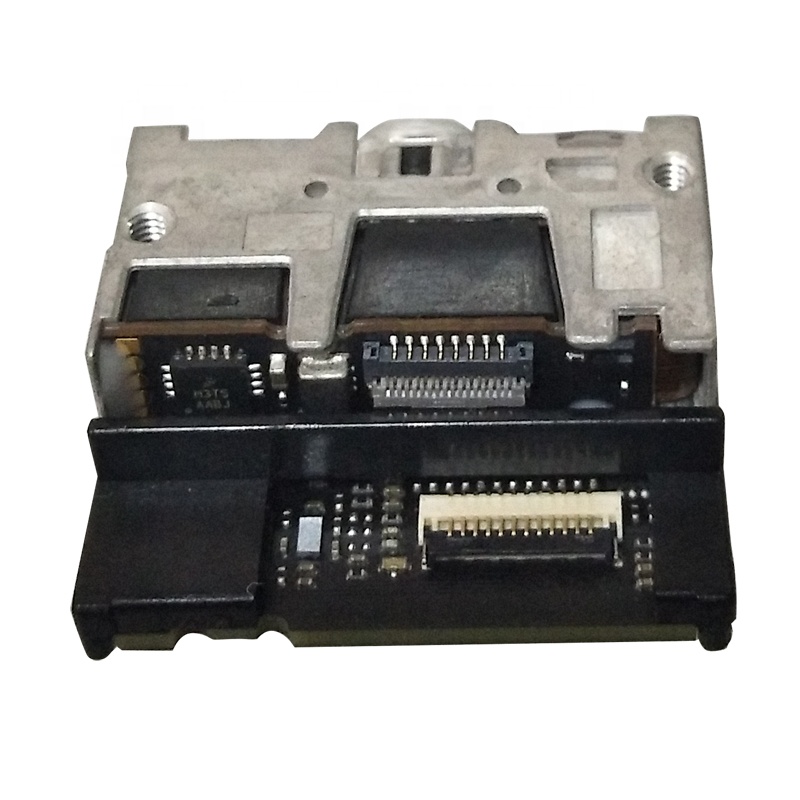

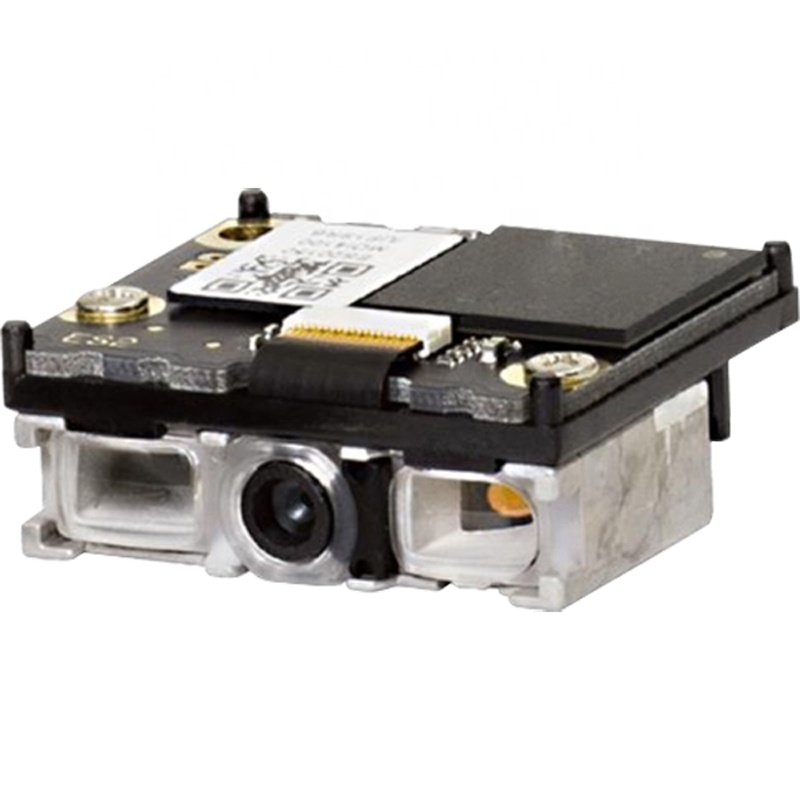

WInson WDI-4000SR Mini CMOS Code Reader Module High Performance PDF417 CCD FIX-MOUNTED SCANNER

2d Fixed Mount Barcode Scanner Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10 Fix- Mounted Scanner.

Wide Range Bar Code Reader Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc Barcode Scanner For Warehouse.

Embedded Scanner Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

Barcode Scanner For Warehouse Winson Passport Mrz Code Reader Embedded Mini Barcode Scanners Module for Wholesale

winson company

Product Detail

Technical Parameters
Electrical Characteristics
Interface	TTL/USB HID keyboard
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V / 5V ±5%
Current consumption	Max: 450mA (3.3V) ; Max: 320mA (5.0V)
Optical Characteristics
Photo sensor	CMOS array sensor
Sensor resolution	640*480 pixels
Light source	white LED*1
Aim light source	Green Bar LED
Performance Characteristics
Scan rate	30fps
Decode angle	Pitch angle:±65° Skew angle ±65° Tiltangle±180°

Min resolution	1D:5mil(0.127mm) 2D:10mil(0.25mm)
Min.PCS value	>30%UPC/EAN 13(13mil)
Field of View	38°(H),29°(V)
Language	multiple languages
Identification	1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D:Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Physical Characteristics
Dimension	25.3 mm x 10 mm x 21mm(LWH)
Weight	5.5g
Configurations	Decode
Environmental Characteristics
Temp	0°to 50°C (operation) -10°-to 60°C (storage)
Humidity	20 - 85% (operation) ) 5 - 95% (storage)
