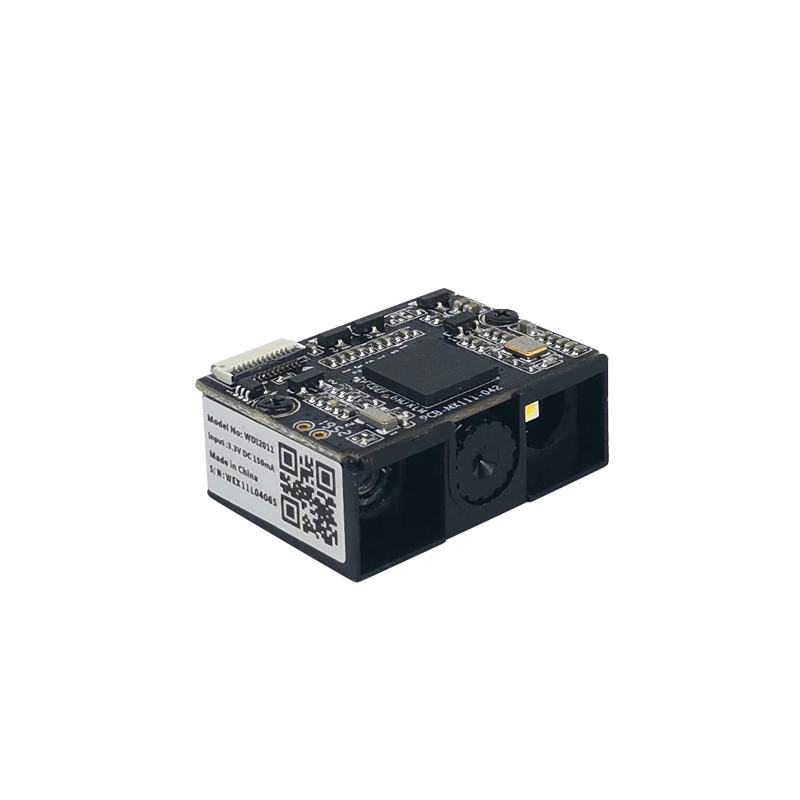

Mini Barcode Scanner Module QR Code Scanner

$49.90

≥1 Others
$45.90

≥50 Others
$34.90

≥500 Others

Options:

WDI-2011

Get Latest Price

Basic Info

Model No.	WDI-2011
Brand Name	WIINSON
Certification	Ce, Other
product status	Stock
Types of	Barcode Scanner
Scanning element type	Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Private Mold	Yes
Products Status	Stock
Type	2D Barcode Reader Module
Scan Element Type	2D
Colour Depth	32 Bit
Interface Type	usb, TTL-232/USB
Max Paper Size	N/A
Optical Resolution	1280X800 pixels
Scan Speed	60fps
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Return and Replacement, Call Center and on-line Technical Support
Software development kit (SDK)	NO
Color	Black
Product Name	2D Barcode Reader Module
Interface	TTL-232/USB
Photo sensor	COMS array sensor
Connector	0.5-12P FPC
Min resolution	1D:4mil(0.101mm) 2D:7mil(0.178mm)
Aim light source	Red LED
Field of view	54°(H),33°(V)
Language	Multiple languages
Certification	Ce,Rohs

Product description

Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,PDA,etc.

view more >>Related Products

Product Description

Specification

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V±5%
Current Consumption	Max:250mA
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	1280X800pixels
light source	white LED*1
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°
Min resolution	1D:4mil(0.101mm) 2D:7mil(0.178mm)
Min.PCS value	〉20%UPC/EAN 13（13mil）
Field of View	54°(H),33°(V)
Language	multipl languages
Identification	1D:UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32； Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of 5； Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited； Composite Code-A；Composite Code-B；Composite Code-C； 2D:PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec； MaxiCode
Dimensions	28mm x 20mm x 10.5mm(LWH)
Configurations	Decode
Temp	-20° - 50°
