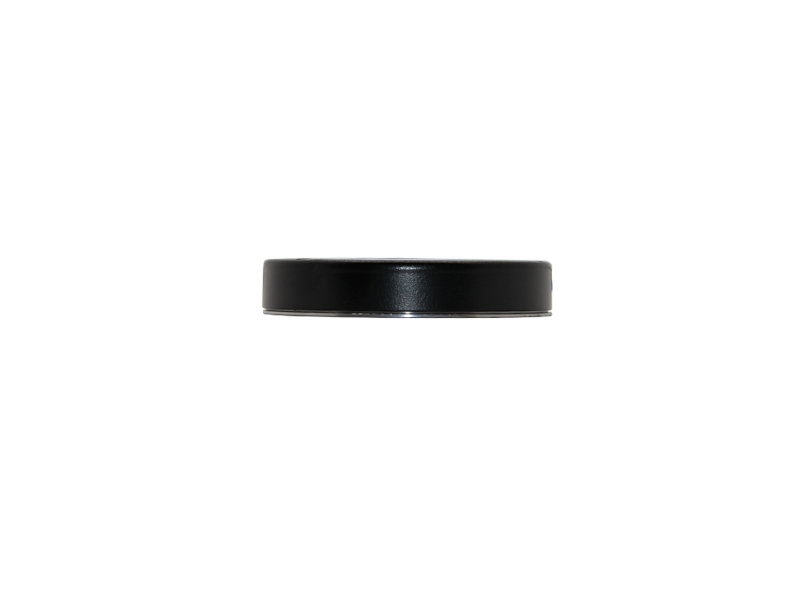

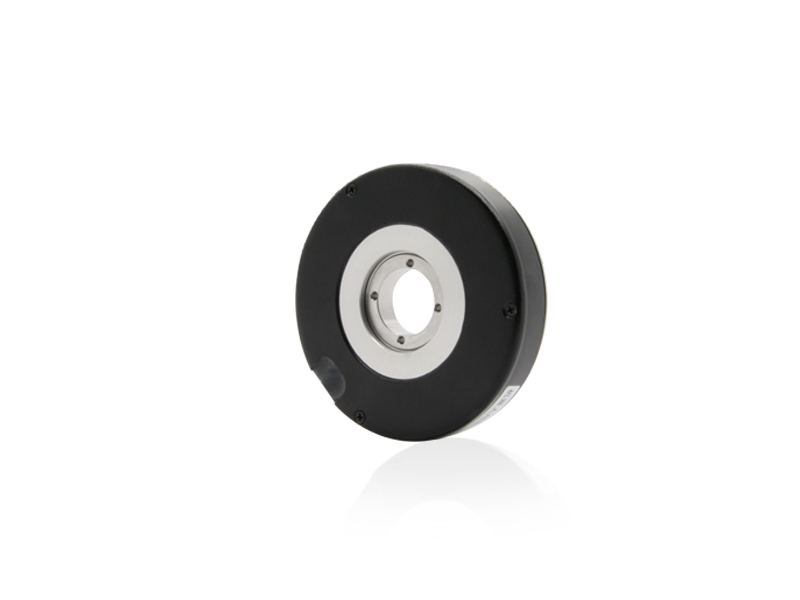

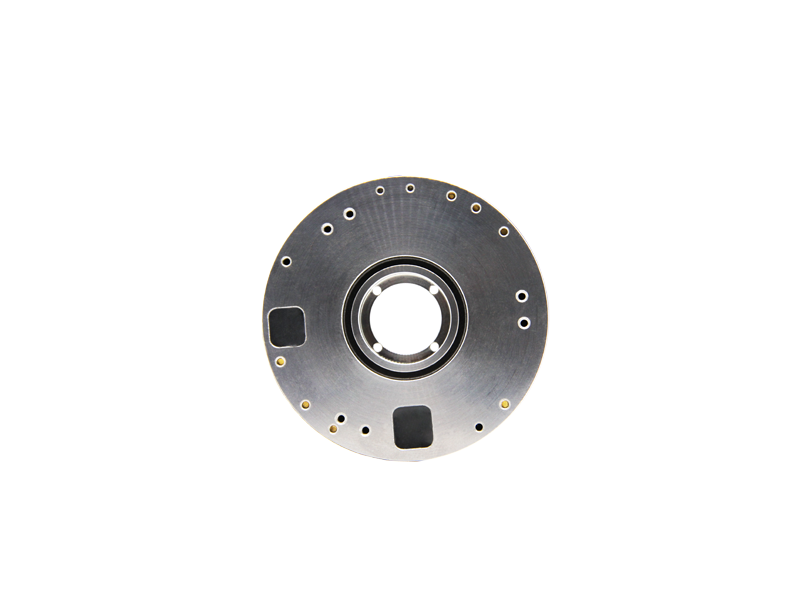

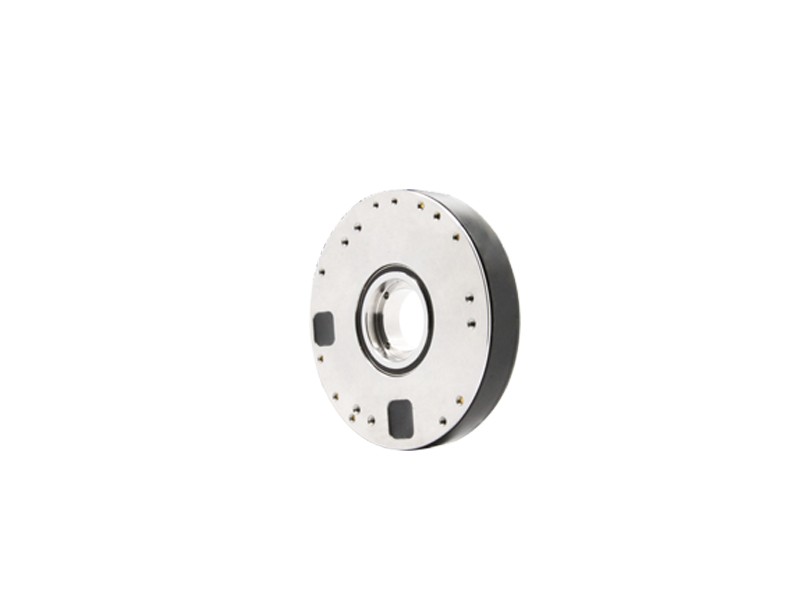

Bldc motor encoder encoder
Options:
- Shaft size /aperture ：/27
- Max. rotate speed： 6000
- Max. shaft load Axial / Radial ： 10/10
- Max. resolution ：221
- Supply voltage ：5
Basic Info
| Model No. | JKR-1 |
|---|---|
| Brand Name | Yuheng |
| Application | robot、automation |
| Feature | thin、high resolution、 |
| Model | JKR-1 |
| Dimension | φ85*16 |
| Shaft type | hollow shaft |
Product description
The main working principle of the pair encoder is photoelectric conversion, but its output is digital quantity. There are several concentric code channels on the code disk of the absolute encoder. Each code channel is composed of transparent and opaque sector sections. The number of code channels is the binary number of the code disk where it is located. The light source and photosensitive element are located on both sides of the code plate. The different position of the code plate will lead to the light The position of the code disk can be judged by the output binary number because of the different light conditions of the sensor.
| Application | robot、automation |
| Feature | thin、high resolution、 |
| Model | JKR-1 |
|
|
|
|
Mechanical parameter |
|
| Dimension | φ85*16 |
|
Shaft type |
hollow shaft |
|
Shaft size /aperture |
25/27 |
|
Max. rotate speed |
6000 |
|
Max. shaft load Axial / Radial |
10/10 |
|
Operating temperature |
-20～+85 |
|
Protection level |
IP40 |
|
Connection type |
Spring Plate |
|
Max. resolution |
221 |
|
Electrical parameter |
|
|
Output pattern |
SSI,BISS |
|
Supply voltage |
5 |
| Response frequency / Response rate |
≤10（BISS） ≤4（SSI） |
|
|
|
|
Optional |
|
Bldc motor encoder encoder
Options:
- Shaft size /aperture ：/27
- Max. rotate speed： 6000
- Max. shaft load Axial / Radial ： 10/10
- Max. resolution ：221
- Supply voltage ：5
