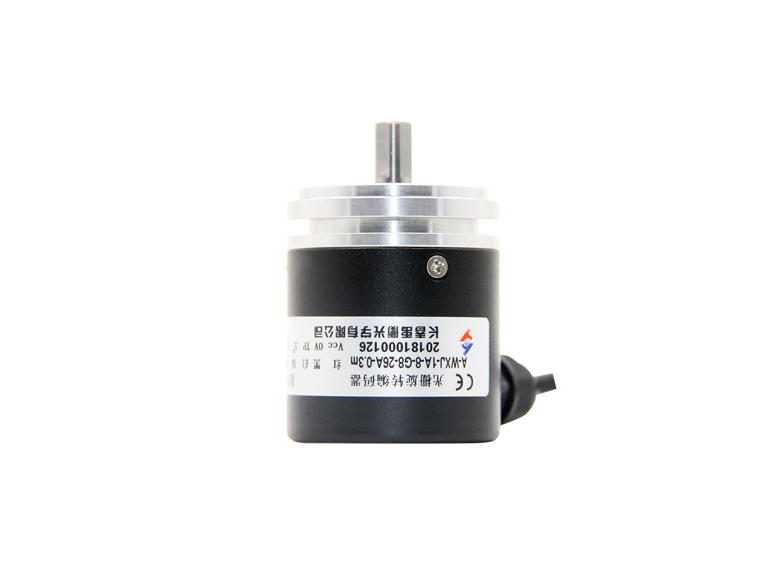

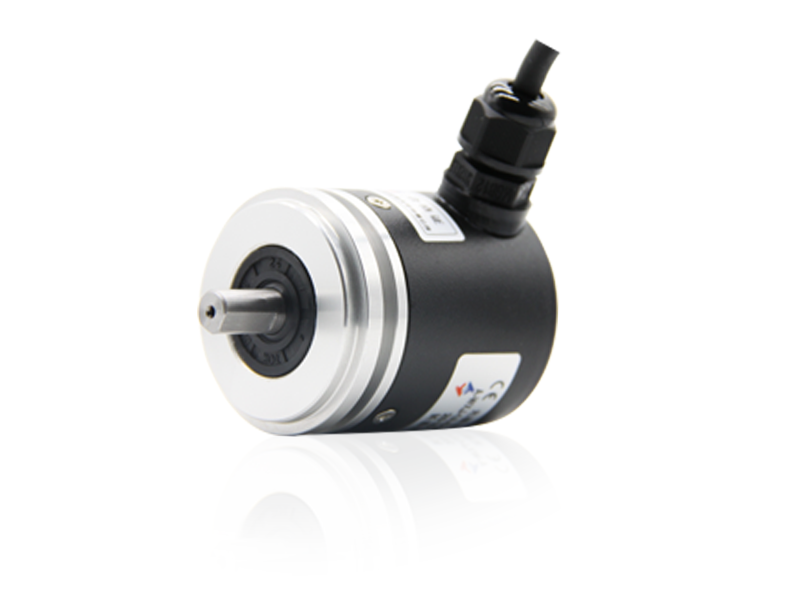

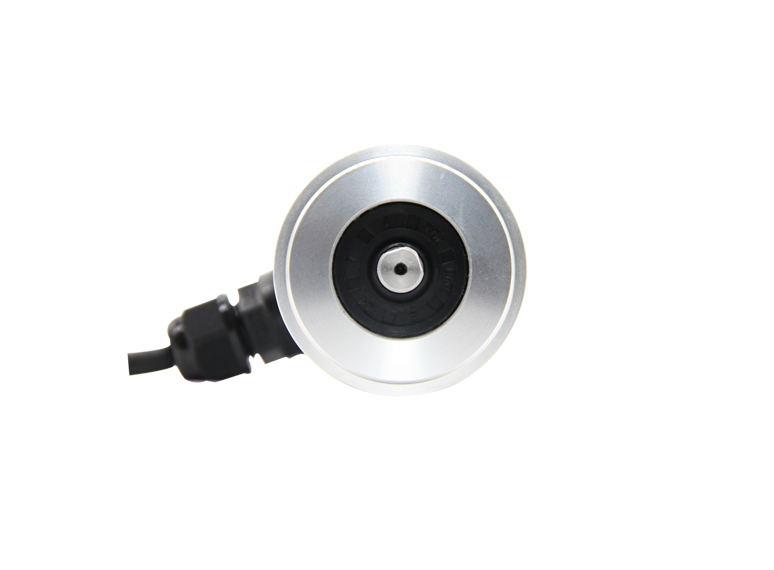

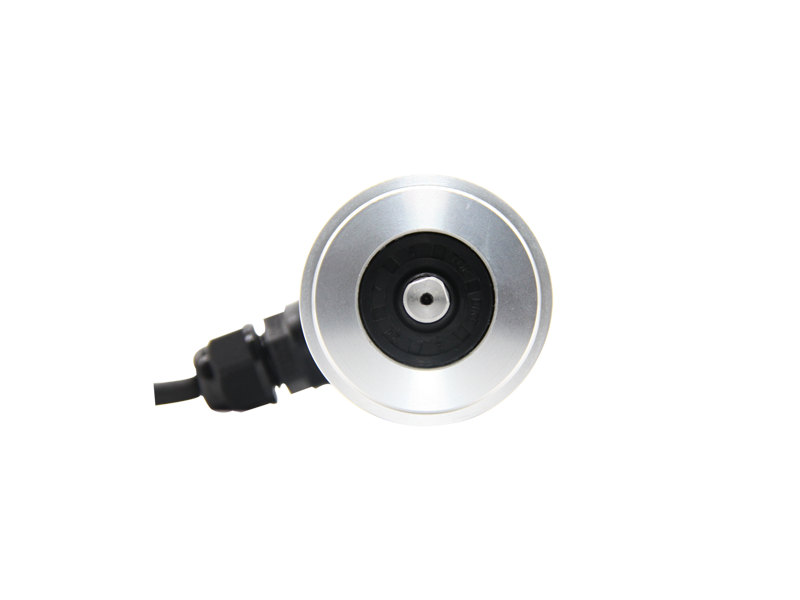

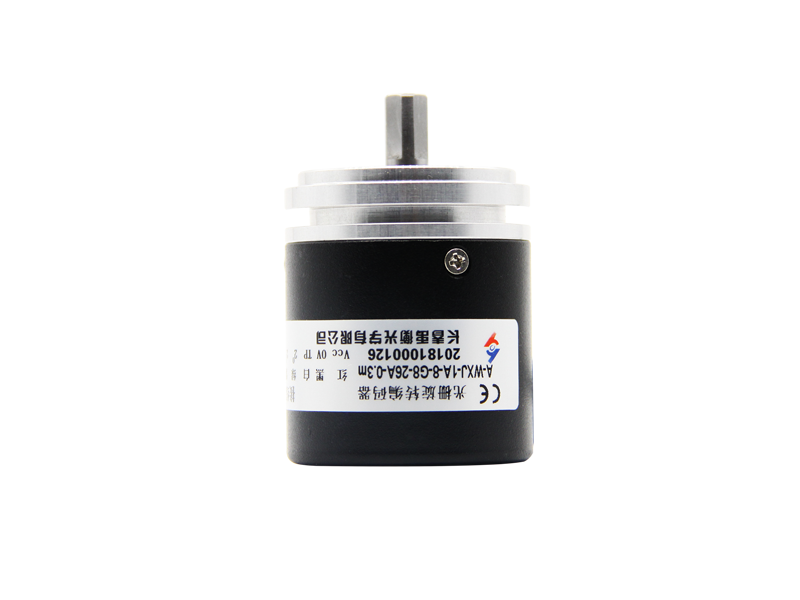

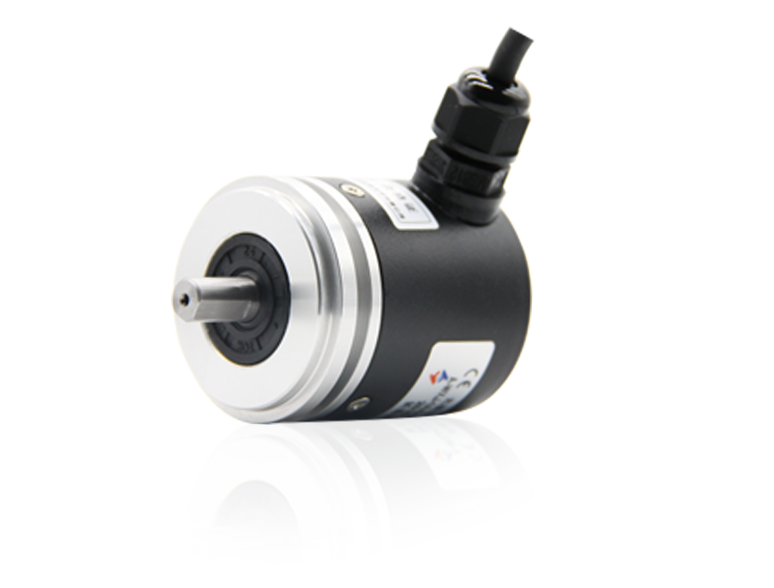

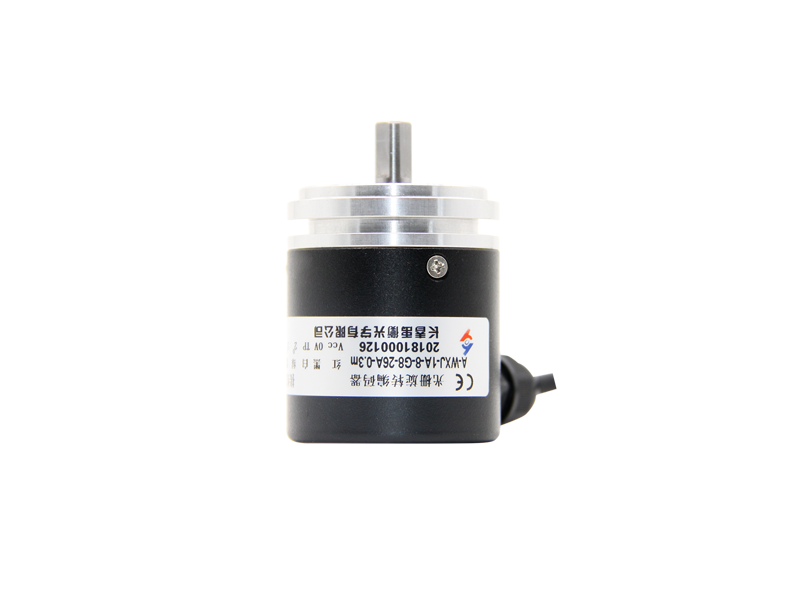

Capacitive linear encoder encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed :［r/min］ 5000
- Max. shaft load Axial / Radial : ［N］ 10/20
- Operating temperature :［℃］ -20～+85
- Protection level : IP65
- resolution :［P/r］ 8
Basic Info
| Model No. | A-WXJ-1A |
|---|---|
| Brand Name | Yuheng |
| Application | Rotating knife holder |
| Feature | small 、light weight、shock resistance |
| Model | ［unit］ A-WXJ-1A-8-G8～26A |
| Dimension | ［mm］ φ45*67 |
| Shaft type | Solid shaft |
Product description
Classification by encoder mechanical installation form(1) Shaft type: shaft type can be divided into clamping flange type, synchronous flange type and servo installation type.(2) Shaft sleeve type: shaft sleeve type can be divided into half empty type, full empty type and large diameter type.
Application
Rotating knife holder
Feature
small 、light weight、shock resistance
Model
［unit］
A-WXJ-1A-8-G8～26A
Mechanical parameter
Dimension
［mm］
φ45*67
Shaft type
Solid shaft
Shaft size /aperture
φ［mm］
8
Max. rotate speed
［r/min］
5000
Max. shaft load
Axial / Radial
［N］
10/20
Operating temperature
［℃］
-20～+85
Protection level
IP65
Connection type
Rabbet-positioning
Coupling joint
resolution
［P/r］
8
Electrical parameter
Output pattern
Push-pull
Supply voltage
DC［V］
5～26
Response frequency / Response rate
［KHz］
0～1
Optional
Capacitive linear encoder encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed :［r/min］ 5000
- Max. shaft load Axial / Radial : ［N］ 10/20
- Operating temperature :［℃］ -20～+85
- Protection level : IP65
- resolution :［P/r］ 8
