CE Certificated Multipurpose Woodwork Edge Binding Machine

Overview:

In the process of panel furniture production, edge banding is one of the most important processes, and the quality of edge banding directly affects the final effect of panel furniture. In the process of panel edge sealing, the adhesion between the adhesive and the edge band has a great influence on the overall effect of furniture edge sealing. At present, the most common method on the market is to use hot melt adhesive process for edge banding. In addition, laser edge banding technology has gradually entered the furniture edge banding market as a new type of sealing plate technology emerging in recent years. Laser edge banding: The laser aggregates the high-energy laser beam onto the laser edge banding belt through a mirror that swings back and forth. The high-energy laser quickly melts the functional layer of the edge banding band, and then presses the side band through the pressing wheel mechanism. On the workpiece, after cutting, preliminary repair, finishing, tracking rounding and other processes, so as to achieve the purpose of edge banding. Therefore, laser edge banding requires laser edge banding machine and laser edge banding.

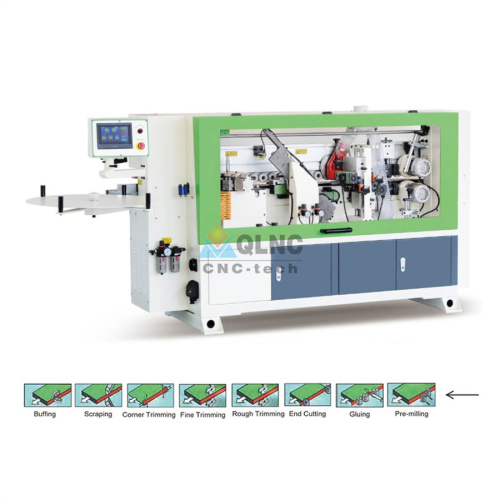

Full-Automatic edge banding machine.

Function: gluing- end cutting- rough trimming- fine trimming- scraping- buffing.

Features :

Rotary control platform
Humanized design, touch screen, 360 degree rotation, simple and fast operation.

Quick thermostatic glue pot
It is mainly to apply the melted glue to the side of the workpiece, and then stick it with the side belt.

Pre-milling
It is composed of two milling tools, which are mainly used to mill the plate with irregular edge.

Rough and fine trimming
The upper and lower edges of the plate are repaired and milled into r-arc-shaped edges.

Corner trimming
It is to mill the four corners of the bonding edge of the plate into an R-arc-shaped,make the plate more beauty.

Scraping
Cut off the rotary wave knife marks left on the edge banding belt trimmed on both sides of the plate.

Advantage:

1. Adopt imported motor and high quality electrical component.

2. Product serialization and diversification is easy for the customer to choose.

3. High precision and work efficiency.

4. Automatic and precise gluing procedure as well as integrated double finish.

5. High strength frame structure, durable

6. Glue evenly, conveying stability

7. The machine is equipped with hand lubricator to reduce wear

Application:
Edge banding machine can realize the multi-process strokes of plate pre-milling, gluing, double guide rails front and rear, rough repair, R1 fine trimming,R2  fine trimming, Corner trimming, scraping, flat scraping, double polishing, etc. Fast and stable, double finishing, more delicate trimming, double polishing, perfect effect.

Configuration parameter:

Type	JXSK450A
Banding tape thickness/épaisseur du ruban adhésif	0.4-3 mm
Banding tape width/Largeur de bande de bande	12-65 mm
Work piece thickness/épaisseur de la pièce de travail	10-60 mm
Work piece length/Longueur de la pièce de travail	>=100 mm
Work piece width/Largeur de la pièce de travail	>=50 mm
Heating power/Puissance de chauffage	1.8 KW
Feeding motor power/Alimentation du moteur	3.7 KW
Pre-milling/Pré-fraisage	0.75 KW x 2
Glue spreading power/Pouvoir d'étalement de la colle	0.75 KW
End trimming power/Fin de la puissance de coupe	0.5 KW x 2
Rough trimming motor power/Puissance du moteur de coupe grossière	0.75 KW x 2
Fine trimming power/Fine puissance de coupe	0.75 KW x 2
Corner rounding motor power/Puissance du moteur d'arrondi d'angle	0.5 KW x 2
Polishing motor power/Puissance du moteur de polissage	0.37 KW x 2
Feeding speed/Vitesse d'alimentation	10-23 m/min
Air pressure/Pression de l'air	0.8 Mpa
Overall dimension/Dimension globale	6200x850x1520 mm
Packing size/Taille d'emballage	6300x880x1580 mm
N.W.	2300 KGS
G.W.	2450 KGS

Samples:

Related Models：

1	MF330C	Gluing, Fine trimming, Buffing.
2	MF330B	Gluing, Fine trimming, Scraping, Buffing.
3	MF330A	Gluing, Rough trimming, Fine trimming, Scraping, Buffing.
4	MF360D	Gluing, End cutting, Fine trimming, Buffing.
5	MF360C	Gluing, End cutting, Fine trimming, Scraping, Buffing.
6	MF360B	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
7	MF360A	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Slotting, Buffing.
8	MF630C	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
9	MF630B	Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
10	MF630A	pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
