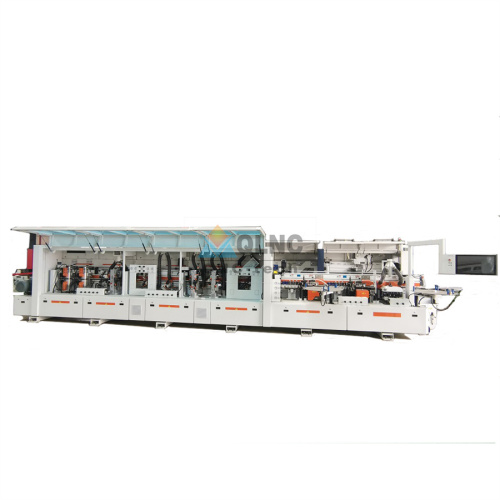

Fully Automatic Wood Edge Banding Furniture Production Line

Overview:

Fully automatic linear edge banding machine, the end face of the board in the panel office furniture after the sawing process must be protected and beautified by the edge banding. The automatic linear edge banding machine is a device that seals and sticks solid wood, PVC and other edge banding materials to the edge of the board. The equipment applies molten hot melt adhesive to the end face of the board, and then presses the edge-sealing material on the board. The hot melt adhesive quickly solidifies to form adhesive force, which combines the edge banding material with the board. After that, it is necessary to go through end cutting, trimming, scraping, polishing, sanding, etc., so that the end face of the plate can be beautifully protected. The automatic edge banding machine can complete the procedures of gluing, edge banding and gluing, front and rear truncation, top and bottom edge, chamfering, squeegee, and sanding in one feeding process on the edge banding machine. Each feeding process can complete a straight edge operation. The continuity of each process is very strong, so the edge banding efficiency is very high. Plates with multiple edges that need to be sealed need to pass through the edge banding machine many times. Generally, they will be conveyed back to the original position by the conveyor roller after passing through the edge banding machine. After changing the direction, the edge banding machine will complete the edge banding again.

Full-Automatic edge banding machine.

Function: gluing- end cutting- rough trimming- fine trimming- scraping- buffing.

Features :

Rotary control platform
Humanized design, touch screen, 360 degree rotation, simple and fast operation.

Quick thermostatic glue pot
It is mainly to apply the melted glue to the side of the workpiece, and then stick it with the side belt.

Pre-milling
It is composed of two milling tools, which are mainly used to mill the plate with irregular edge.

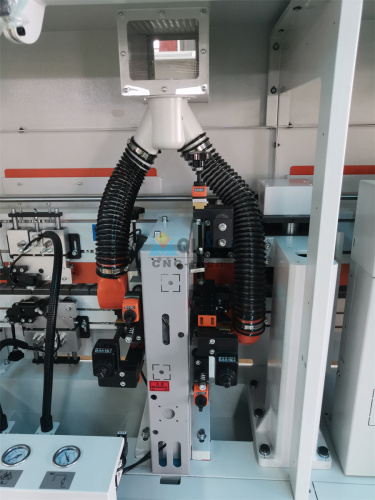

Rough and fine trimming
The upper and lower edges of the plate are repaired and milled into r-arc-shaped edges.

Corner trimming
It is to mill the four corners of the bonding edge of the plate into an R-arc-shaped,make the plate more beauty.

Scraping
Cut off the rotary wave knife marks left on the edge banding belt trimmed on both sides of the plate.

Advantage:

1. Adopt imported motor and high quality electrical component.

2. Product serialization and diversification is easy for the customer to choose.

3. High precision and work efficiency.

4. Automatic and precise gluing procedure as well as integrated double finish.

5. High strength frame structure, durable

6. Glue evenly, conveying stability

7. The machine is equipped with hand lubricator to reduce wear

Application:
Edge banding machine can realize the multi-process strokes of plate pre-milling, gluing, double guide rails front and rear, rough repair, R1 fine trimming,R2  fine trimming, Corner trimming, scraping, flat scraping, double polishing, etc. Fast and stable, double finishing, more delicate trimming, double polishing, perfect effect.

Configuration parameter:

Type	JXSK450A
Banding tape thickness/épaisseur du ruban adhésif	0.4-3 mm
Banding tape width/Largeur de bande de bande	12-65 mm
Work piece thickness/épaisseur de la pièce de travail	10-60 mm
Work piece length/Longueur de la pièce de travail	>=100 mm
Work piece width/Largeur de la pièce de travail	>=50 mm
Heating power/Puissance de chauffage	1.8 KW
Feeding motor power/Alimentation du moteur	3.7 KW
Pre-milling/Pré-fraisage	0.75 KW x 2
Glue spreading power/Pouvoir d'étalement de la colle	0.75 KW
End trimming power/Fin de la puissance de coupe	0.5 KW x 2
Rough trimming motor power/Puissance du moteur de coupe grossière	0.75 KW x 2
Fine trimming power/Fine puissance de coupe	0.75 KW x 2
Corner rounding motor power/Puissance du moteur d'arrondi d'angle	0.5 KW x 2
Polishing motor power/Puissance du moteur de polissage	0.37 KW x 2
Feeding speed/Vitesse d'alimentation	10-23 m/min
Air pressure/Pression de l'air	0.8 Mpa
Overall dimension/Dimension globale	6200x850x1520 mm
Packing size/Taille d'emballage	6300x880x1580 mm
N.W.	2300 KGS
G.W.	2450 KGS

Samples:

Related Models：

1	MF330C	Gluing, Fine trimming, Buffing.
2	MF330B	Gluing, Fine trimming, Scraping, Buffing.
3	MF330A	Gluing, Rough trimming, Fine trimming, Scraping, Buffing.
4	MF360D	Gluing, End cutting, Fine trimming, Buffing.
5	MF360C	Gluing, End cutting, Fine trimming, Scraping, Buffing.
6	MF360B	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
7	MF360A	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Slotting, Buffing.
8	MF630C	Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
9	MF630B	Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
10	MF630A	pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
