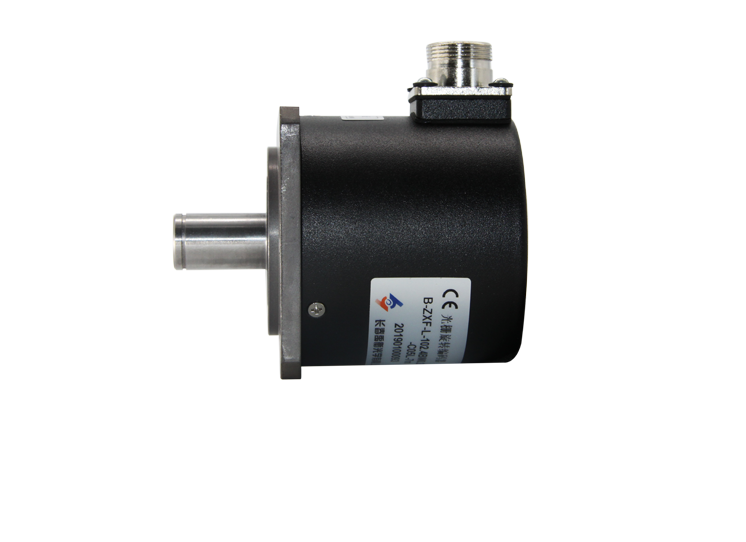

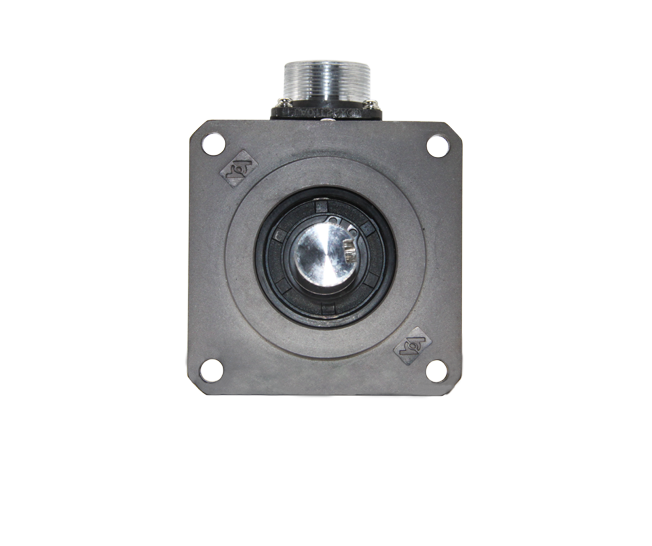

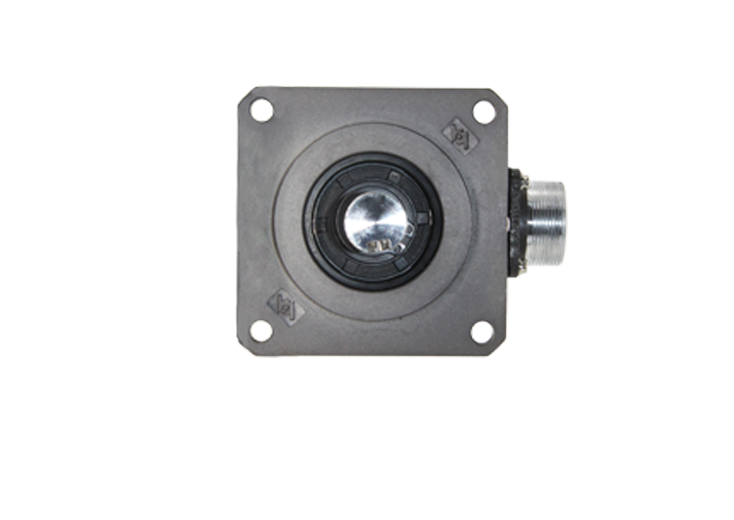

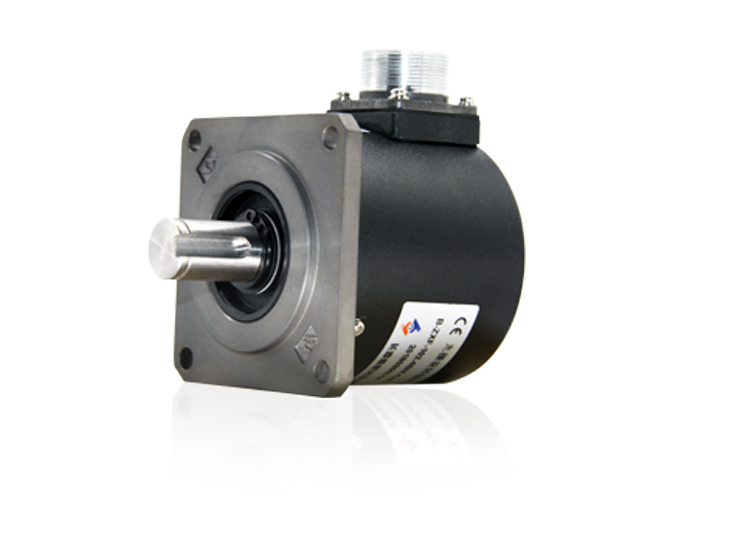

Control logic encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 15
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial? :［N］ 50/50
- resolution :［P/r］ 1024
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 300
Basic Info
| Model No. | B-ZXF-F-L30-102.4BM-C05L |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools、automation、metallurgical industry |
| Feature | high protection level，economical |
| Model | ［unit］ B-ZXF-F-L30-102.4BM-C05L |
| Dimension | ［mm］ Ф66*89 |
| Shaft type | Solid shaft |
Product description
As a relatively important tool, encoder has very important applications in many fields of our production and life. It can transform the signal or data so that it can be used by relevant communication equipment after passing through.
Application
CNC machine tools、automation、metallurgical industry
Feature
high protection level，economical
Model
［unit］
B-ZXF-F-L30-102.4BM-C05L
Mechanical parameter
Dimension
［mm］
Ф66*89
Shaft type
Solid shaft
Shaft size /aperture
φ［mm］
15
Max. rotate speed
［r/min］
6000
Max. shaft load
Axial / Radial
［N］
50/50
Operating temperature
［℃］
-20～+85
Protection level
IP65

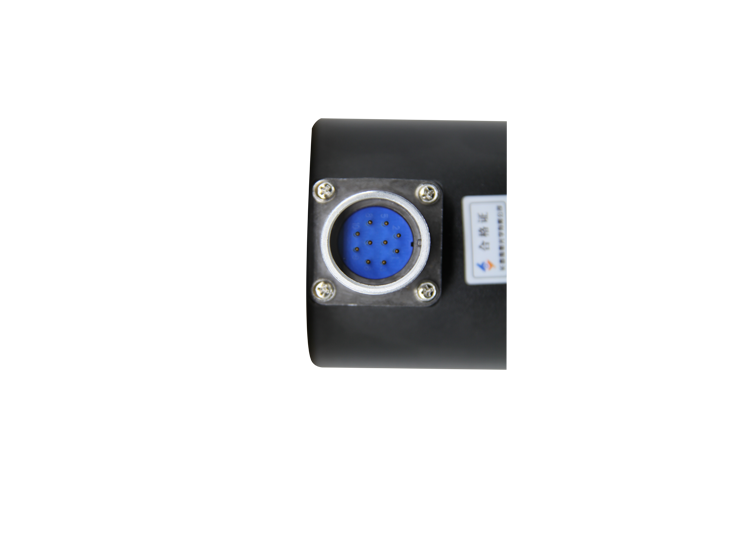

Connection type
Coupling
resolution
［P/r］
1024
Electrical parameter
Output pattern
Line driver
Supply voltage
DC［V］
5
Response frequency / Response rate
［KHz］
300
Optional
Control logic encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 15
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial? :［N］ 50/50
- resolution :［P/r］ 1024
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 300
