Cylinder high accurate bottle cap pad printer machine

Video

1 / 7

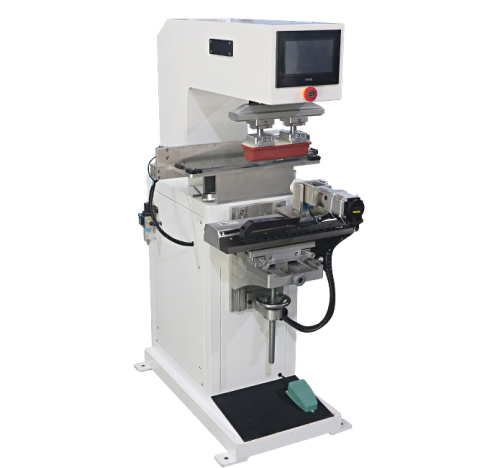

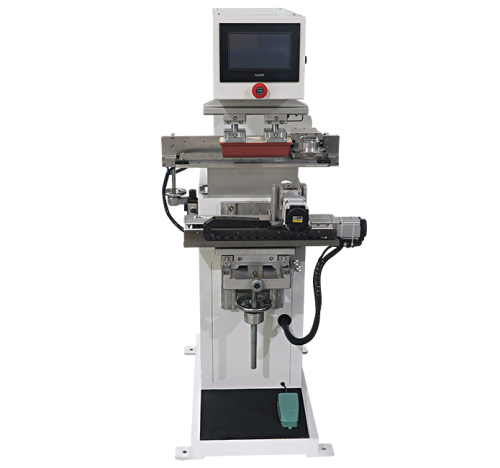

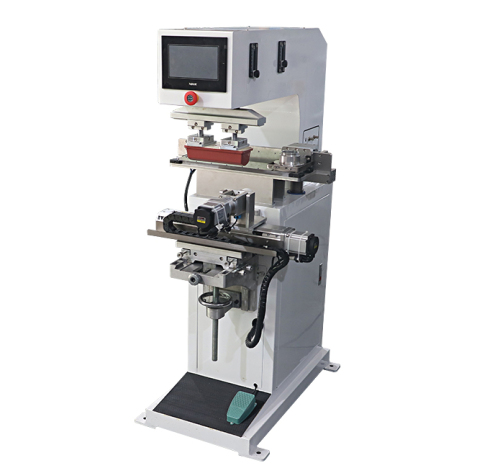

Cylinder high accurate bottle cap pad printer machine

$4250.00

≥1 Set/Sets

Model:

P1-412CRRS

Get Latest Price

You might also like

Cylinder high accurate bottle cap pad printer machine

1 Set/Sets (MOQ)

High accurate full servo pad printing machine

1 Set/Sets (MOQ)

Pad printer with shuttle sealed cup

1 Bag/Bags (MOQ)

PLC sealed cup pad printer with clean device

1 Set/Sets (MOQ)

pad printer with pad-clean device

1 Set/Sets (MOQ)

Servo Automatic pad printer with pad clean syetm

1 Set/Sets (MOQ)

High Quality Pad Printer for Promotion Items

1 Set/Sets (MOQ)

High Precision Pad Printer with Slide Closed Cup

1 Bag/Bags (MOQ)

Precision Pad Printer for girls makeup nails

1 Bag/Bags (MOQ)

Sealed cup pad printer for electron parts

1 Set/Sets (MOQ)

Basic Info

Model No.	P1-412CRRS
Brand Name	KC
species	Pad Printer
Applicable industry	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia
Showroom location (in which countries are there sample rooms overseas)	Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Hot Product 2019
Core component warranty period	1 Year
Core components	Plc, Gearbox, Gear
status	New
Type of printing plate	Gravure
place of origin	China
use	Label Printer, Bill Printer
degree of automation	Semi-Automatic
Printing color number and surface number	Single Color
warranty period	1 Year
Core selling point	Sustainable
Transmission Type	Single-Colour Pad Printer
Automatic Grade	Semi-Automatic
Speed（pcs/hr）	1100
Printing Nmber	1
Table Area	200*125mm
Plate Type	10 Mm Thick Steel Plate.
Compress Air	5-7 Bar
Power	1 Phase 220V
Printing Area	130×50mm
Steel Plate size	100*100mm

Product description

One Color??Curved Pad Printing Machine

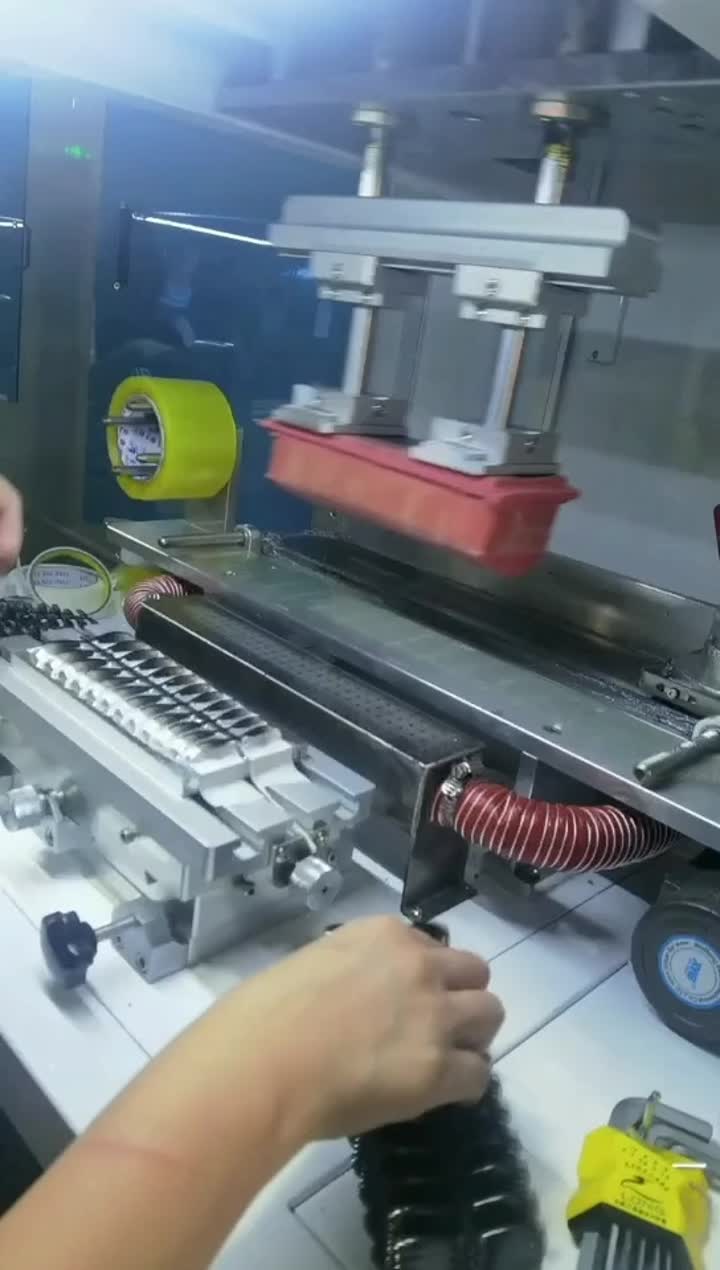

?? ? ?Pad printers are not good at printing cylindrical objects, but that doesn't mean they can't be used. If it's troublesome to use a screen printer to print some products, you can consider using a curved pad printer. The design of the curved pad printer is inspired by the curved screen printer, which is to keep the curved object rotating when the rubber head is pressed down to contact the product. The main features of the curved pad printer:

?Use a horizontal scraping oil cup pad printer-This allows for longer printing;
?Use full servo control to ensure the accuracy of the printed pattern
Use a touch screen panel to make the setting of various parameters faster and more convenient.

Currently, the more mature curved pad printers are of the following types:

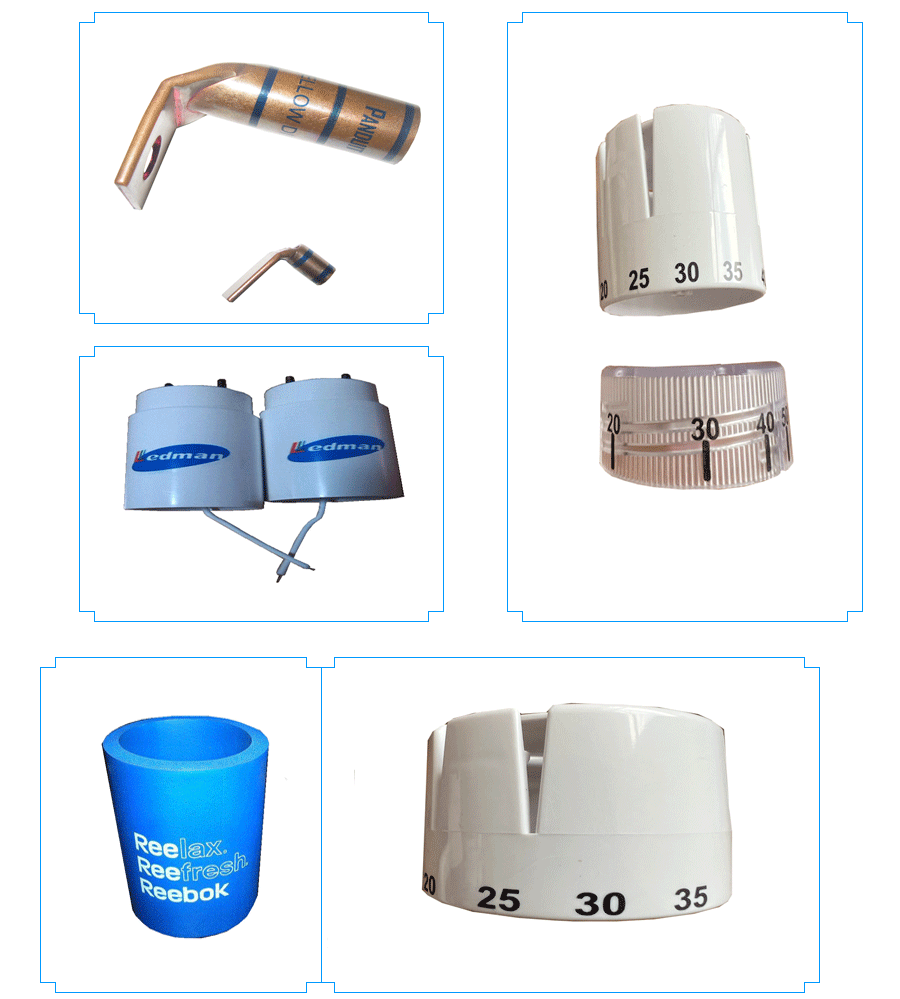

Cable connector curved pad printer;
Functional bottle caps curved pad printer;
Heel curved pad printer;
Wine glass curved pad printer

Description?

One color cylinder pad printer //Structure
Working table	shuttle-style ?working table , suitable for cylinder pad printing
Ink supply system	Open inkwell-type system
Plate type?	10mm Thick steel plate.?
Pad dropping control	Simple-cylinder , simultaneously pressing
One color cylinder pad printer//Usage and characters
Guide	With Open inkwell?to store ink, ?ink adjustment more convenient, more suitable for striking observation. With coin aluminum structure ensure more stabilization and long life. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples; Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection; Self-balanced scraping ink technology, squeegee clean, easy to replace? Rubber pad keeping press with products for cylinder pad printing.???
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
One color cylinder pad printer //Parameter
Technical parameters	P1-412CRRS?
	Plate area:100×300mm; Table area:200×125mm; Max printing speed:500pcs/h; Colour number:1; Max Printing area: 80×130mm. Products max diameter: 50mm

Machine details-Advantage

Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
shuttle table for suitable for cylinder objects;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Open inkwell?ink system, ink adjustment more convenient, more suitable for striking observation;
Temporary shutdown can prevent the ink to dry within the inkwell?with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.
