Precision Pad Printer for girls makeup nails

Video

1 / 8

Precision Pad Printer for girls makeup nails

$8257.00

≥1 Bag/Bags

Model:

P2-410DC

Get Latest Price

Model No.	P1-420CPSC
Brand Name	KC
species	Pad Printer
Applicable industry	Home Use, Energy &Amp; Mining, Food Shop, Food &Amp; Beverage Shops, Printing Shops
Out-of-warranty service	Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets)	Japan, Chile, Malaysia, Uae, Australia, Colombia, Morocco, Algeria
Showroom location (in which countries are there sample rooms overseas)	Indonesia, Thailand, Pakistan, Morocco, India, Argentina
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Hot Product 2019
Core component warranty period	1 Year
Core components	Engine
status	New
Type of printing plate	Gravure
place of origin	China
use	Paper Printer, Cloths Printer
degree of automation	Automatic
Printing color number and surface number	Two Colors
warranty period	1 Year
Core selling point	Sustainable
Color & Page	Two-Colour
Tone	Double Color
Transmission Type	Double-Color Pad Printer
Automatic Grade	Semi-Automatic
Speed（pcs/hr）	1400
Steel Plate size	100*200mm

Closed cup? servo pad printer for fake nails

? ? ??Nails are the peripheral of a Girl s expression. Several beautiful women in ancient civilizations like to use a variety of pigments to paint nails to distinguish their aristocratic identity. Today, nails have become the fashion trend of ordinary women to show charm. In view of the damage to the nails itself, it is rarely used in modern times. It is replaced by wearing pseudo -nails. Pseudoma can be decorated with pigments or decorative by transplanting. Fake nails are made of plastic products with similar nail shapes in injection molding. They can be adhered to the nails to beautify and not harm the nails itself. In stage performances, the wearing of fake nails will also play a role in simulating animal image and shaping the image of special characters.
? ? ? Although the fake nails are small, the shape is complicated. In the visible report, the pad printer is the only mechanical that can be directly printed. It uses a soft and deformable printing pad to achieve anastomical printing on the surface of the false nail. The pad printer is controlled by a servo motor. The pressure and strokes of pad printing can be accurately set and controlled. The pad printer uses PLC and touch screen operations, which is easy to achieve data -based parameter management.

P1-420CPSC One color pad printing machine with lateral movement cup //Structure
Working table	Standard working table with 3-size adjustment
Ink supply system	Closed -type system
Plate type and size	0.3mm Thin steel plate. Size ：100*500mm.
Pad dropping control	Simple-cylinder , simultaneously pressing
P1-420CPSC One color pad printing machine //Parameter
Technical parameters	Max. steel plate: 100 ×500mm； Ink cup size: Ф90mm； Max. printing area :50×380 mm ； Printable color quantity:1； Max. printing speed: 1000 pcs/h; Table size: 165*500mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size:1.270×0.570×1.470m; Gross weight: 176Kg; CBM: 1.064133
H.S.Code	8443198000
Certicate	CE

Machine structure-Advantage

Sealed cup move from right to left and fit for printing long objects;
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

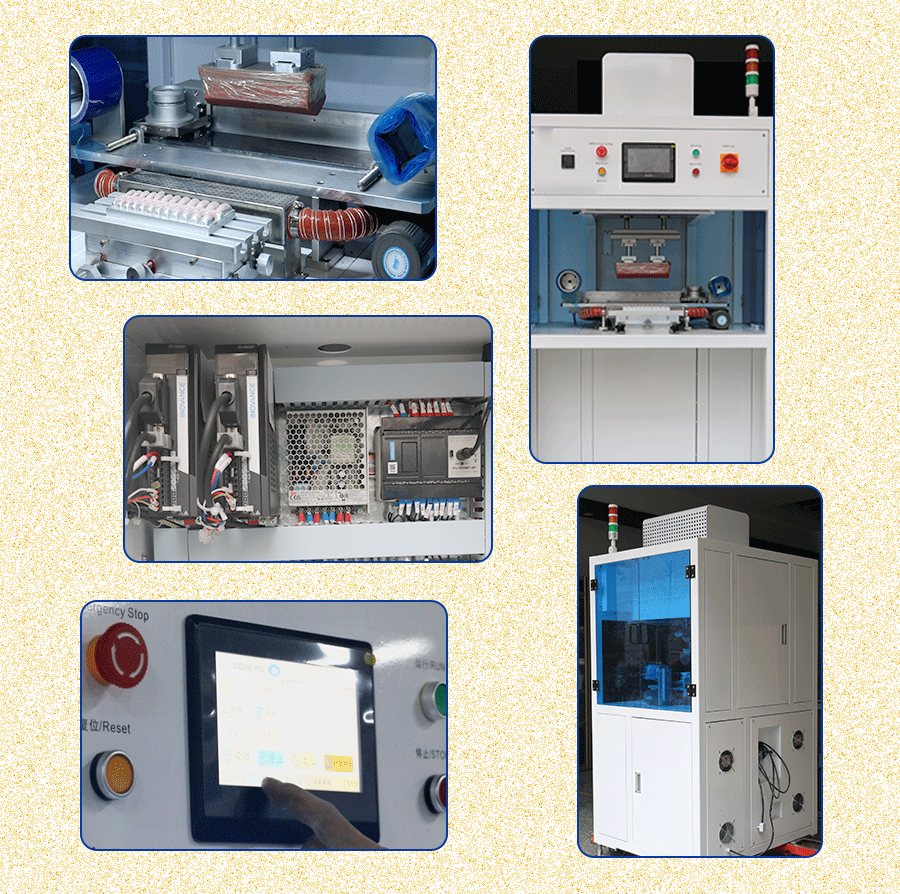

Machine details

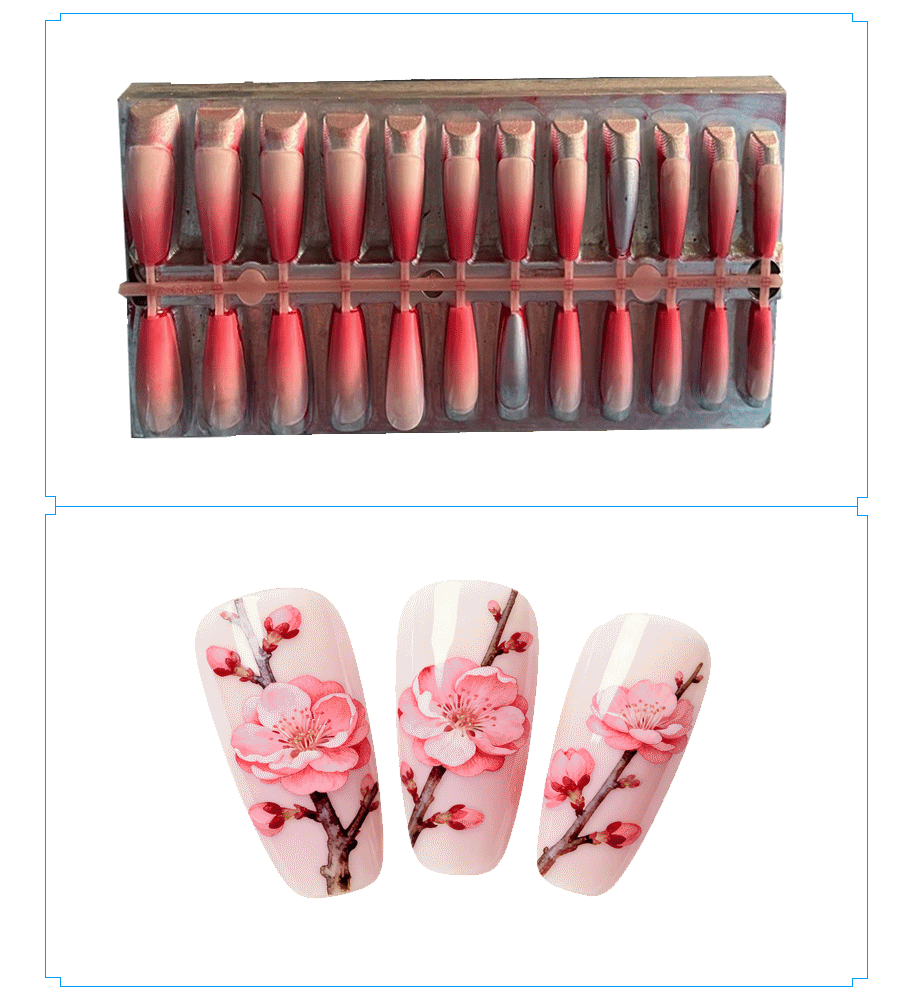

False nails

? ? ?False nails are artificial substitutes for nails, usually made of plastic, acrylic, gel and other materials, used to cover or extend natural nails. Wearing false nails is used to change the length and shape of nails, or as a base for nail decoration, making nails look longer and more beautiful. They are widely used in daily life and actors' filming process.

Why are false nails printed with a pad printer?

? ? ? The appearance of false nails simulates the shape of nails, and the surface is curved and smooth, irregular. Pad printing can accurately simulate the appearance of false nails to transfer pictures and texts:

False nails are usually small in size and have a curved surface. The rubber head of the pad printer can flexibly fit its curved surface and transfer the pattern completely and clearly.

False nails are made by injection molding machines. In order to improve the efficiency of pad printing, they are usually printed in batches, that is, the false nails of the same shape are fixed with a clamp and arranged in order. 10-20 products can be printed in sequence, which greatly improves production efficiency.

The pad printer for fake nails can use single color or multi-color, but single color is more common. The pad printer can use a horizontal scraping pad printer with a steel plate area of 100*500mm. The pattern is arranged according to the spacing of the fake nails on the fixture to achieve precise alignment printing.

The nail ink used by the pad printer is becoming more and more environmentally friendly, and the adhesion to the fake nails is getting better and better, and the damage to the skin is almost negligible.
