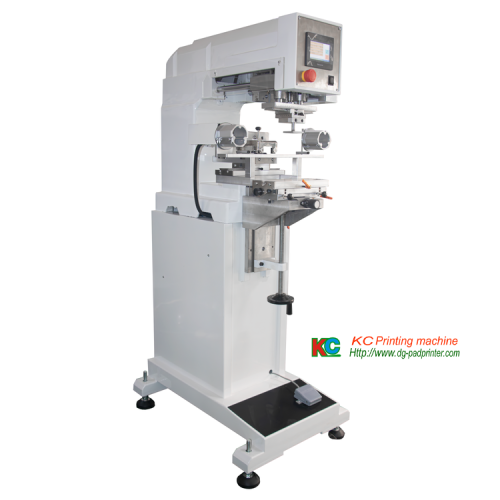

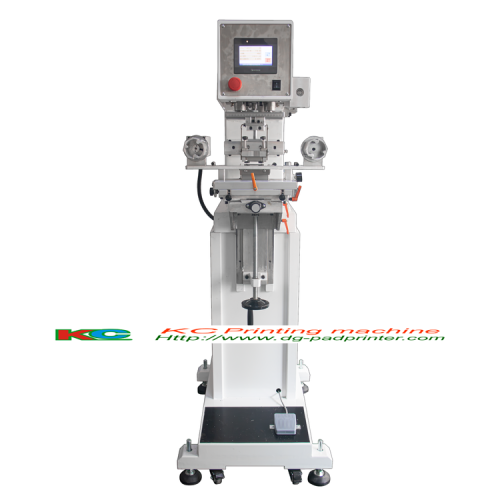

Servo Automatic pad printer with pad clean syetm

Model:

Get Latest Price

You might also like

1 Set/Sets (MOQ)

1 Set/Sets (MOQ)

1 Bag/Bags (MOQ)

1 Set/Sets (MOQ)

1 Set/Sets (MOQ)

1 Set/Sets (MOQ)

1 Set/Sets (MOQ)

1 Bag/Bags (MOQ)

1 Bag/Bags (MOQ)

1 Set/Sets (MOQ)

Basic Info

Model No.	P1-410CP
Brand Name	KC
species	Pad Printer
Applicable industry	Garment Shops, Machinery Repair Shops, Restaurant, Food Shop, Energy &Amp; Mining, Advertising Company
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Brazil, Indonesia, Mexico, Thailand, Australia, Argentina, Uae
Showroom location (in which countries are there sample rooms overseas)	Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka, Bangladesh, South Africa
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Hot Product 2019
Core component warranty period	1 Year
Core components	Plc, Engine
status	New
Type of printing plate	Gravure
place of origin	China
use	Tube Printer
degree of automation	Semi-Automatic
Printing color number and surface number	Single Color
warranty period	1 Year
Core selling point	High-Accuracy
Transmission Type	Single-Colour Pad Printer
Automatic Grade	Semi-Automatic
Steel Plate size	100*200mm
Speed（pcs/hr）	1400
Printing Nmber	1
Worktable	Standard Working Table With 3-size Adjustment
Plate Type	10 Mm Thick Steel Plate.
Compress Air	5-7 Bar
Power	1 Phase 220V
Printing Area	85×130mm
G.W.	188Kg

Product description

Samples

Details

Description

P1-408CP	P1-410CP
Max. steel plate: 100 ×200 mm; Ink cup size: Ф90 mm; Max. printing area :80×80 mm ; Printable color quantity:1; Max. printing speed: 1300 pcs/h.	Max. plate size: 100×250 mm; Ink cup diameter: Ф90 mm; Max. printing area: 80×130 mm; Max. printing speed: 1100 pcs/h; Printable color quantity:1;

Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
