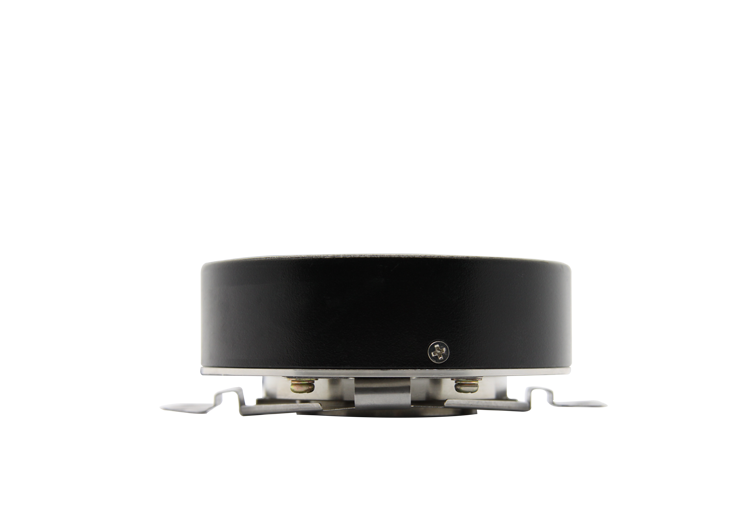

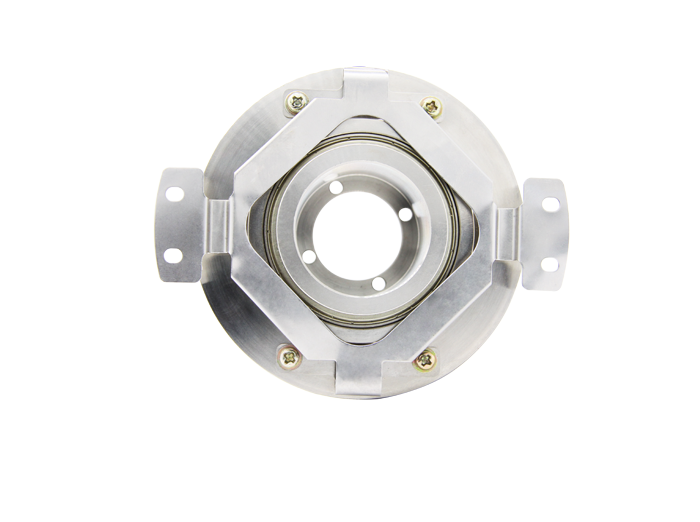

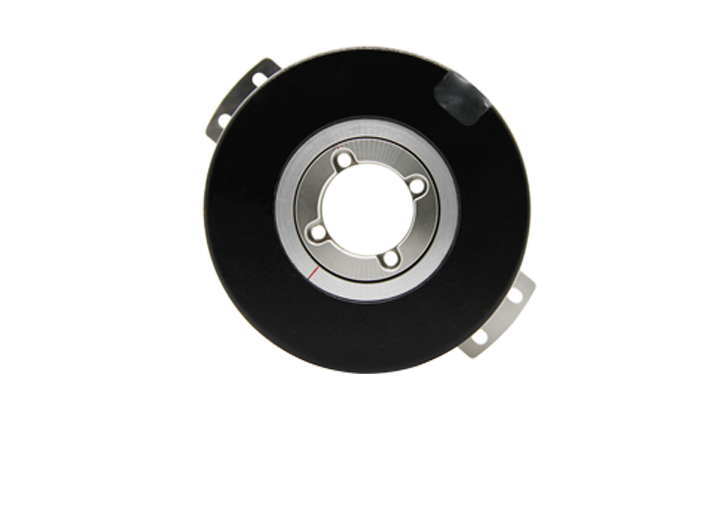

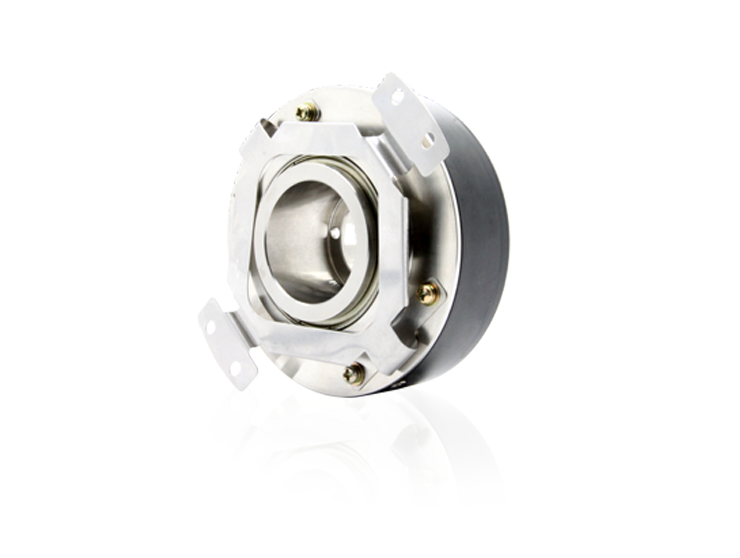

Digital logic encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 35
- Max. rotate speed: ［r/min］ 1200
- Max. shaft load Axial / Radial :［N］ 10/20
- Operating temperature :［℃］ -40～+85
- resolution :［P/r］ 224
- Response frequency / Response rate :［KHz］ 10
Basic Info
| Model No. | JKW-6E-H35-24PB-G05BL |
|---|---|
| Brand Name | Yuheng |
| Application | High precision measurement、high precisionturntable and other precision instruments |
| Feature | high precision |
| Model | ［unit］ JKW-6E-H35-24PB-G05BL |
| Dimension | ［mm］ φ90*36 |
| Shaft type | hollow shaft |
Product description
The encoder is a rotary sensor that converts the rotation displacement into a series of digital pulse signals. These pulses can be used to control the angular displacement. If the encoder is combined with a gear pin or screw screw, it can also be used to measure linear displacement.
| Application | High precision measurement、high precisionturntable and other precision instruments | |
| Feature | high precision | |
| Model | ［unit］ | JKW-6E-H35-24PB-G05BL |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ90*36 |
|
Shaft type |
hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 35 |
|
Max. rotate speed |
［r/min］ | 1200 |
|
Max. shaft load Axial / Radial |
［N］ | 10/20 |
|
Operating temperature |
［℃］ | -40～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 224 |
|
Electrical parameter |
||
|
Output pattern |
BISS | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 10 |
|
Optional |
Digital logic encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 35
- Max. rotate speed: ［r/min］ 1200
- Max. shaft load Axial / Radial :［N］ 10/20
- Operating temperature :［℃］ -40～+85
- resolution :［P/r］ 224
- Response frequency / Response rate :［KHz］ 10
