Application		Elevator
Feature		metal grating、high reliability、long life

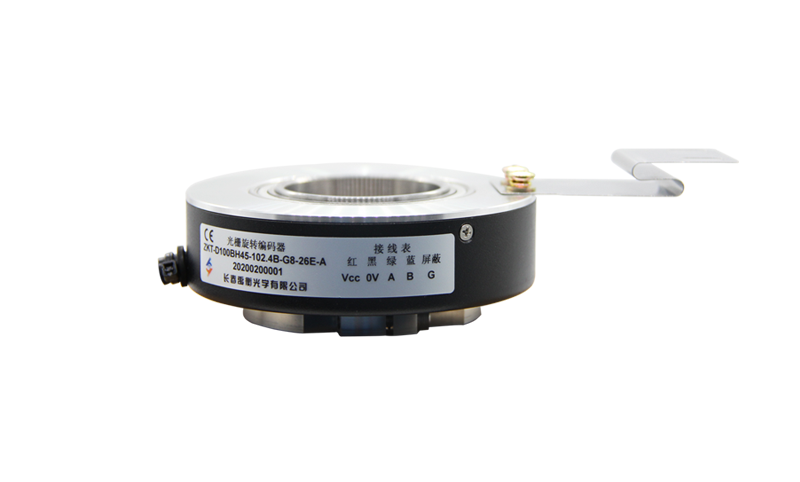

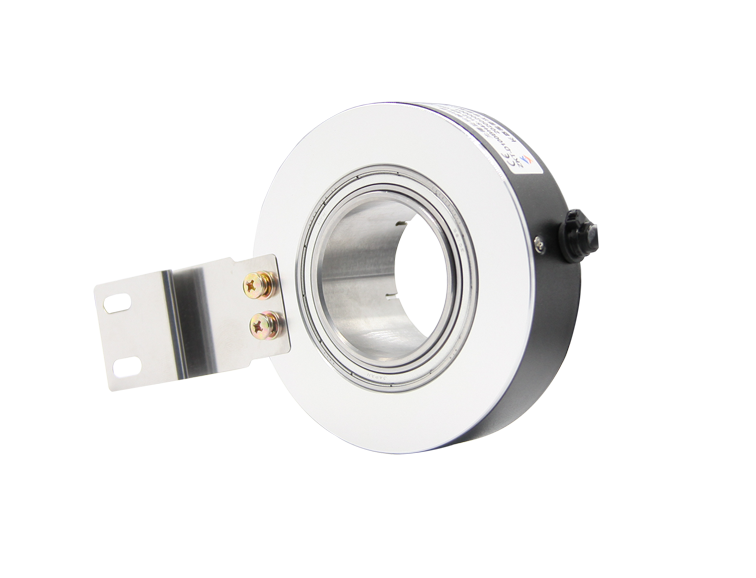

Model	［unit］	ZKT-D100B-H20-102.4BM-C8～26A
Mechanical parameter
Dimension	［mm］	φ100*37
Shaft type		Hollow shaft
Shaft size /aperture	φ［mm］	20
Max. rotate speed	［r/min］	3300
Max. shaft load Axial / Radial	［N］	20/40
Operating temperature	［℃］	-30～+85
Protection level		IP40
Connection type		Spring Plate
resolution	［P/r］	1024
Electrical parameter
Output pattern		(7272B) Line driver
Supply voltage	DC［V］	8～26
Response frequency / Response rate	［KHz］	300
Optional
