Product number:EC10E1260507

Positioning torque 6±3mN?m
Installation height 11mm
Positioning number twenty-four
Number of pulses twelve
Direction of operation section Horizontal
Operating temperature range - 40℃ to +85℃
Electrical properties rated 1mA 5V DC
output signal A. B, 2-phase output
insulation resistance 50MΩ min. 50V DC
Withstand voltage 50V AC for 1 minute
Durability Operating life 100,000 cycles

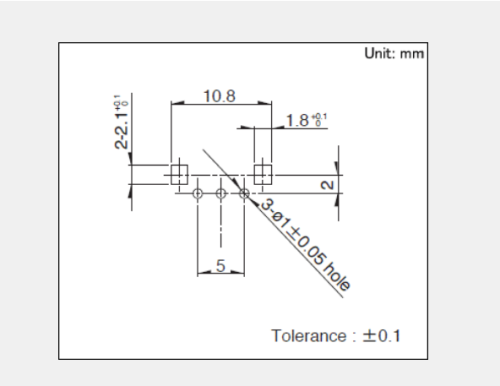

Minimum order unit (PCs.) Japan 3,200
Export 3,200
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 1 min. max.
Immersion welding welding temperature 260±5℃
Welding time 3±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
