Product number:EC11E1820402

structure Vertical
Shape of operation part Horizontal axis
Length of operation section 20mm
Positioning number thirty-six
Number of pulses eighteen
Press the on switch nothing
Operating life 15,000 cycles
Operating temperature range - 40℃ to +85℃
Electrical properties rated 10mA 5V DC

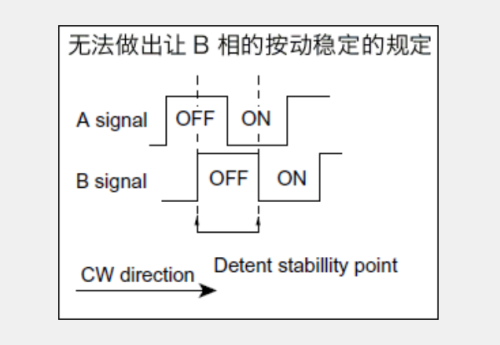

output signal A. B, 2-phase output
Maximum / minimum operating current (resistive load) 10mA/1mA
insulation resistance 100MΩ min. 250V DC
Withstand voltage 300V AC for 1 minute or 360V AC for 2s
Mechanical properties Positioning torque 10±7mN·m
Shaft push-pull strength 100N
Minimum order unit (PCs.) Japan 1,200
Export 2,400
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 2 min. max.
Immersion welding welding temperature 260±5℃
Welding time 5±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
