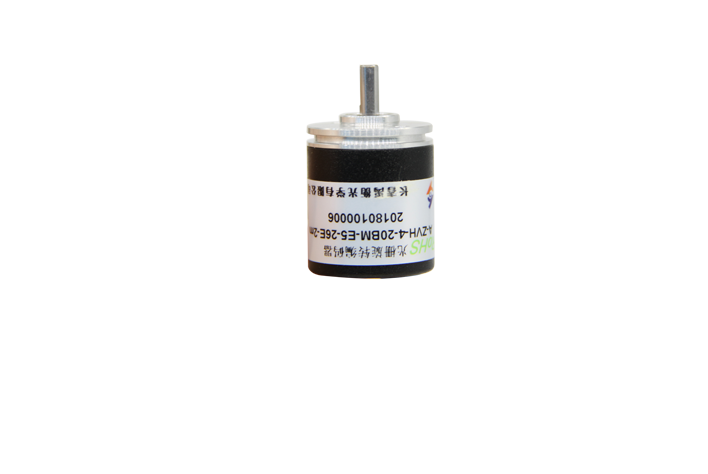

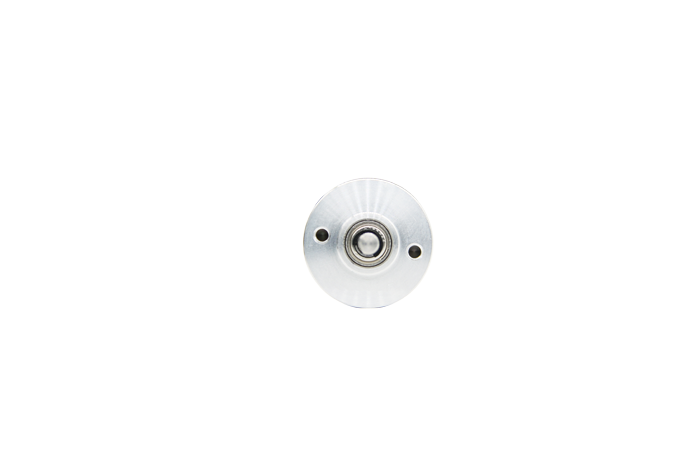

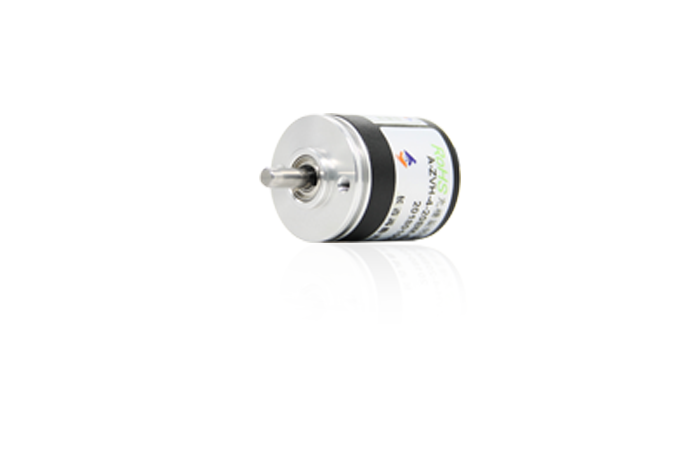

Electro optical sensor encoder
Options:
- Model:A-ZVH-4B-20BM-E5-26C
- Dimension:φ25*41
- Max. rotate speed:10000
- Operating temperature: -20～+85
- Protection level:IP53
- Protection level: IP53
Basic Info
| Model No. | A-ZVH-4B-20BM-E5-26C |
|---|---|
| Brand Name | Yuheng |
| Application | Precision measuring instruments、medical instruments |
| Feature | small 、light weight、superior performance |
| Shaft type | Solid Shaft |
| Shaft size /aperture | 4 |
| Connection type | Flange |
Product description
Encoder, strict price, good after-sales service!It is a technology-based company with encoder R & D and manufacturing as its main business.
| Application | Precision measuring instruments、medical instruments | |
| Feature | small 、light weight、superior performance | |
| Model | ［unit］ | A-ZVH-4B-20BM-E5-26C |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ25*41 |
|
Shaft type |
Solid Shaft | |
|
Shaft size /aperture |
φ［mm］ | 4 |
|
Max. rotate speed |
［r/min］ | 10000 |
|
Max. shaft load Axial / Radial |
［N］ | 9.8/4.9 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
IP53 | |
|
Connection type |
Flange |
|
|
resolution |
［P/r］ | 200 |
|
Electrical parameter |
||
|
Output pattern |
Open Collector |
|
|
Supply voltage |
DC［V］ | 5～26 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Electro optical sensor encoder
Options:
- Model:A-ZVH-4B-20BM-E5-26C
- Dimension:φ25*41
- Max. rotate speed:10000
- Operating temperature: -20～+85
- Protection level:IP53
- Protection level: IP53
