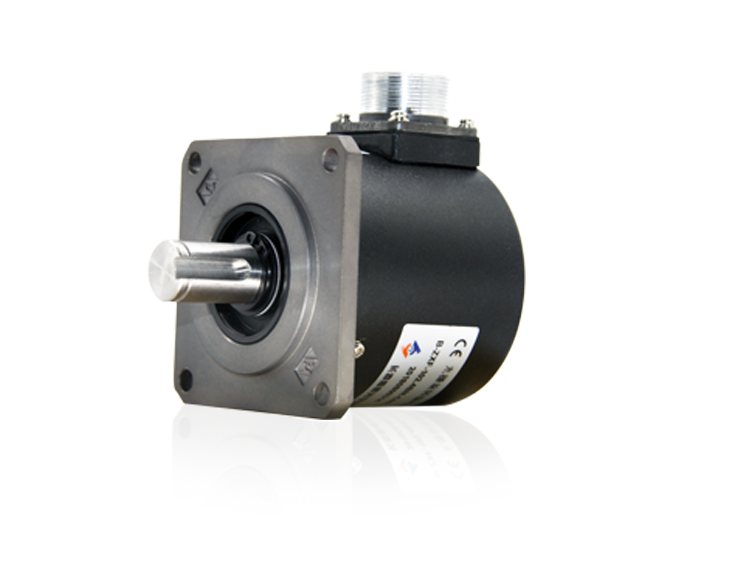

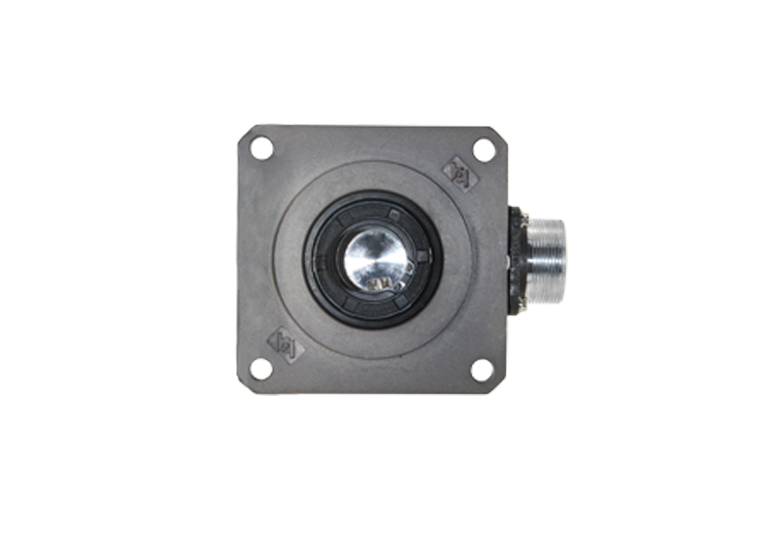

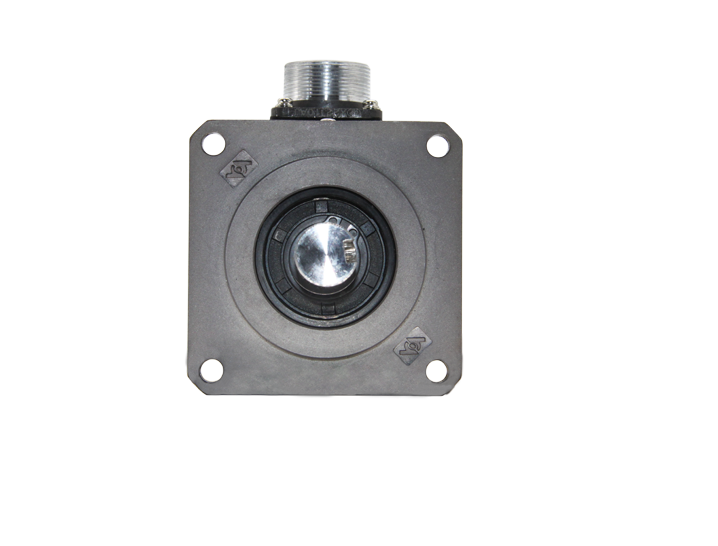

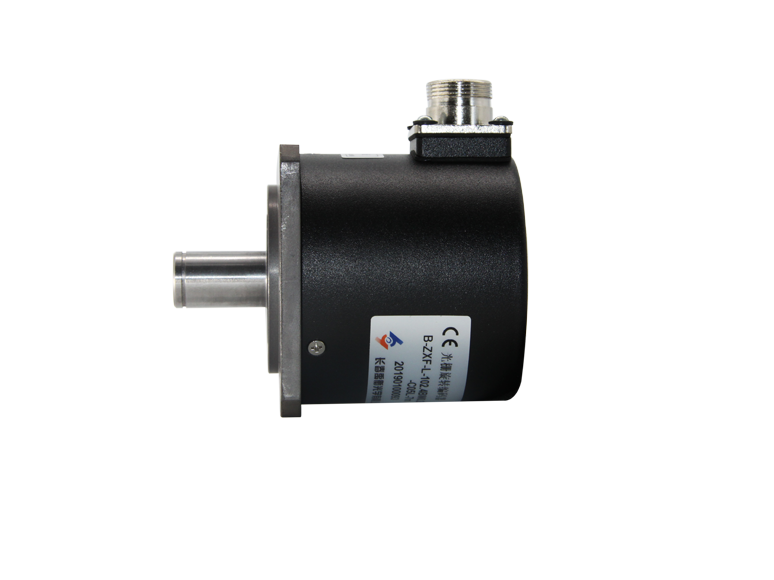

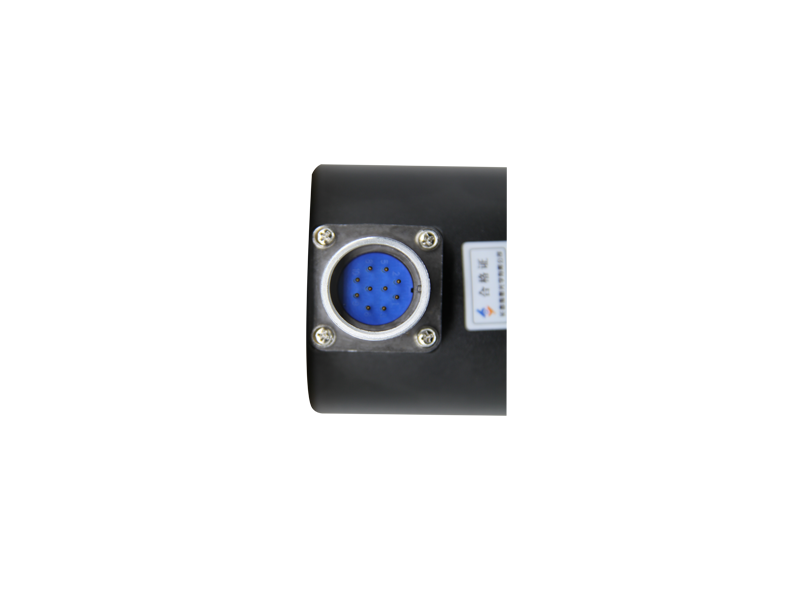

Encoder optical sensor encoder
Options:
- Model： B-ZXF-200BM-C8～26A
- Dimension： Ф66*89
- Shaft size /aperture：15
- Max. rotate speed： 6000
- Max. shaft load Axial / Radial ： 50/50
- Operating temperature：-20～+85
Basic Info
| Model No. | B-ZXF-200BM-C8~26A |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools、automation、metallurgical industry |
| Feature | high protection level，economical |
| Shaft type | Solid shaft |
| Protection level | IP65 |
| Connection type | Coupling |
Product description
When the encoder is installed, it can not only monitor the out of step condition when the motor is running, but also monitor the motor load response signal supplied by the encoder, which makes it possible to supply only the required current.
Application
CNC machine tools、automation、metallurgical industry
Feature
high protection level，economical
Model
［unit］
B-ZXF-200BM-C8～26A
Mechanical parameter
Dimension
［mm］
Ф66*89
Shaft type
Solid shaft
Shaft size /aperture
φ［mm］
15
Max. rotate speed
［r/min］
6000
Max. shaft load
Axial / Radial
［N］
50/50
Operating temperature
［℃］
-20～+85
Protection level
IP65
Connection type
Coupling
resolution
［P/r］
2000
Electrical parameter
Output pattern
(7272B) Line driver
Supply voltage
DC［V］
8～26
Response frequency / Response rate
［KHz］
300
Optional
