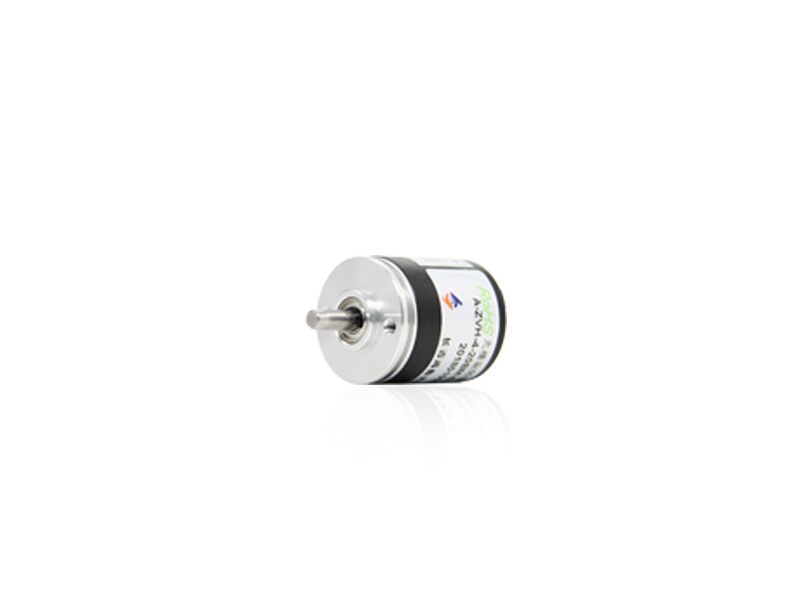

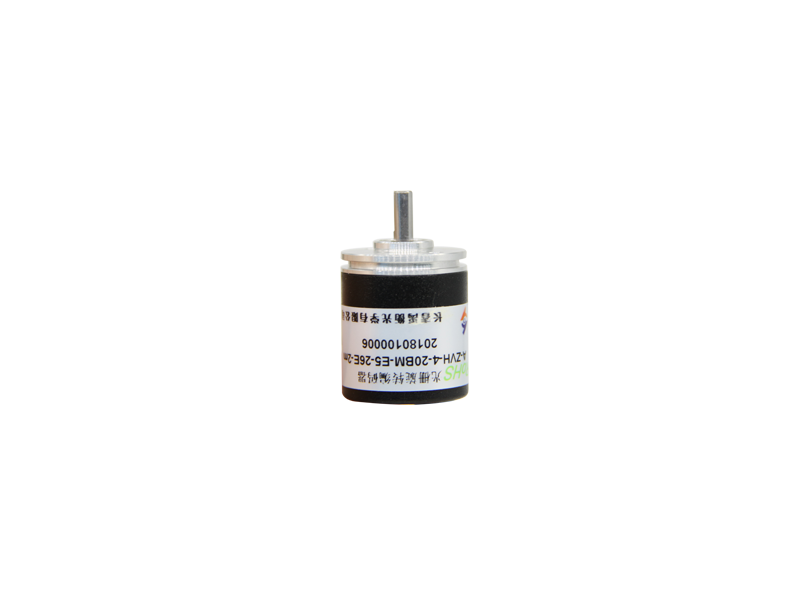

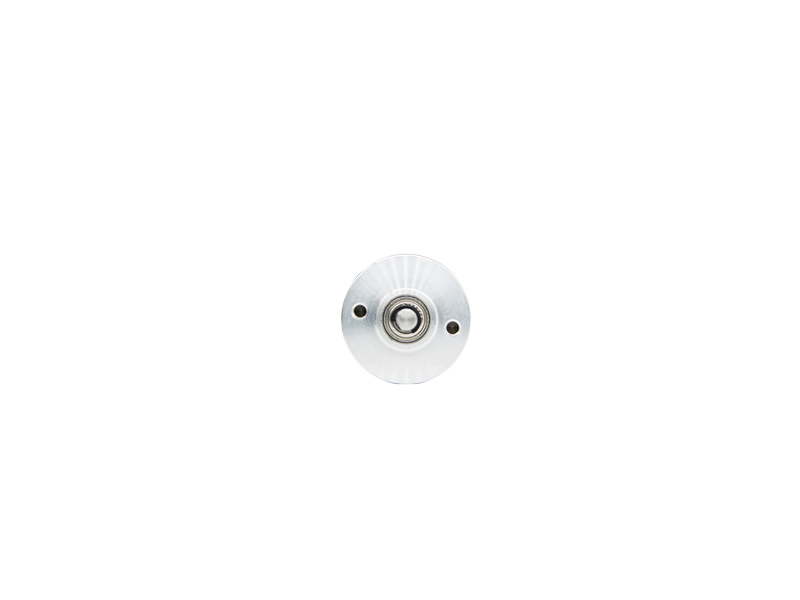

Free streaming encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 4
- Max. rotate speed: ［r/min］ 10000
- Protection level : IP53
- Max. resolution :［P/r］ 2500
- Supply voltage :DC［V］ 5/5～26
- Response frequency / Response rate: ［KHz］ 100
Basic Info
| Model No. | A-ZVH-4 |
|---|---|
| Brand Name | Yuheng |
| Application | Precision measuring instruments、medical instruments |
| Feature | small 、light weight、superior performance |
| Model | ［unit］ A-ZVH-4 |
| Dimension | ［mm］ φ25*41 |
| Shaft type | Solid shaft |
Product description
An encoder is a device that compiles signals (such as bit streams) or data and converts them into signal forms that can be used for communication, transmission and storage.Encoder converts angular displacement or linear displacement into electrical signals, the former is called code wheel and the latter is called code scale.
| Application |
|
Precision measuring instruments、medical instruments |
| Feature |
|
small 、light weight、superior performance |
| Model | ［unit］ | A-ZVH-4 |
|
|
|
|
|
Mechanical parameter |
|
|
| Dimension | ［mm］ | φ25*41 |
|
Shaft type |
|
Solid shaft |
|
Shaft size /aperture |
φ［mm］ | 4 |
|
Max. rotate speed |
［r/min］ | 10000 |
|
Max. shaft load Axial / Radial |
［N］ | 9.8/4.9 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
|
IP53 |
|
Connection type |
|
Flange |
|
Max. resolution |
［P/r］ | 2500 |
|
Electrical parameter |
|
|
|
Output pattern |
|
Voltage/open circuit |
|
Supply voltage |
DC［V］ | 5/5～26 |
| Response frequency / Response rate | ［KHz］ | 100 |
Free streaming encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 4
- Max. rotate speed: ［r/min］ 10000
- Protection level : IP53
- Max. resolution :［P/r］ 2500
- Supply voltage :DC［V］ 5/5～26
- Response frequency / Response rate: ［KHz］ 100
