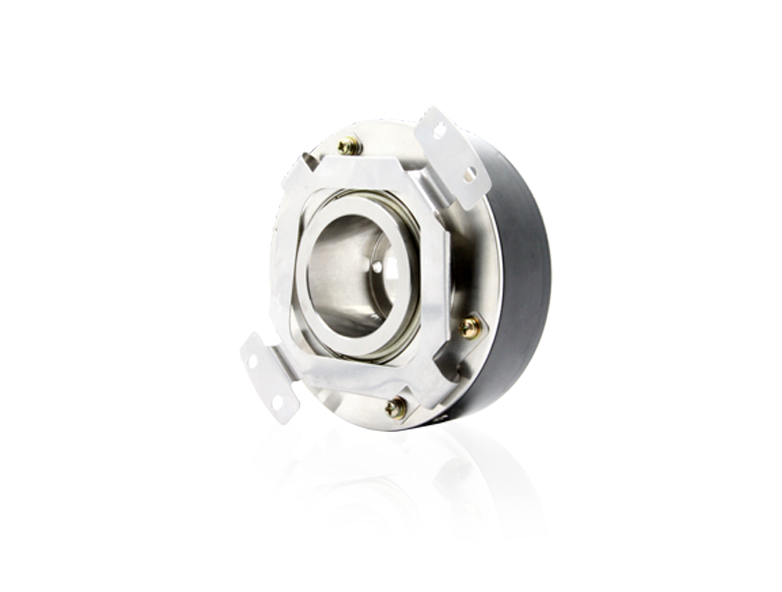

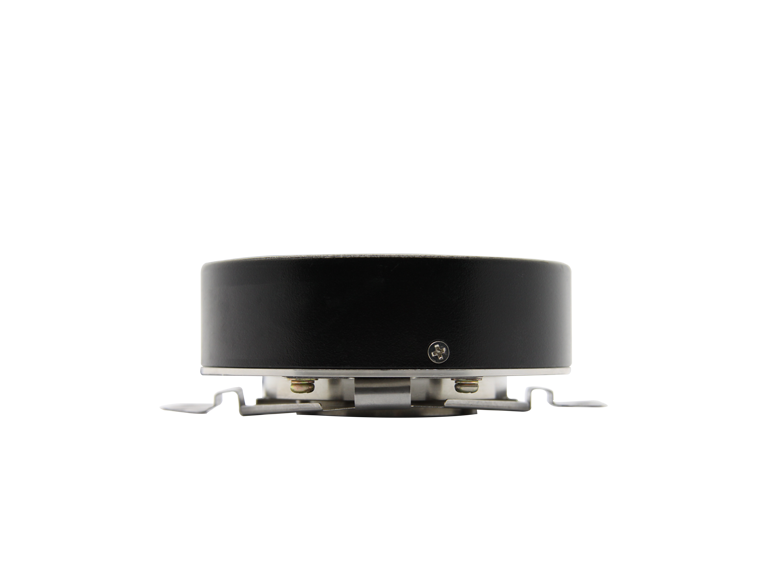

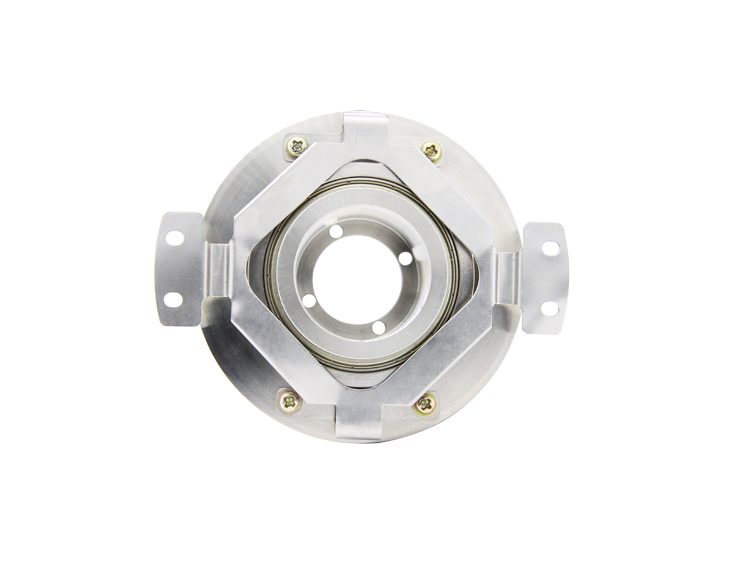

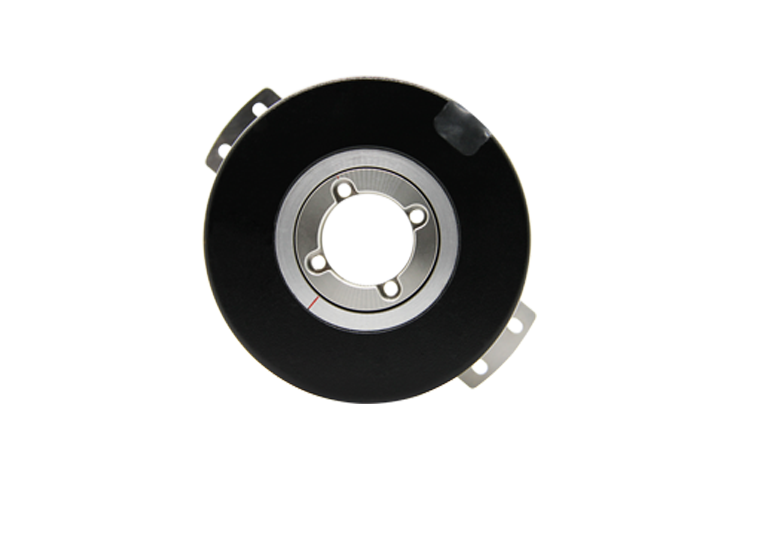

Hierarchical encoder decoder encoder
Options:
- Shaft size /aperture φ［:mm］ 35
- Max. rotate speed :［r/min］ 1200
- Operating temperature :［℃］ -40～+85
- Protection level : IP40
- Output pattern : RS422
- Supply voltage :DC［V］ 5
Basic Info
| Model No. | JKW-6-H35-24PB-G05RS422 |
|---|---|
| Brand Name | Yuheng |
| Application | High precision measurement、high precisionturntable and other precision instruments |
| Feature | high precision |
| Model | ［unit］ JKW-6-H35-24PB-G05RS422 |
| Dimension | ［mm］ φ90*36 |
| Shaft type | hollow shaft |
Product description
The power supply of the encoder can be an external power supply, or directly use the DC24V power supply of the PLC. The “-” terminal of the power supply should be connected to the COM terminal of the encoder, and the “+” terminal should be connected to the power terminal of the encoder. The COM terminal of the encoder is connected to the PLC input COM terminal. The A, B, and Z phase pulse output lines are directly connected to the input terminal of the PLC. A and B are pulses with a difference of 90 degrees. The Z-phase signal can only be rotated once the encoder A pulse is usually used as the basis for the zero point. Pay attention to the response time of the PLC input when connecting.
| Application | High precision measurement、high precisionturntable and other precision instruments | |
| Feature | high precision | |
| Model | ［unit］ | JKW-6-H35-24PB-G05RS422 |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ90*36 |
|
Shaft type |
hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 35 |
|
Max. rotate speed |
［r/min］ | 1200 |
|
Max. shaft load Axial / Radial |
［N］ | 10/20 |
|
Operating temperature |
［℃］ | -40～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 224 |
|
Electrical parameter |
||
|
Output pattern |
RS422 | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 115.2Kbps |
|
Optional |
Hierarchical encoder decoder encoder
Options:
- Shaft size /aperture φ［:mm］ 35
- Max. rotate speed :［r/min］ 1200
- Operating temperature :［℃］ -40～+85
- Protection level : IP40
- Output pattern : RS422
- Supply voltage :DC［V］ 5
