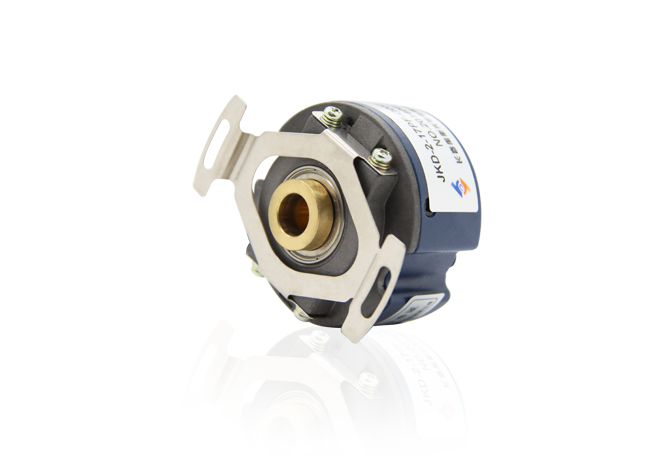

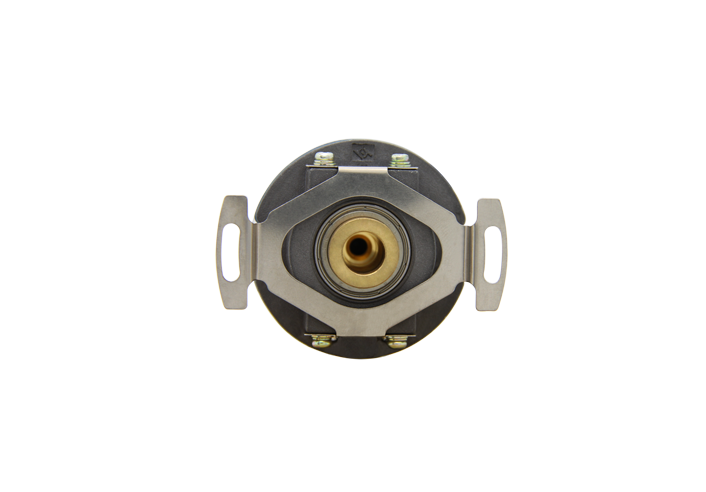

High resolution absolute encoder
Options:
- Dimension：φ48x33
- Shaft size /aperture：9（deep18.5）
- Max. rotate speed： 6000
- Operating temperature：-20～+85
- resolution：223
Basic Info
| Model No. | JKD-14D-23PF-G05FD |
|---|---|
| Brand Name | Yuheng |
| Application | Servo motor、automation 、mac |
| Feature | □80Servo motor、high resolution， |
| Model | JKD-14D-23PF-G05FD |
| Shaft type | Inner cone/Outer cone |
| Max. shaft load Axial / Radial | 10/1 |
Product description
Encoder (525) orthogonal encoder (also known as dual channel incremental encoder) is used to convert linear shift into pulse signal. By monitoring the number of pulses and the relative phase of the two signals, the user can track the rotation position and direction.
| Application | Servo motor、automation 、machine tools、carving machine | |
| Feature | □80Servo motor、high resolution，economic，strong anti-interference | |
| Model | ［unit］ | JKD-14D-23PF-G05FD |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ48x33 |
|
Shaft type |
Inner cone/Outer cone | |
|
Shaft size /aperture |
φ［mm］ | 9（deep18.5） |
|
Max. rotate speed |
［r/min］ | 6000 |
|
Max. shaft load Axial / Radial |
［N］ | 10/10 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
IP50 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 223 |
|
Electrical parameter |
||
|
Output pattern |
FD | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 2.5 |
|
Optional |
High resolution absolute encoder
Options:
- Dimension：φ48x33
- Shaft size /aperture：9（deep18.5）
- Max. rotate speed： 6000
- Operating temperature：-20～+85
- resolution：223
