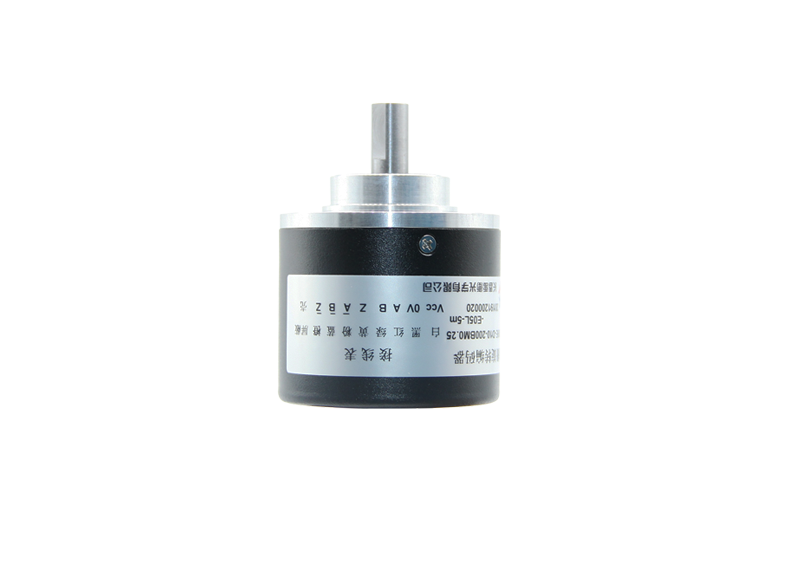

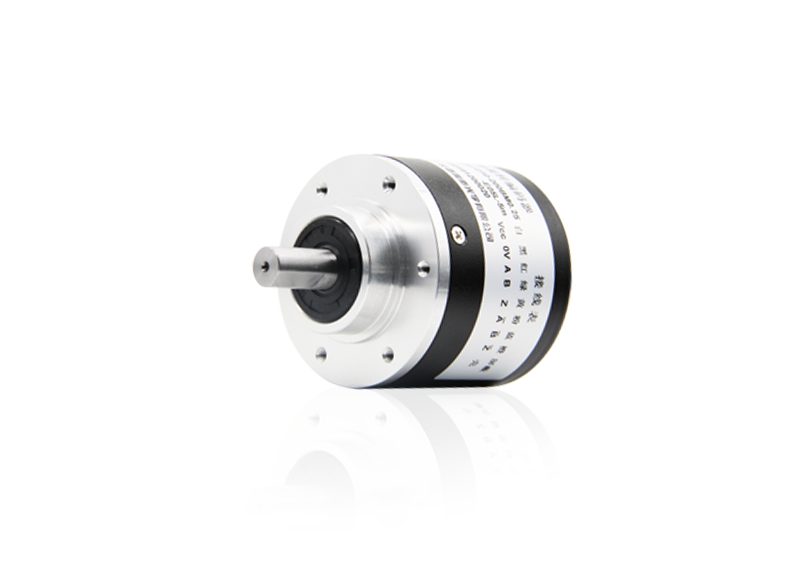

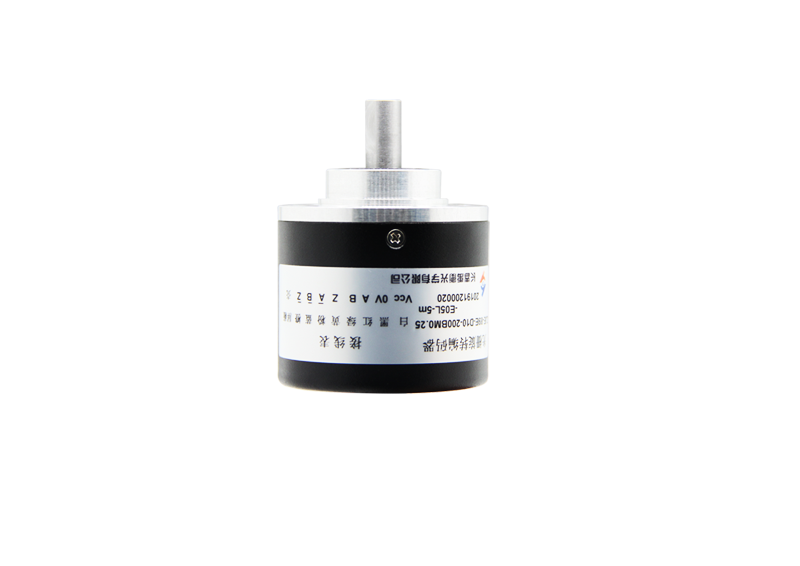

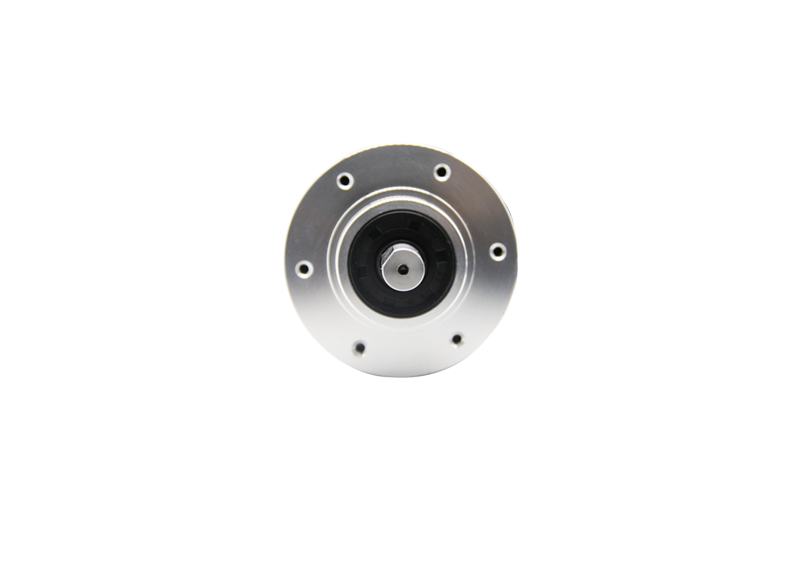

Incremental encoder explained encoder
Options:
- Dimension: ［mm］ Φ58x81
- Shaft size /aperture :φ［mm］ 6
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial: ［N］ 30/50
- Protection level : IP65
- Supply voltage: DC［V］ 5
Basic Info
| Model No. | ZJE-89-102.4BM-G05L |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | multiple installation sizes、high protection level、anti-surge protection circuit design |
| Model | ［unit］ ZJE-89-102.4BM-G05L |
| Shaft type | Solid shaft |
| Operating temperature | ［℃］ -30～+85 |
Product description
The encoder is generally installed in the rotating mechanism to feed back the position signal of the mechanism. When purchasing an encoder, we will give priority to the resolution of the encoder, and then consider the installation method on the mechanism.
| Application | CNC machine tools | |
| Feature | multiple installation sizes、high protection level、anti-surge protection circuit design | |
| Model | ［unit］ | ZJE-89-102.4BM-G05L |
| Mechanical parameter | ||
| Dimension | ［mm］ | Φ58x81 |
|
Shaft type |
Solid shaft |
|
|
Shaft size /aperture |
φ［mm］ | 6 |
|
Max. rotate speed |
［r/min］ | 6000 |
|
Max. shaft load Axial / Radial |
［N］ | 30/50 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP65 | |
|
Connection type |
Coupling | |
|
resolution |
［P/r］ | 1024 |
|
Electrical parameter |
||
|
Output pattern |
Line driver |
|
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Incremental encoder explained encoder
Options:
- Dimension: ［mm］ Φ58x81
- Shaft size /aperture :φ［mm］ 6
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial: ［N］ 30/50
- Protection level : IP65
- Supply voltage: DC［V］ 5
