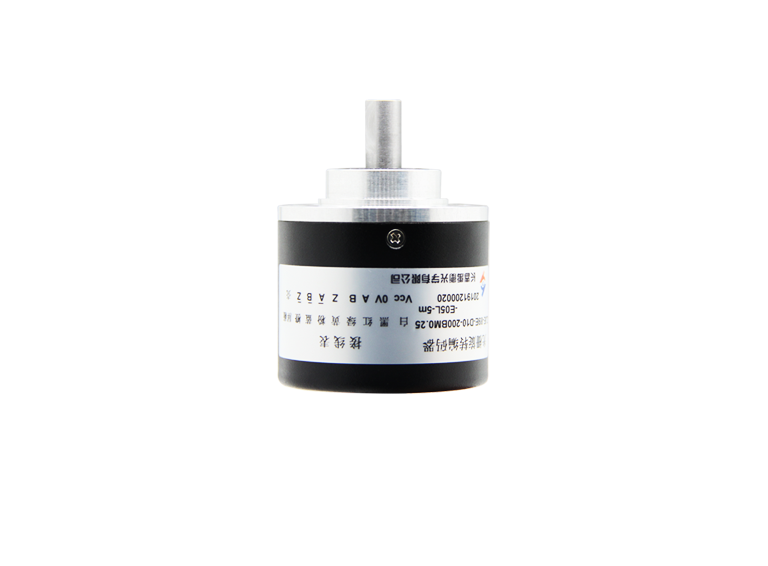

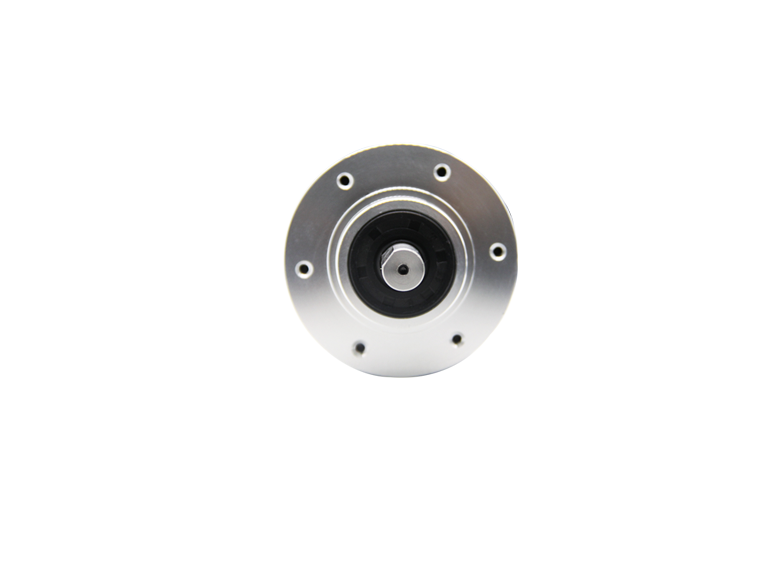

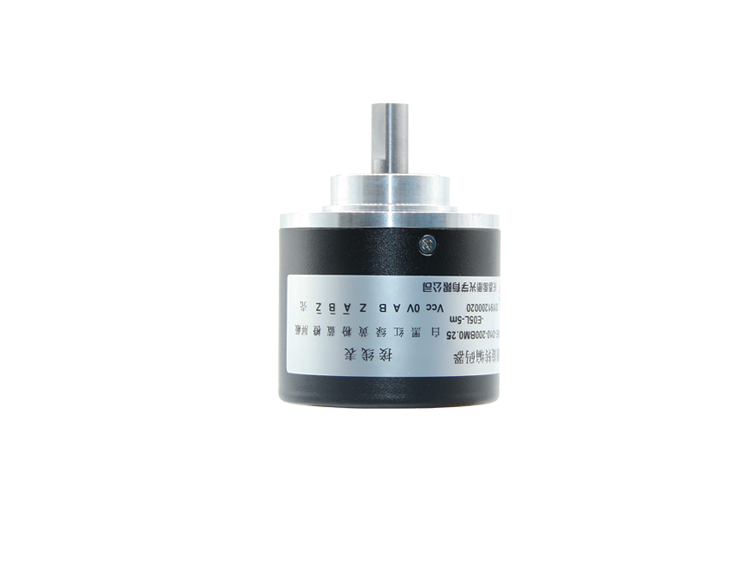

Incremental encoder function encoder
Options:
- Dimension :［mm］ Φ58x81
- Shaft size /aperture :φ［mm］ 10
- Max. rotate speed: ［r/min］ 6000
- Max. shaft load Axial / Radial :［N］ 30/50
- resolution :［P/r］ 2500
- Supply voltage :DC［V］ 5
Basic Info
| Model No. | ZJE-89E-D10-250BM-C05L |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools |
| Feature | multiple installation sizes、high protection level、anti-surge protection circuit design |
| Model | ［unit］ ZJE-89E-D10-250BM-C05L |
| Shaft type | Solid shaft |
| Operating temperature | ［℃］ -30～+85 |
Product description
Pulse encoders are divided into photoelectric, contact and electromagnetic induction pulse encoders. Pulse encoder is a kind of rotary pulse generator, which can change mechanical angle into electric pulse, and can be used as position detection and speed detection device.
| Application | CNC machine tools | |
| Feature | multiple installation sizes、high protection level、anti-surge protection circuit design | |
| Model | ［unit］ | ZJE-89E-D10-250BM-C05L |
| Mechanical parameter | ||
| Dimension | ［mm］ | Φ58x81 |
|
Shaft type |
Solid shaft |
|
|
Shaft size /aperture |
φ［mm］ | 10 |
|
Max. rotate speed |
［r/min］ | 6000 |
|
Max. shaft load Axial / Radial |
［N］ | 30/50 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP65 | |
|
Connection type |
Coupling | |
|
resolution |
［P/r］ | 2500 |
|
Electrical parameter |
||
|
Output pattern |
Line driver |
|
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Incremental encoder function encoder
Options:
- Dimension :［mm］ Φ58x81
- Shaft size /aperture :φ［mm］ 10
- Max. rotate speed: ［r/min］ 6000
- Max. shaft load Axial / Radial :［N］ 30/50
- resolution :［P/r］ 2500
- Supply voltage :DC［V］ 5
