Incremental encoder operation encoder

Options:

Shaft size /aperture: 15
Max. rotate speed :6000
Max. shaft load Axial / Radial : 50/50
Max. resolution :80000
Supply voltage :5/8～26
Response frequency / Response rate :100～300

Get Latest Price

You might also like

Encoder motor position sensor

1 Pack/Packs (MOQ)

Through shaft of encoder

$53.00

1 Pack/Packs (MOQ)

Digital electronics encoder sensor

1 Pack/Packs (MOQ)

Incremental linear encoder encoder

1 Pack/Packs (MOQ)

Incremental shaft encoder encoder

1 Pack/Packs (MOQ)

Linear incremental encoder encoder

1 Pack/Packs (MOQ)

Hengstler micro encoder encoder

1 Pack/Packs (MOQ)

Smallest rotary encoder encoder

1 Pack/Packs (MOQ)

Small absolute rotary encoder

1 Pack/Packs (MOQ)

Encoder wheel sensor encoder

1 Pack/Packs (MOQ)

Basic Info

Model No.	B-ZXF-L
Brand Name	Yuheng
Application	CNC machine tools、automation、metallurgical industry
Feature	high protection level，economical
Model	B-ZXF
Dimension	Ф66*89
Shaft type	Solid shaft
Operating temperature	-20～+85
Protection level	IP65/IP54
Connection type	Coupling
Output pattern	Line driver/Push-pull/ Voltage/open circuit

Product description

Working principle and function of encoder: it is a rotary sensor that converts rotary displacement into a series of digital pulse signals. These pulses can be used to control angular displacement. If the encoder is combined with gear bar or screw, it can also be used to measure linear displacement.

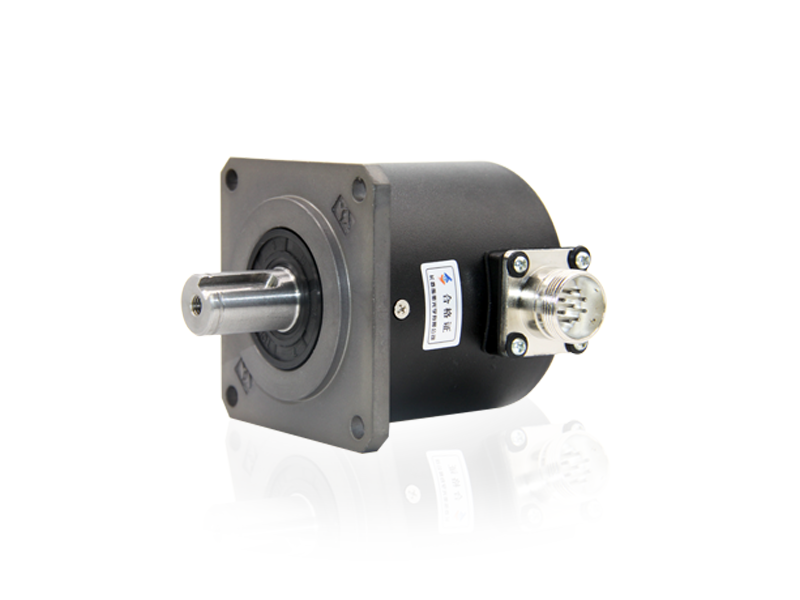

B Zxf L B Zxf L

Application	CNC machine tools、automation、metallurgical industry
Feature	high protection level，economical
Model	B-ZXF

Mechanical parameter
Dimension	Ф66*89
Shaft type	Solid shaft
Shaft size /aperture	15
Max. rotate speed	6000
Max. shaft load Axial / Radial	50/50
Operating temperature	-20～+85
Protection level	IP65/IP54
Connection type	Coupling
Max. resolution	80000
Electrical parameter
Output pattern	Line driver/Push-pull/ Voltage/open circuit
Supply voltage	5/8～26
Response frequency / Response rate	100～300
