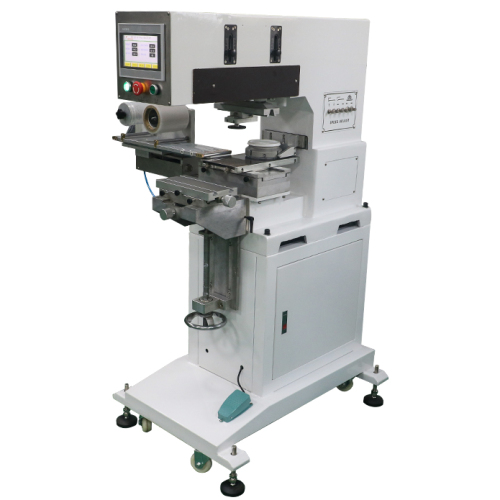

Ink Cup Pad Printing Machine

$3528.00

≥1 Set/Sets

Model:

P1-408CT

Get Latest Price

Model No.	P1-408CT
Brand Name	KC
species	Pad Printer
Applicable industry	Hotels, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Printing Shops
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Philippines, Saudi Arabia, India, Spain, Malaysia
Showroom location (in which countries are there sample rooms overseas)	Germany, Brazil, Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Motor, Pump
status	New
Type of printing plate	Gravure
place of origin	China
use	Card Printer, Cloths Printer
degree of automation	Semi-Automatic
Printing color number and surface number	Single Color
warranty period	1 Year
Core selling point	Low Noise Level
Transmission Type	Single-Colour Pad Printer
Automatic Grade	Semi-Automatic
Steel Plate size	100*200mm
Speed（pcs/hr）	1100
Printing Area	85×85mm
Printing Nmber	1
Table Area	200*125mm
Worktable	Standard Working Table With 3-size Adjustment
Plate Type	10 Mm Thick Steel Plate.
Compress Air	5-7 Bar
Power	1 Phase 220V
G.W.	188Kg

One color pad printer//Usage and characters

? ? ? ? Ink Cup Pad Printing Machine is widely used in the electronics industry, mainly for printing fine patterns and texts such as mobile phone buttons, circuit board logos, and electronic components. Its high precision and strong adaptability enable the equipment to accurately transfer ink to electronic components of various shapes and sizes, meeting the strict requirements of the electronics industry for printing quality and fineness. At the same time, the ink cup pad printing machine also has the advantages of easy operation, environmental protection and energy saving, which can improve production efficiency, reduce production costs, and provide strong support for the development of the electronics industry.

? ? ?Ink Cup Pad Printing Machine is widely used in the toy industry for fine pattern and color printing on the surface of various toys. Through the closed oil cup design, the ink volatilization is effectively prevented, the printing stability is ensured, and it is suitable for printing complex patterns and bright colors on toys made of plastic, rubber and other materials, such as cartoon images, logos and text. The pad printing machine can cope with the printing needs of various irregular surfaces and curved areas on toys, ensure the accuracy of the pattern and the consistency of the color, add visual appeal to toy products, and improve market competitiveness.

With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
With coin aluminum structure ensure more stabilization and long life.
Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
Can print almost small size objects . So sold very nice in the world.

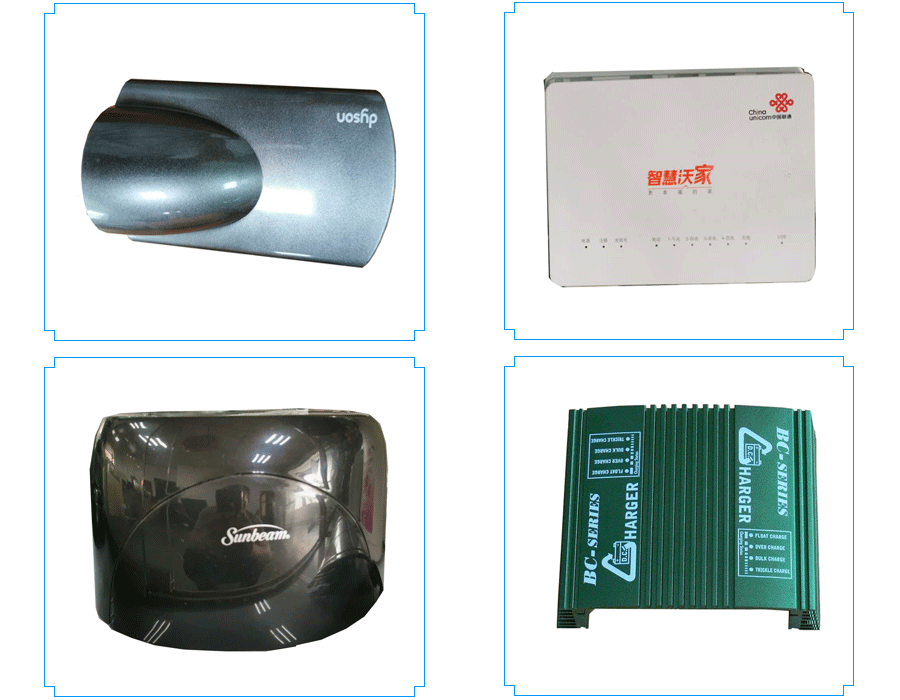

Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;

Technical data

One color pad printer //Parameter

P1-408CT

Max. steel plate: 100 ×200 mm;
Ink cup size: Ф90 mm;
Max. printing area :80×80 mm ;
Printable color quantity:1;
Max. printing speed: 1300 pcs/h.

P1-410CT

Max. plate size: 100×250 mm;
Ink cup diameter: Ф90 mm;
Max. printing area: 80×130 mm;
Max. printing speed: 1100 pcs/h;
Printable color quantity:1;

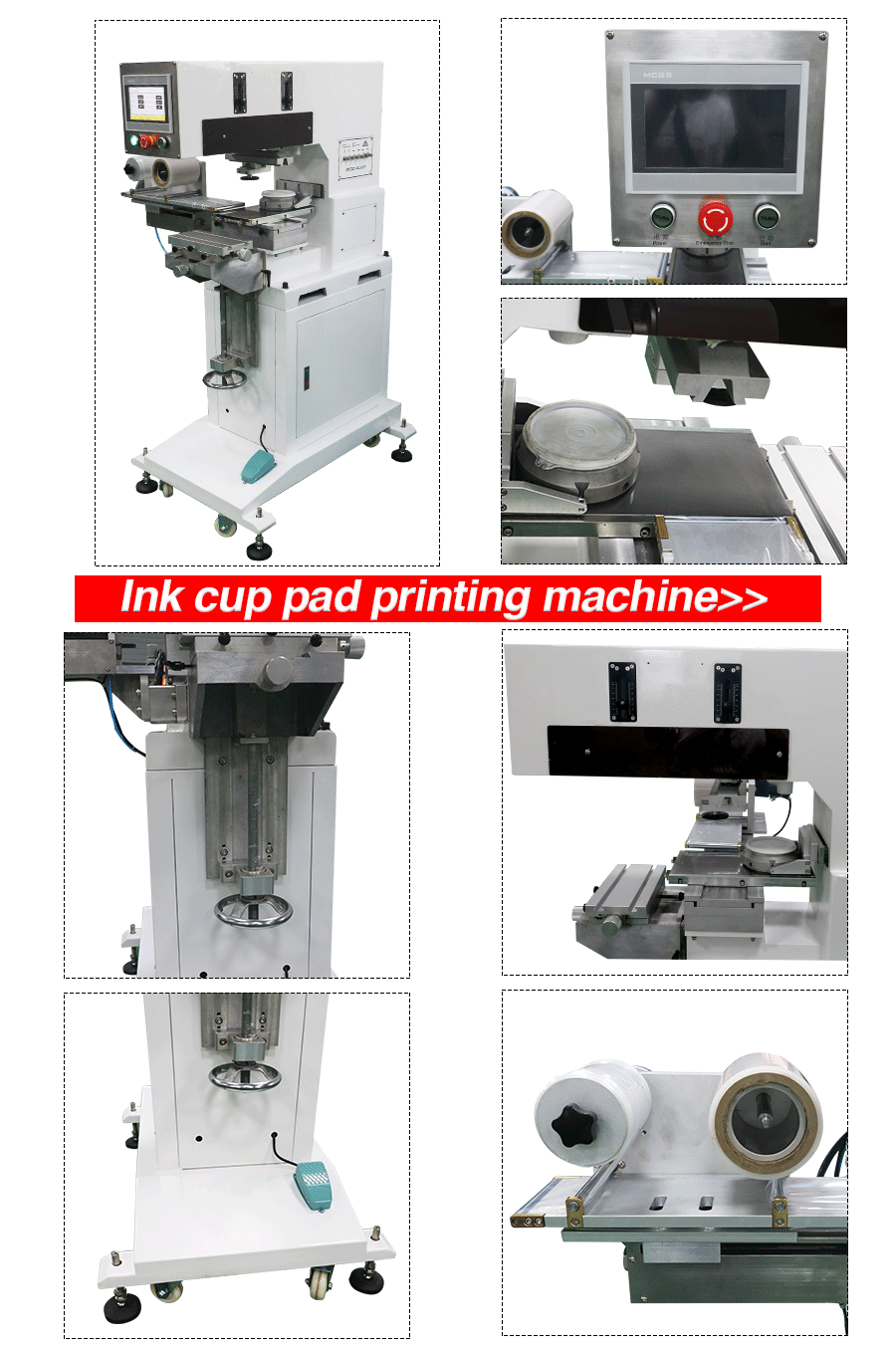

Details-Advantage

Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

Catalogue

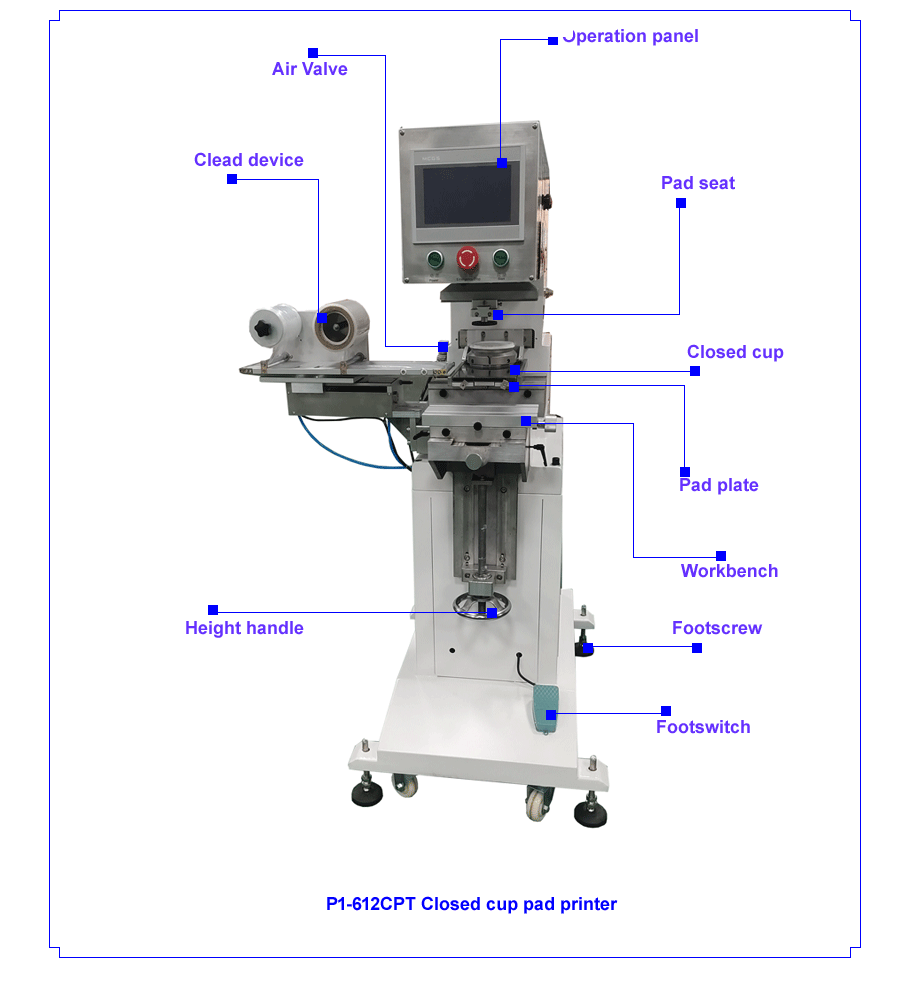

Structure

? ? ?Ink Cup Pad Printing Machine, is a printing device that uses ink cups to load ink and transfers ink to the substrate through a silicone print head. It has the characteristics of high precision, strong adaptability, easy operation, environmental protection and energy saving, and is widely used in electronics, toys, gifts and cosmetics industries.

Structural Composition

1) Pad printing plates: The plates are made of thick steel plates, thin steel sheets, resin plates, etc. They are used on oil cup pad printers or open pad printers. The printed pattern needs to be etched on the plates. Generally, a single-color pad printer is equipped with one plate, a two-color pad printer is equipped with two plates, and so on.
2) Fixture: The printed product must be fixed on the workbench with a fixture to ensure that the printing position meets the requirements. The fixture can be made of metal or non-metal materials. A single-color pad printer and a shuttle pad printer require a fixture, while a turntable pad printer needs to be equipped with a number of fixtures equal to the number of workstations.
3) Ink: The ink type is selected according to the material of the product, and the ink color is selected according to the printed pattern. Different types of inks should match different pad printing processes. After the ink dries, it should be able to firmly adhere to the product surface. A single-color pad printer uses one color of ink at a time, a four-color pad printer uses four colors of ink, and so on.
4) Pad printing rubber head: Different product shapes and different pad printing patterns require pad printing rubber heads of different shapes. The pad printing rubber head should be able to perfectly achieve the pad printing task and maintain the stability of the properties.
5) Blade or oil cup: Blades are used on open pad printing machines, and oil cups are used on closed pad printing machines. Blades and oil cups should be able to scrape off the ink on the steel plate and should be replaced in time when damaged.
