Absolute value encoder shaft rotator, there are one-to-one corresponding to the position of the code (binary, BCD code, etc.) output, from the change of code size can determine the positive and negative direction and displacement position, without judging the circuit. It has an absolute zero code. When the power is cut off or shut down, it can read out the code of the power cut or shut down position and find the zero code accurately. In general, the measurement range of absolute value encoder is 0 ~ 360 degrees, but special models can also realize multi turn measurement.

Application		Servo motor
Feature		small、thin、multiple installation methods、high resolution

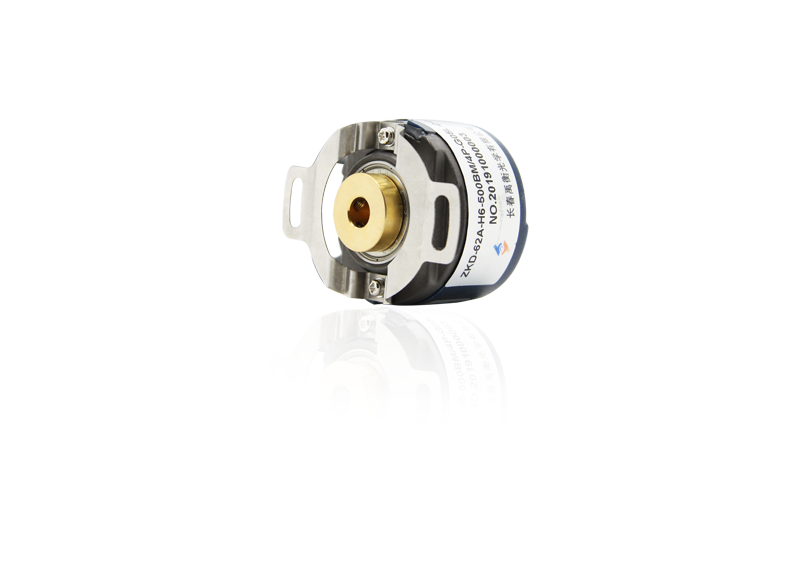

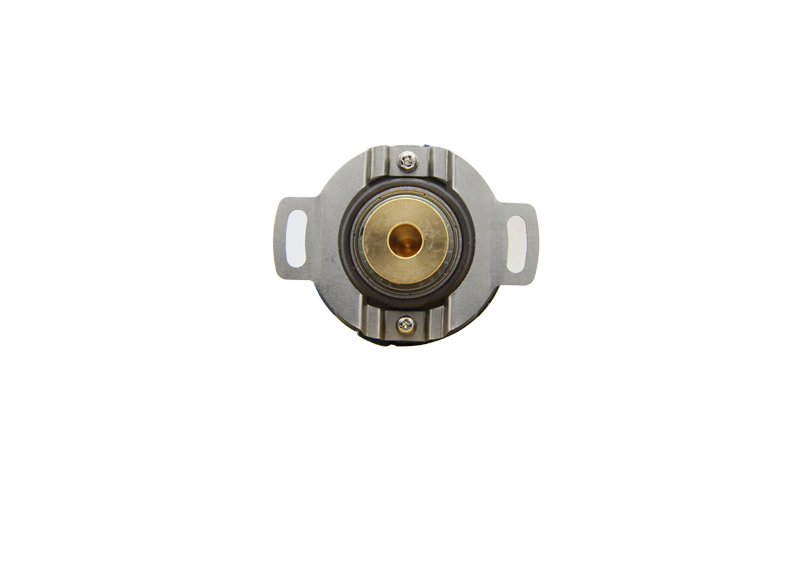

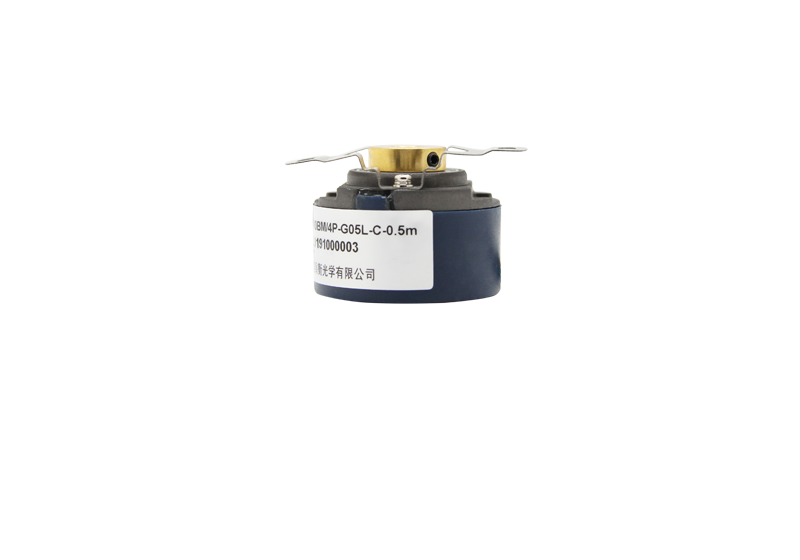

Model	［unit］	ZKD-62A-H8-204.8BM/4P-G05L
Mechanical parameter
Dimension	［mm］	φ37*26.5
Shaft type		Blind Hollow Shaft
Shaft size /aperture	φ［mm］	8
Max. rotate speed	［r/min］	6000
Max. shaft load Axial / Radial	［N］	10/10
Operating temperature	［℃］	-30～+85
Protection level		IP40
Connection type		Spring Plate
resolution	［P/r］	2048
Electrical parameter
Output pattern		Line driver
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	350
Optional
