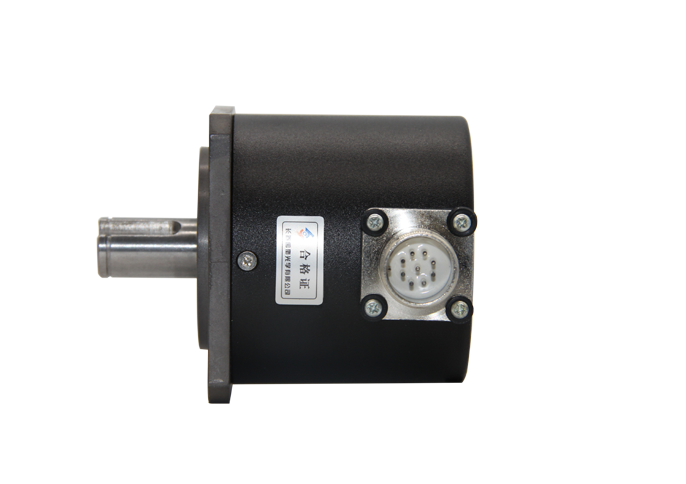

Multi-resolution encoder encoder encoder
Options:
- Shaft size /aperture φ［mm］： 15
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial :［N］ 50/50
- Protection level : IP65
- resolution :［P/r］ 600
- Supply voltage :DC［V］ 8～26
Basic Info
| Model No. | B-ZXF-NA-60BM-C8~26F |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools、automation、metallurgical industry |
| Feature | high protection level，economical |
| Model | ［unit］ B-ZXF-NA-60BM-C8～26F |
| Dimension | ［mm］ Ф66*89 |
| Shaft type | Solid shaft |
Product description
Absolute value encoder, multi turn absolute value encoder, real manufacturer, cable pulling displacement sensor, Dingxi, 4-20mA encoder, focusing on encoder and automation solutions, high-precision encoder manufacturer, parallel encoder, speed measurement coding. Professional customer service online for you.
| Application | CNC machine tools、automation、metallurgical industry | |
| Feature | high protection level，economical | |
| Model | ［unit］ | B-ZXF-NA-60BM-C8～26F |
| Mechanical parameter | ||
| Dimension | ［mm］ | Ф66*89 |
|
Shaft type |
Solid shaft |
|
|
Shaft size /aperture |
φ［mm］ | 15 |
|
Max. rotate speed |
［r/min］ | 6000 |
|
Max. shaft load Axial / Radial |
［N］ | 50/50 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
IP65 | |
|
Connection type |
Coupling | |
|
resolution |
［P/r］ | 600 |
|
Electrical parameter |
||
|
Output pattern |
Push-pull | |
|
Supply voltage |
DC［V］ | 8～26 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Multi-resolution encoder encoder encoder
Options:
- Shaft size /aperture φ［mm］： 15
- Max. rotate speed :［r/min］ 6000
- Max. shaft load Axial / Radial :［N］ 50/50
- Protection level : IP65
- resolution :［P/r］ 600
- Supply voltage :DC［V］ 8～26
