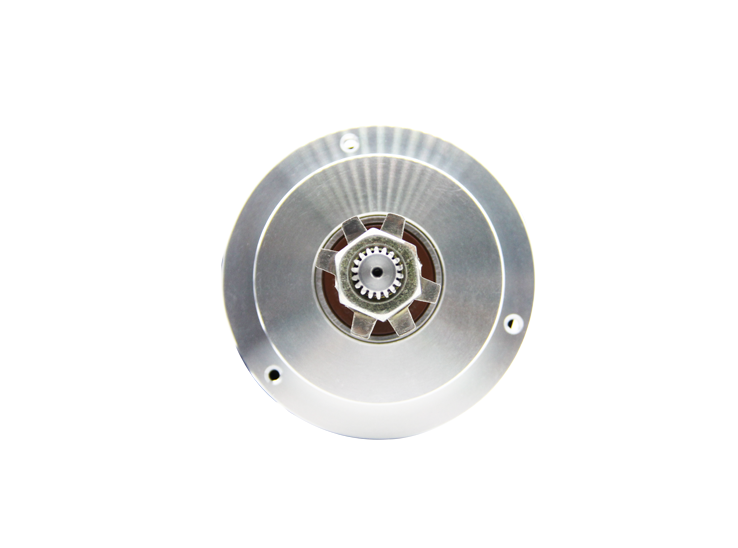

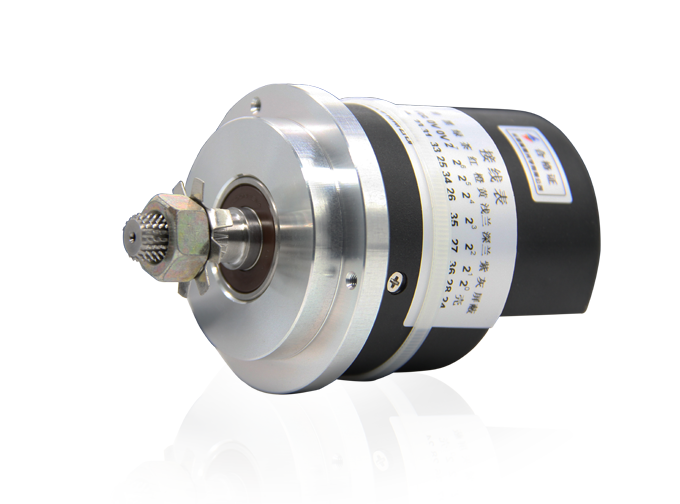

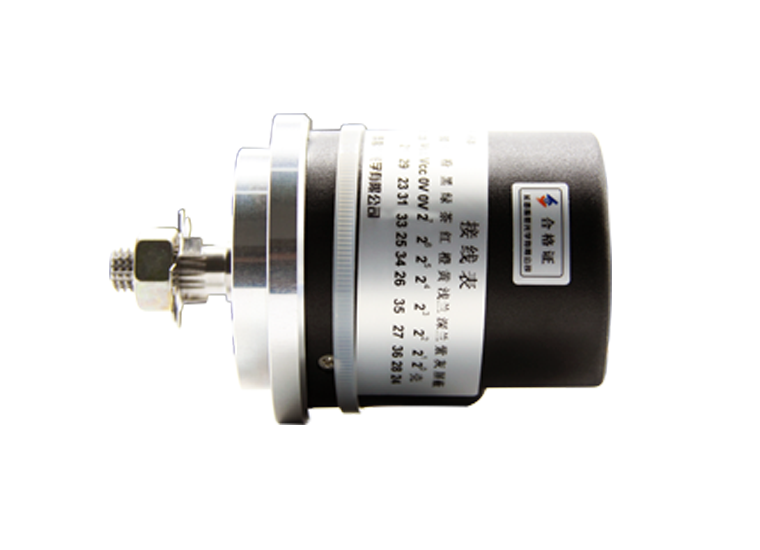

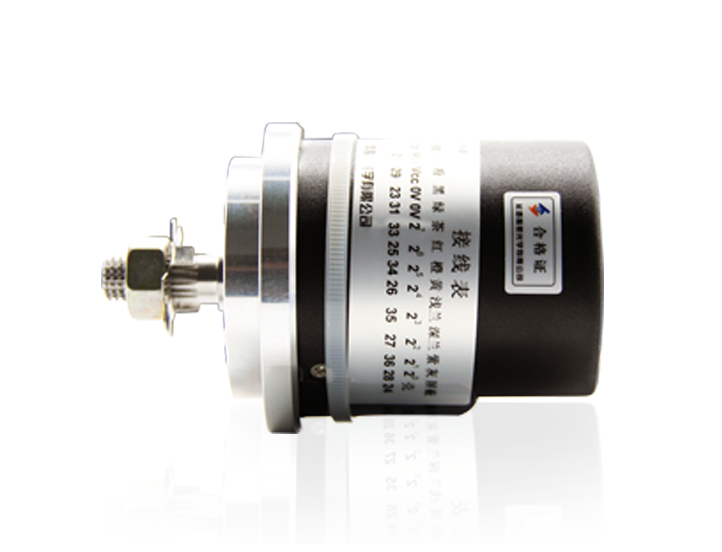

Optical encoder disks
Options:
- Model: A-FZX-3J- 180
- Dimension: φ65*101.5
- Shaft size /aperture:Zigzag shaft/M10
- Max. rotate speed:5000
- Max. shaft load Axial / Radial : 50/50
- Protection level:IP65
Basic Info
| Model No. | A-FZX-3J- 180 |
|---|---|
| Brand Name | Yuheng |
| Application | Textile machinery |
| Feature | dustproof, waterproof , metal grating, impact resistance, vibration resistance |
| Operating temperature | -30～+85 |
| Shaft type | Solid shaft |
| Connection type | Rabbet-positioning Threaded connection |
Product description
Encoder is a very common human-computer interaction information input component, which is mainly divided into two categories: one is photoelectric encoder, the other is contact encoder.
Application
Textile machinery
Feature
dustproof, waterproof , metal grating, impact resistance, vibration resistance
Model
［unit］
A-FZX-3J- 180
Mechanical parameter
Dimension
［mm］
φ65*101.5
Shaft type
Solid shaft
Shaft size /aperture
φ［mm］
Zigzag shaft/M10
Max. rotate speed
［r/min］
5000
Max. shaft load
Axial / Radial
［N］
50/50
Operating temperature
［℃］
-30～+85
Protection level
IP65
Connection type
Rabbet-positioning
Threaded connection
resolution
［P/r］
180
Electrical parameter
Output pattern
Open Collector
Supply voltage
DC［V］
8～26
Response frequency / Response rate
［KHz］
10
Optional
Optical encoder disks
Options:
- Model: A-FZX-3J- 180
- Dimension: φ65*101.5
- Shaft size /aperture:Zigzag shaft/M10
- Max. rotate speed:5000
- Max. shaft load Axial / Radial : 50/50
- Protection level:IP65
