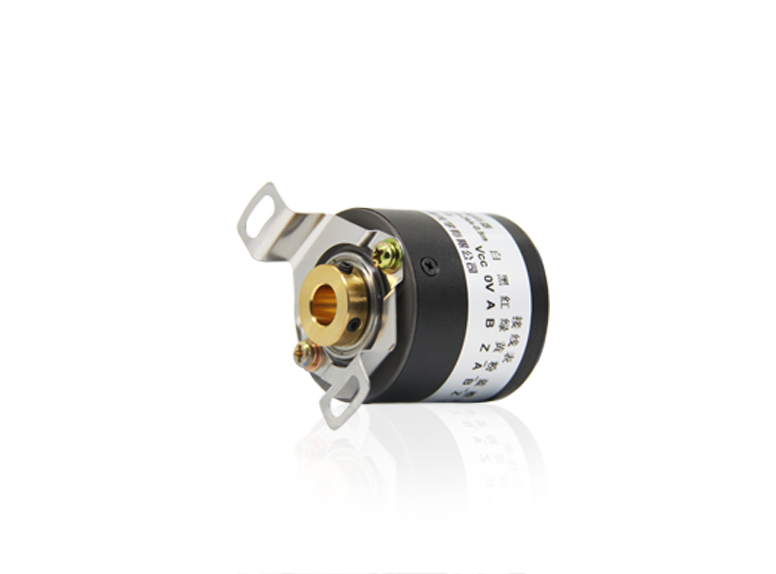

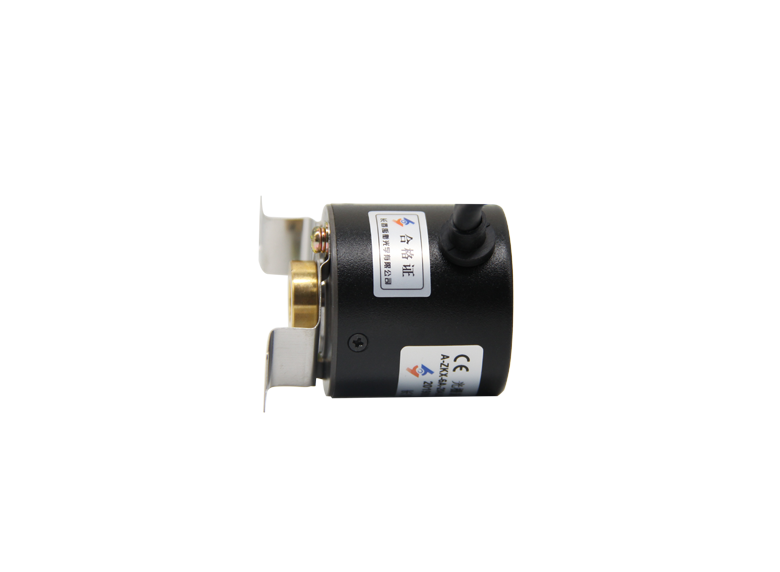

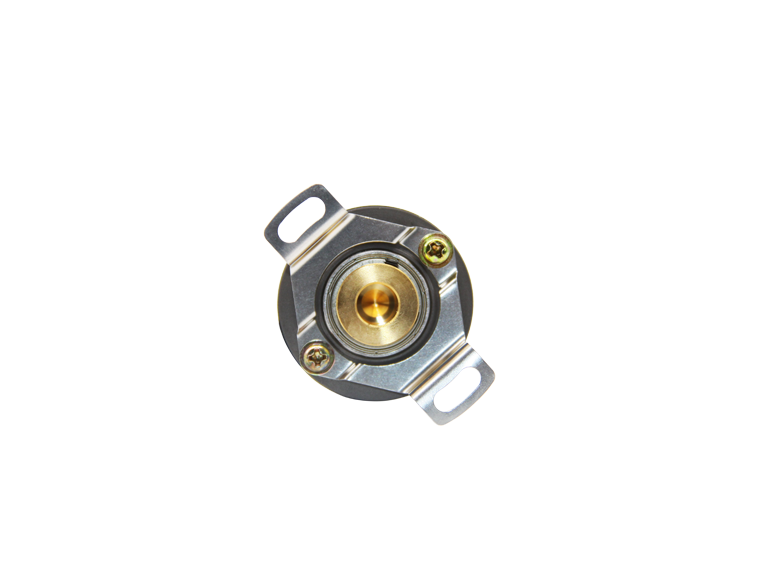

Optical encoder robotc encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed :［r/min］ 5000
- Max. shaft load Axial / Radial :［N］ 10/20
- resolution :［P/r］ 1000
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 300
Basic Info
| Model No. | A-ZKX-6A-100BM-G05E |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools、printing machines |
| Feature | small 、strong anti-interference |
| Model | ［unit］ A-ZKX-6A-100BM-G05E |
| Dimension | ［mm］ φ38*46 |
| Shaft type | Blind Hollow Shaft |
Product description
Encoder, heavy-duty encoder, can be customized according to customer needs, provide high-precision, high-resolution, high-precision sensor solutions, welcome to visit our factory.. can be non-standard customized. Single ring, no damage to the core ring. ToFI single ring, high-precision photoelectric induction technology.
| Application | CNC machine tools、printing machines | |
| Feature | small 、strong anti-interference | |
| Model | ［unit］ | A-ZKX-6A-100BM-G05E |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ38*46 |
|
Shaft type |
Blind Hollow Shaft | |
|
Shaft size /aperture |
φ［mm］ | 8 |
|
Max. rotate speed |
［r/min］ | 5000 |
|
Max. shaft load Axial / Radial |
［N］ | 10/20 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP54 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 1000 |
|
Electrical parameter |
||
|
Output pattern |
Voltage | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Optical encoder robotc encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed :［r/min］ 5000
- Max. shaft load Axial / Radial :［N］ 10/20
- resolution :［P/r］ 1000
- Supply voltage :DC［V］ 5
- Response frequency / Response rate :［KHz］ 300
