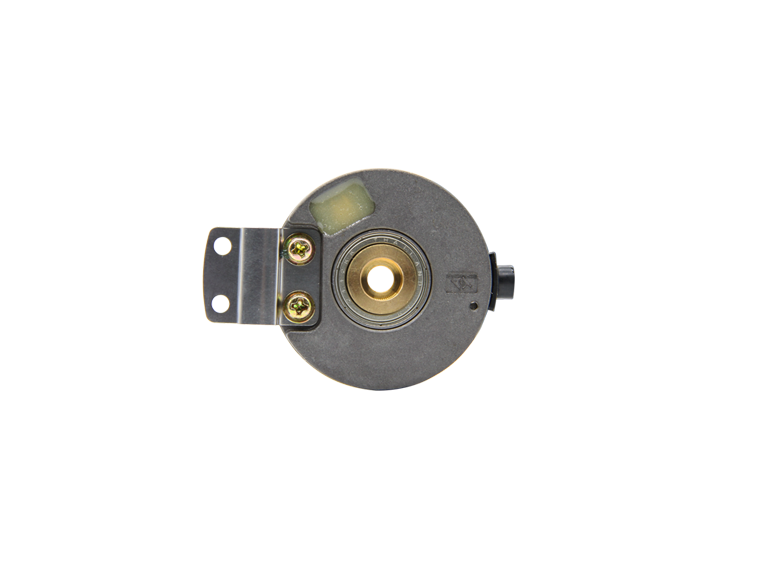

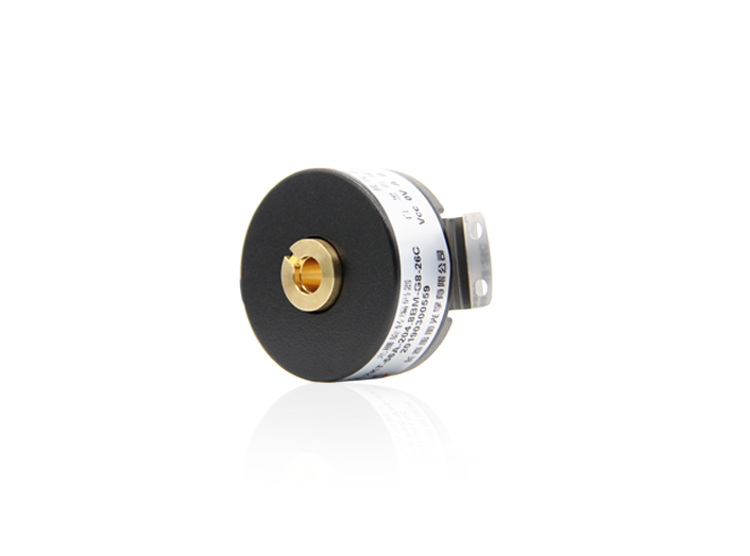

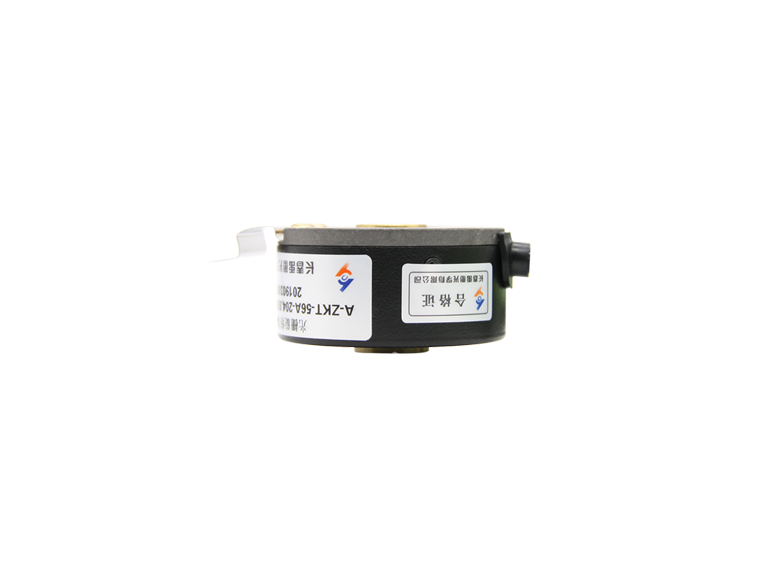

Optical encoder rotary encoder
Options:
- Max. rotate speed ：［r/min］ 500
- Max. rotate speed ：［r/min］ 500
- Max. rotate speed ：［r/min］ 500
- Protection level ： IP40
- resolution ：［P/r］ 2048
- Supply voltage ：DC［V］ 8～26
Basic Info
| Model No. | A-ZKT-56A -204.8BM-G8~26C |
|---|---|
| Brand Name | Yuheng |
| Application | Elevator AC permanent magnet synchronous door machine |
| Feature | thin、high resolution |
| Model | A-ZKT-56A -204.8BM-G8～26C? |
| Dimension | ［mm］ φ46*25.5 |
| Shaft type | Hollow shaft |
Product description
Our company is a modern high-tech enterprise integrating the design, development, production, sales and service of rotary encoder manufacturers and related products.
| Application | Elevator AC permanent magnet synchronous door machine | |
| Feature | thin、high resolution | |
| Model | ［unit］ | A-ZKT-56A -204.8BM-G8～26C |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ46*25.5 |
|
Shaft type |
Hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 8/Outer cone axis 10/Inner cone axis 9 |
|
Max. rotate speed |
［r/min］ | 500 |
|
Max. shaft load Axial / Radial |
［N］ | 10/10 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 2048 |
|
Electrical parameter |
||
|
Output pattern |
Open Collector |
|
|
Supply voltage |
DC［V］ | 8～26 |
| Response frequency / Response rate | ［KHz］ | 30 |
|
Optional |
Optical encoder rotary encoder
Options:
- Max. rotate speed ：［r/min］ 500
- Max. rotate speed ：［r/min］ 500
- Max. rotate speed ：［r/min］ 500
- Protection level ： IP40
- resolution ：［P/r］ 2048
- Supply voltage ：DC［V］ 8～26
