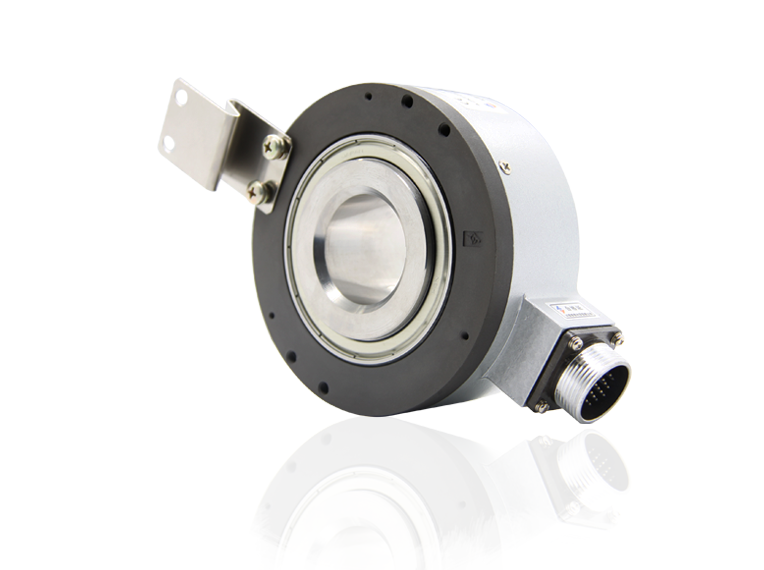

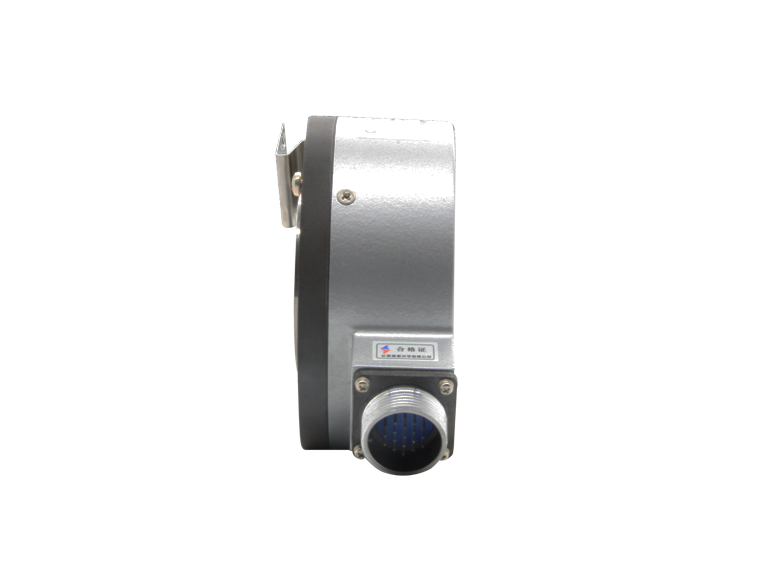

Optical encoder vex encoder
Options:
- Shaft size /aperture :φ［mm］ 45
- Operating temperature :［℃］ -20～+85
- Protection level : IP50
- resolution: ［P/r］ 512
- Supply voltage: DC［V］ 12
- Response frequency / Response rate :［KHz］ 300
Basic Info
| Model No. | A-ZKT-D120-H45-51.2B-C12F |
|---|---|
| Brand Name | Yuheng |
| Application | Elevator |
| Feature | wide operating temperature range |
| Model | ［unit］ A-ZKT-D120-H45-51.2B-C12F |
| Dimension | ［mm］ φ120x54 |
| Shaft type | Hollow shaft |
Product description
Encoder is a kind of hardware software equipment which can convert analog video signal (such as bit stream) or data into digital signal for communication, transmission and storage. Encoder is widely used.
| Application | Elevator | |
| Feature | wide operating temperature range | |
| Model | ［unit］ | A-ZKT-D120-H45-51.2B-C12F |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ120x54 |
|
Shaft type |
Hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 45 |
|
Max. rotate speed |
［r/min］ | 3000 |
|
Max. shaft load Axial / Radial |
［N］ | 40/60 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
IP50 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 512 |
|
Electrical parameter |
||
|
Output pattern |
Push-pull | |
|
Supply voltage |
DC［V］ | 12 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Optical encoder vex encoder
Options:
- Shaft size /aperture :φ［mm］ 45
- Operating temperature :［℃］ -20～+85
- Protection level : IP50
- resolution: ［P/r］ 512
- Supply voltage: DC［V］ 12
- Response frequency / Response rate :［KHz］ 300
