Basic Info
| Model No. | JKR-7-H20-23PB-G05FD |
|---|---|
| Brand Name | Yuheng |
| Application | Collaborative jointsrobot、automation |
| Feature | thin、high resolution、 |
| Model | [unit] JKR-7-H20-23PB-G05FD |
| Dimension | [mm] φ50*14.5 |
| Shaft type | hollow shaft |
Product description

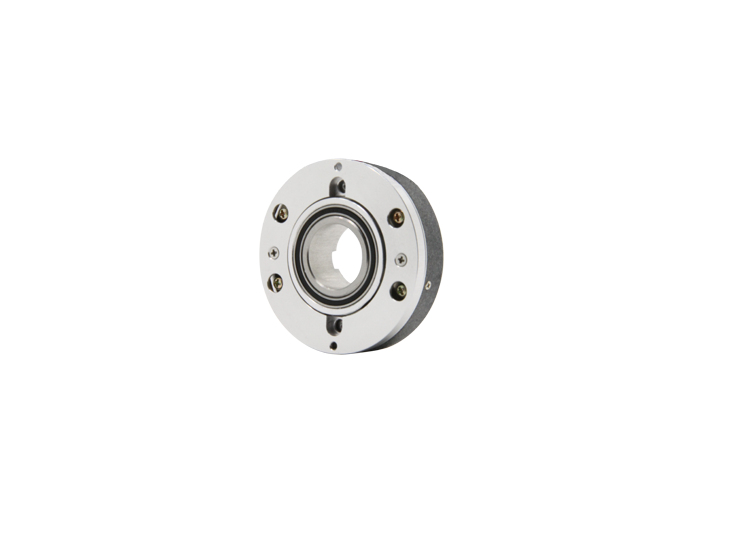

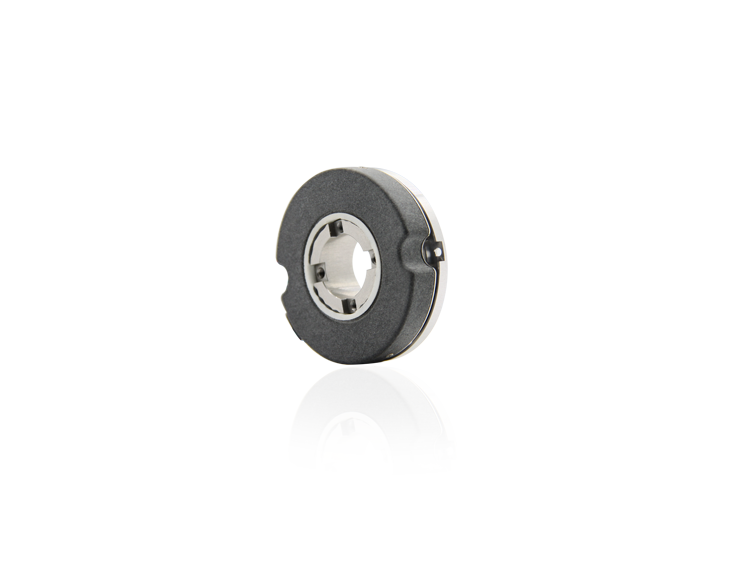

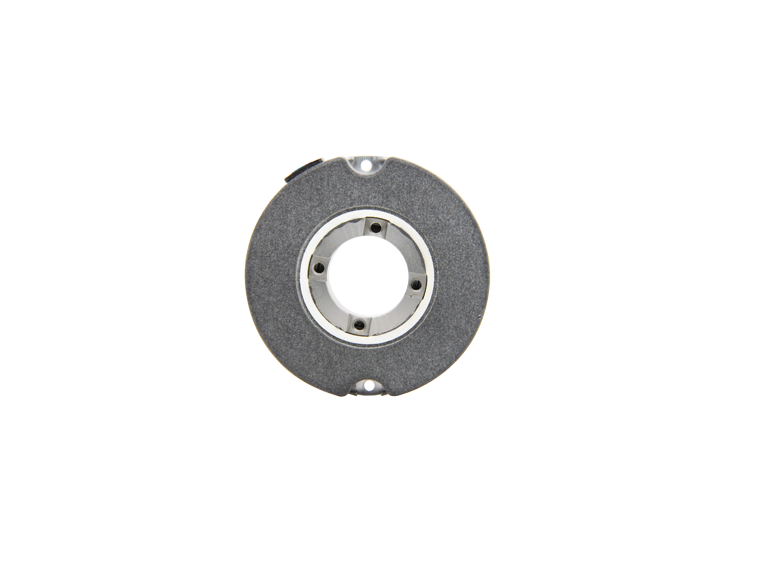

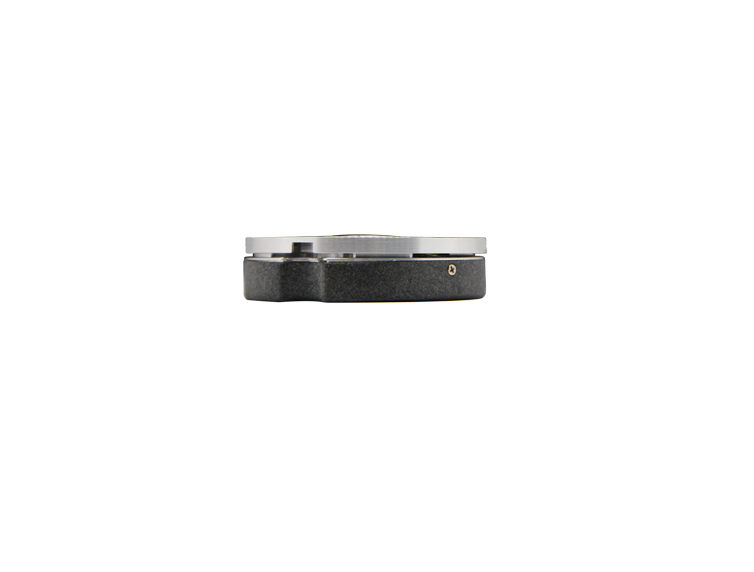

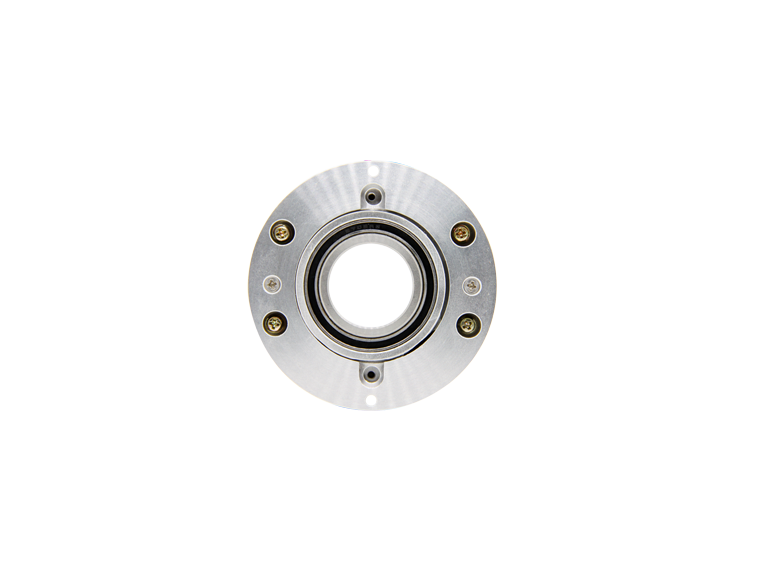

The absolute encoder offers a high performance solution for your absolute feedback needs. It provides maintenance-free feedback thanks to its innovative battery-free and gear-free multi-turn technology. This encoder is especially suited for applications where position information must be retained after loss of system power. Its rugged magnetic technology and high IP rating make the Model an excellent choice, even in tough industrial environments.





| Application | Collaborative jointsrobot、automation | |
| Feature | thin、high resolution、 | |
| Model | [unit] | JKR-7-H20-23PB-G05FD |
| Mechanical parameter | ||
| Dimension | [mm] | φ50*14.5 |
|
Shaft type |
hollow shaft |
|
|
Shaft size /aperture |
φ[mm] | 20 |
|
Max. rotate speed |
[r/min] | 100 |
|
Max. shaft load Axial / Radial |
[N] | 10/10 |
|
Operating temperature |
[℃] | -20~+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
[P/r] | 223 |
|
Electrical parameter |
||
|
Output pattern |
FD | |
|
Supply voltage |
DC[V] | 5 |
| Response frequency / Response rate | [KHz] | 2.5 |
|
