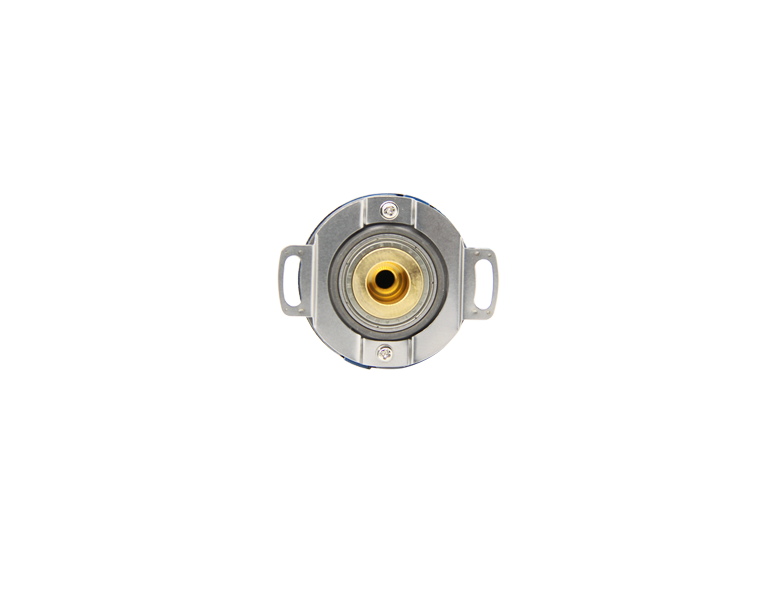

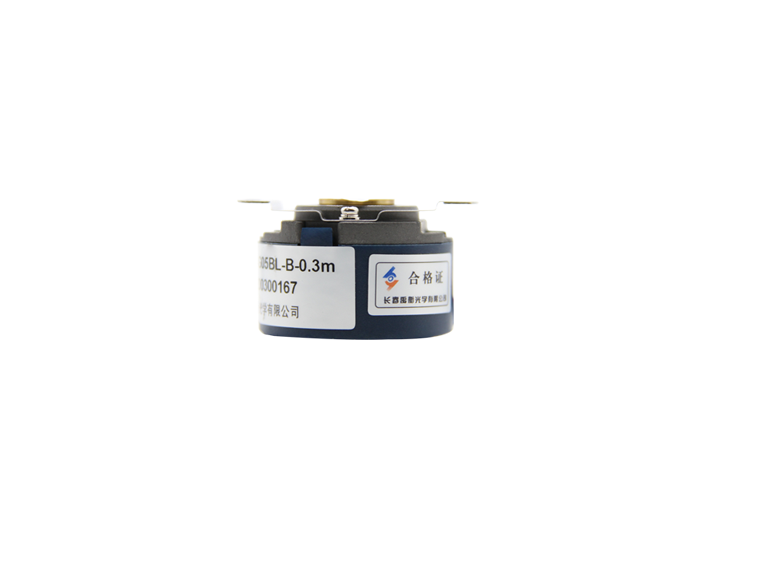

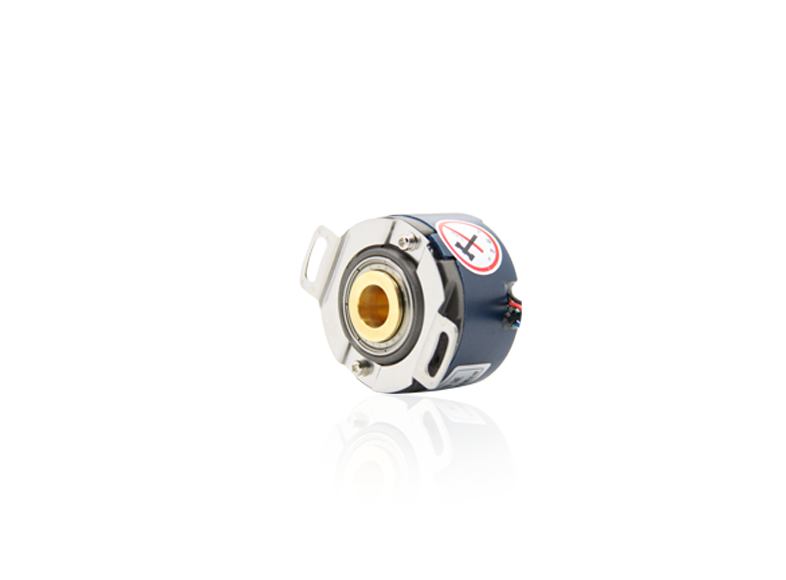

Rotary encoder with push button
Options:
- Dimension ：［mm］ φ37*26.5
- Max. rotate speed ：［r/min］ 6000
- Max. shaft load Axial / Radial ： ［N］ 10/10
- Protection level ： IP40
- resolution ：［P/r］ 222
- Supply voltage ：DC［V］ 5
Basic Info
| Model No. | JKD-4-22PB-G05BL |
|---|---|
| Brand Name | Yuheng |
| Application | Servo motor、automation 、machine tools、carving machine |
| Feature | □60Servo motor、high resolution，economic，strong anti-interference |
| Model | ［unit］ JKD-4-22PB-G05BL |
| Shaft type | Inner cone/Outer cone |
| Shaft size /aperture | φ［mm］ 9（deep 13.5） |
Product description
The precise measurement results of the rotary encoder, the magnetic rotary encoder is impressive with its unique accuracy, which can achieve a measurement accuracy of <0.1°. And can achieve extremely high resolution, up to 16-bit single-turn and multi-turn!
| Application | Servo motor、automation 、machine tools、carving machine | |
| Feature | □60Servo motor、high resolution，economic，strong anti-interference | |
| Model | ［unit］ | JKD-4-22PB-G05BL |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ37*26.5 |
|
Shaft type |
Inner cone/Outer cone | |
|
Shaft size /aperture |
φ［mm］ | 9（deep 13.5） |
|
Max. rotate speed |
［r/min］ | 6000 |
|
Max. shaft load Axial / Radial |
［N］ | 10/10 |
|
Operating temperature |
［℃］ | -20～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 222 |
|
Electrical parameter |
||
|
Output pattern |
BISS | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 4 |
|
Optional |
Rotary encoder with push button
Options:
- Dimension ：［mm］ φ37*26.5
- Max. rotate speed ：［r/min］ 6000
- Max. shaft load Axial / Radial ： ［N］ 10/10
- Protection level ： IP40
- resolution ：［P/r］ 222
- Supply voltage ：DC［V］ 5
