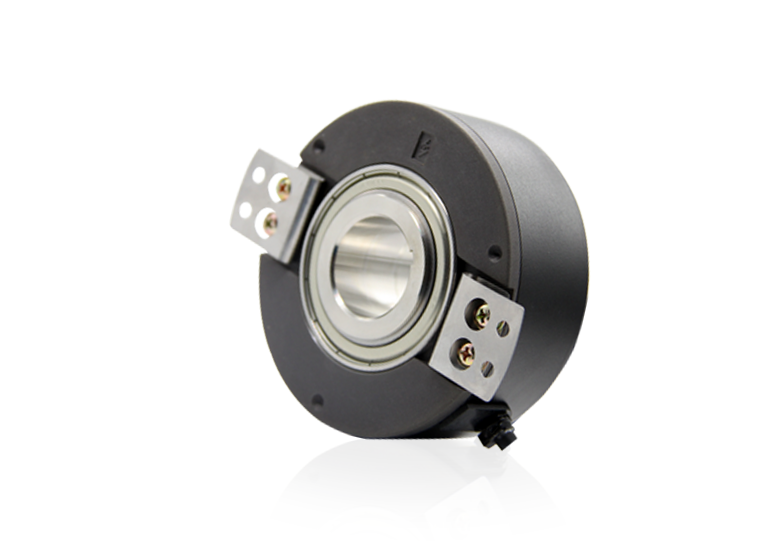

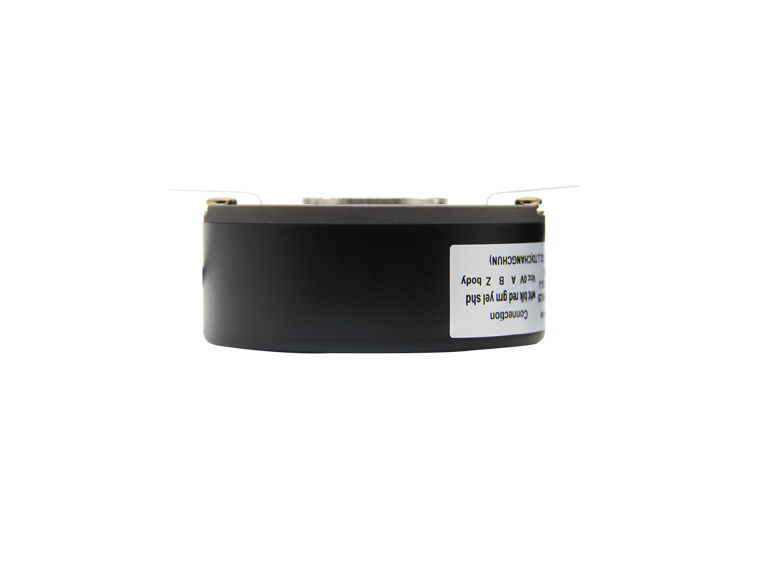

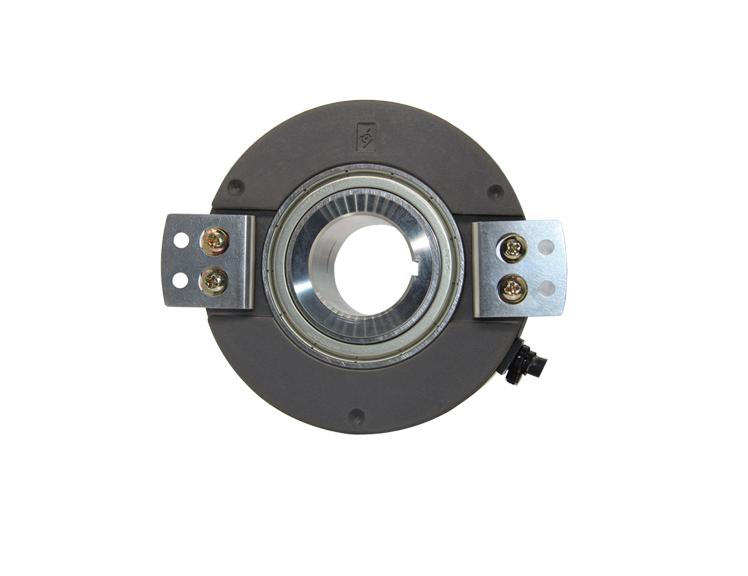

Rotary optical encoder encoder
Options:
- Shaft size /aperture：φ［mm］ 30
- Max. rotate speed ：［r/min］ 3300
- Max. shaft load Axial / Radial?： ［N］ 20/40
- Operating temperature ：［℃］ -30～+85
- resolution ：［P/r］ 512
- Supply voltage： DC［V］ 5
Basic Info
| Model No. | A-ZKT-D100 -H30-51.2BM0.25-G05L |
|---|---|
| Brand Name | Yuheng |
| Application | Elevator Feature metal grating、high reliability、long life Model ［unit］ A-ZKT-D100 -H30-51.2BM0.25-G05L Mechanical parameter Dimension ［mm］ φ100*43 Shaft type Hollow shaft Shaft size /aperture φ［mm］ 30 Max. rotate speed ［r/min］ 3300 M |
| Feature | metal grating、high reliability、long life |
| Model | ［unit］ A-ZKT-D100 -H30-51.2BM0.25-G05L |
| Dimension | ［mm］ φ100*43 |
| Shaft type | Hollow shaft |
Product description
Encoder: encoder is a professional manufacturer of encoder, encoder shaft type, hole type, signal output mode, resolution can be combined with technical application requirements, professional manufacturers, professional services.
| Application | Elevator | |
| Feature | metal grating、high reliability、long life | |
| Model | ［unit］ | A-ZKT-D100 -H30-51.2BM0.25-G05L |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ100*43 |
|
Shaft type |
Hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 30 |
|
Max. rotate speed |
［r/min］ | 3300 |
|
Max. shaft load Axial / Radial |
［N］ | 20/40 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 512 |
|
Electrical parameter |
||
|
Output pattern |
Line driver | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 100 |
|
Optional |
Rotary optical encoder encoder
Options:
- Shaft size /aperture：φ［mm］ 30
- Max. rotate speed ：［r/min］ 3300
- Max. shaft load Axial / Radial?： ［N］ 20/40
- Operating temperature ：［℃］ -30～+85
- resolution ：［P/r］ 512
- Supply voltage： DC［V］ 5
