Resolution is also known as digit, pulse number and several wire system (it will be called in absolute encoder). For incremental encoder, it is the number of pulses output by the encoder when the shaft rotates for one revolution. For absolute encoder, it is equivalent to how many parts a revolution 360 ° is divided into. For example, when the resolution is 256p / R, it is equivalent to dividing a revolution 360 ° into 256 parts, and the output is about 1.4 ° per revolution A code value. The unit of resolution is p / R.

Judge the quality of rotary encoder

1) When the encoder is stationary, the voltage of a and B phases can be measured to be about 15V or 0V.

2) But only with a multimeter, it is impossible to accurately check whether the encoder is completely normal.

When the encoder is slightly rotated, the above two voltages can be obtained in turn. The voltage of a - and B - can be 0 V or - 15 V respectively.

3) The multimeter can only do a rough check. If the measurement result is too different from the above description, it can be preliminarily considered that the encoder has a fault. Because when it's normal,

Encoder is the output of high-frequency pulse signal, so it is recommended that you had better use oscilloscope to measure.

4) The method is: connect the output A-phase or B-phase signal of the encoder to the oscilloscope, and then rotate the encoder shaft.

If the high frequency 15V square wave pulse signal is observed on the oscilloscope at this time, then the encoder is good.

5) When the encoder rotates continuously, the output voltage is the average value of the RMS voltage, which may be only about 3-5v.

In addition, use the multimeter voltage to test whether the output is normal.

Application		Elevator、Servo motor
Feature		Sine-cosine、stable and reliable performance

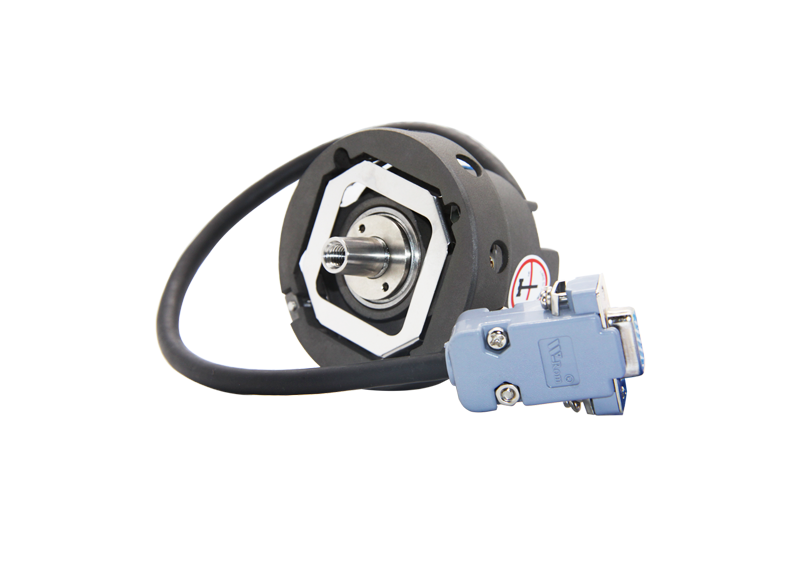

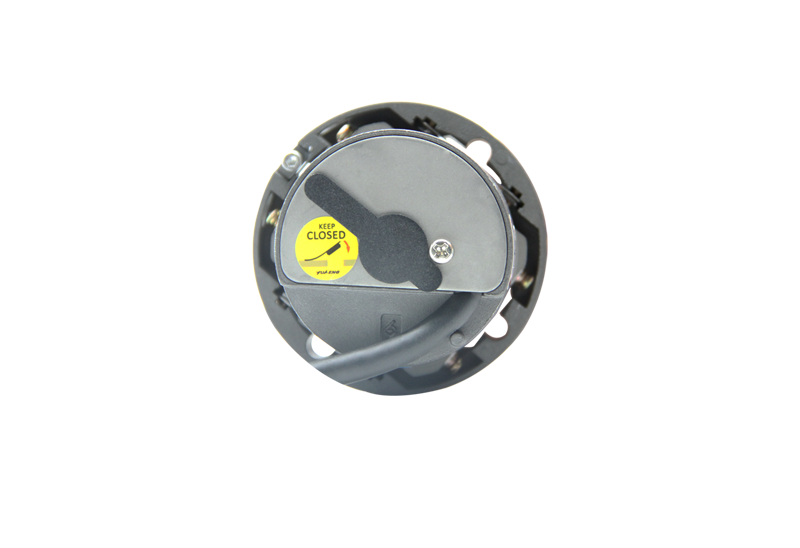

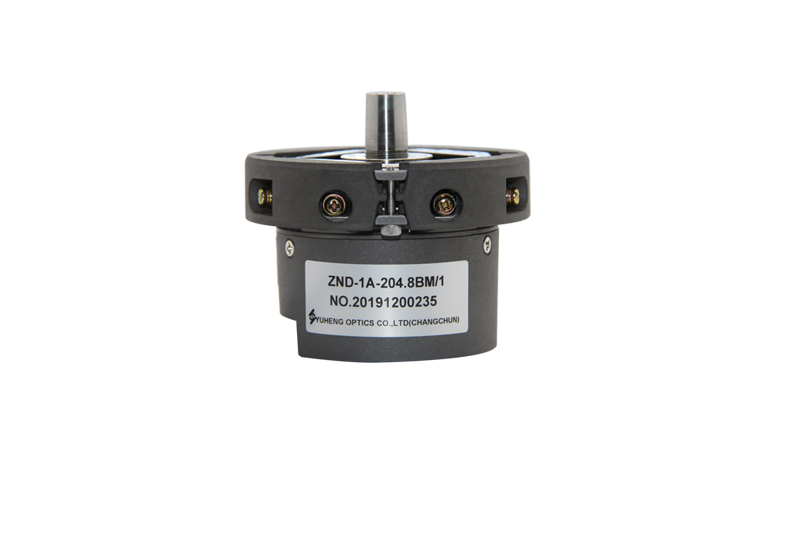

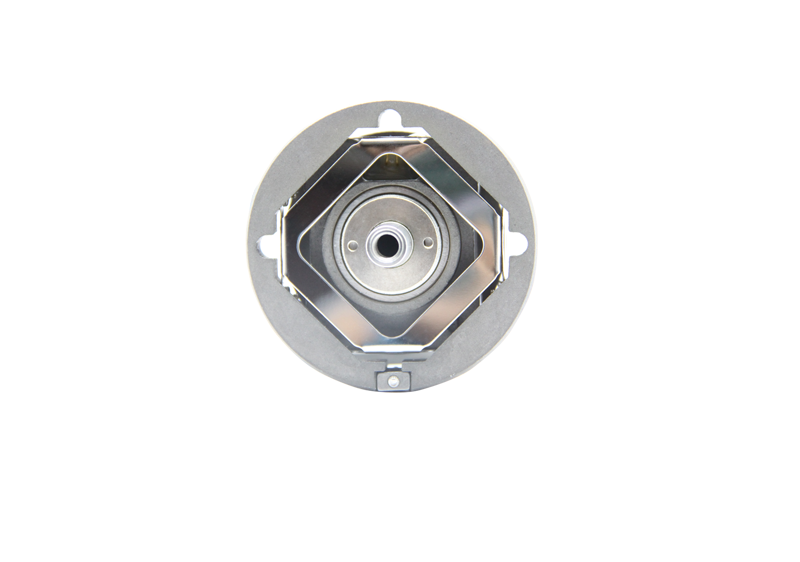

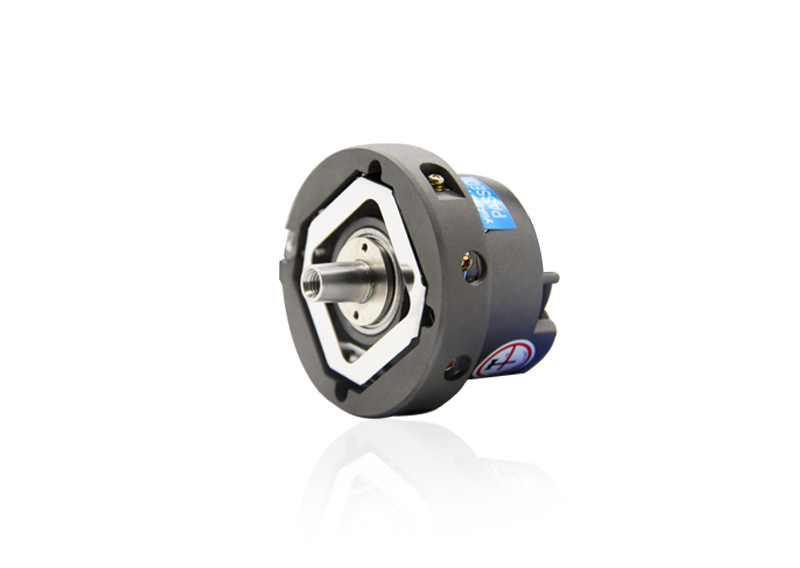

Model	［unit］	ZND-1A-204.8BM/1
Mechanical parameter
Dimension	［mm］	φ65*57.5
Shaft type		Outer cone
Shaft size /aperture	φ［mm］	10
Max. rotate speed	［r/min］	500
Max. shaft load Axial / Radial	［N］	19.6/9.8
Operating temperature	［℃］	-40～+100
Protection level		IP50
Connection type		Spring Plate
resolution	［P/r］	2048
Electrical parameter
Output pattern		Sine-cosine
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	17.06
Optional
