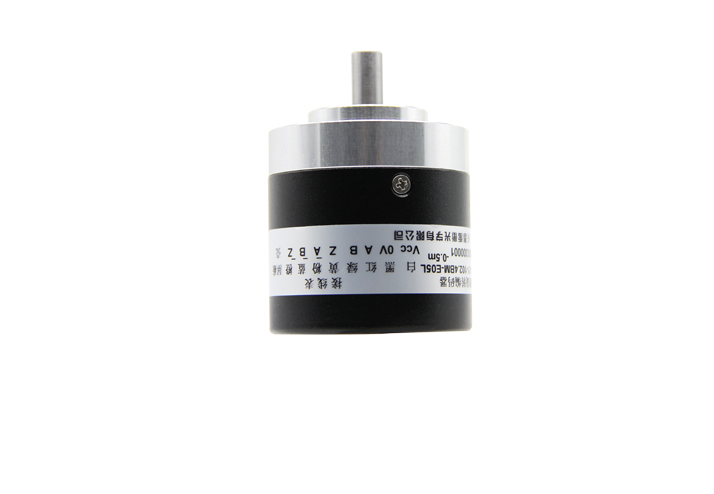

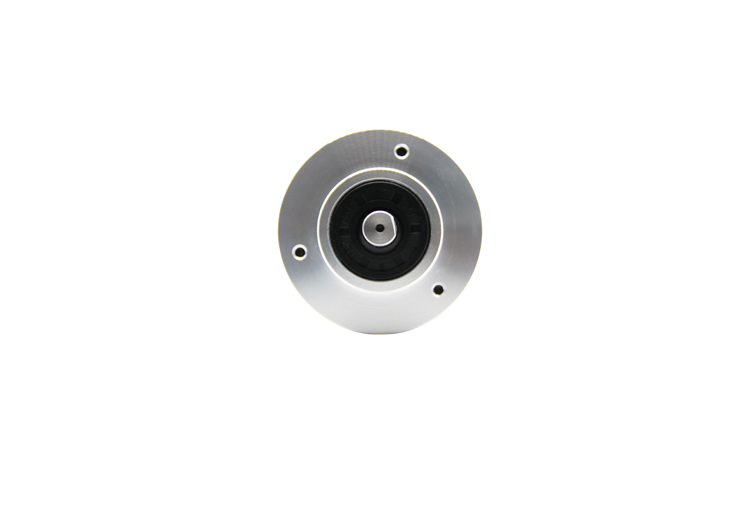

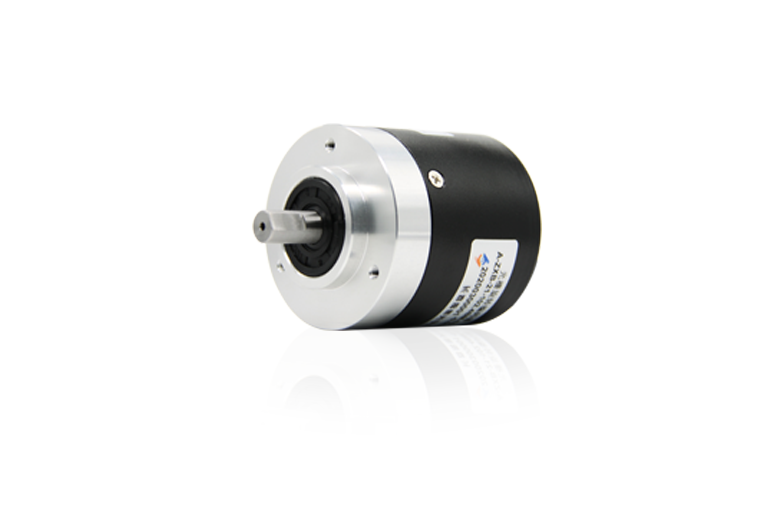

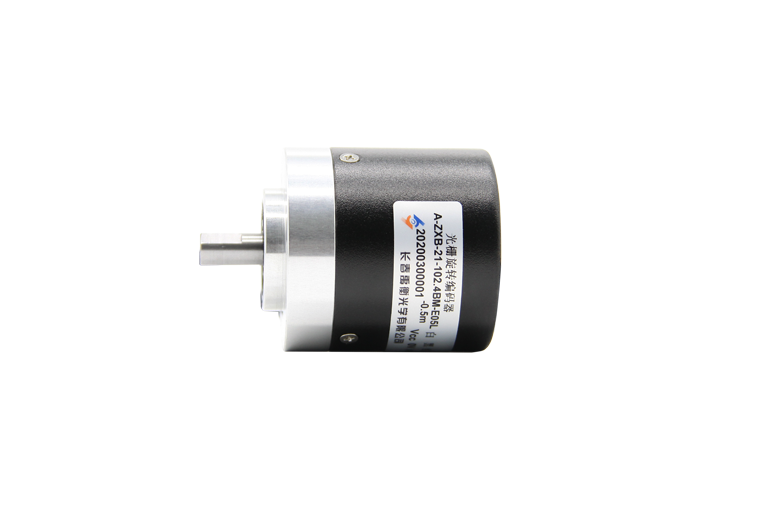

Sensor for optical encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed: ［r/min］ 5000
- Max. shaft load Axial / Radial?: ［N］ 30/50
- Operating temperature: ［℃］ -30～+85
- Protection level : IP54
- Supply voltage :DC［V］ 5
Basic Info
| Model No. | A-ZXB-21A-100BM-G05L |
|---|---|
| Brand Name | Yuheng |
| Application | Steel industry |
| Feature | high protection level、strong anti-interference、wide temperature range |
| Model | ［unit］ A-ZXB-21A-100BM-G05L?? |
| Dimension | ［mm］ φ50*60 |
| Shaft type | Solid shaft |
Product description
The binary code is arranged according to certain rules, such as 8421 code, gray code, etc., so that each group of code has a specific meaning (representing a certain number or control signal) is called coding. The logic circuit with encoding function is called encoder.
| Application | Steel industry | |
| Feature | high protection level、strong anti-interference、wide temperature range | |
| Model | ［unit］ | A-ZXB-21A-100BM-G05L |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ50*60 |
|
Shaft type |
Solid shaft |
|
|
Shaft size /aperture |
φ［mm］ | 8 |
|
Max. rotate speed |
［r/min］ | 5000 |
|
Max. shaft load Axial / Radial |
［N］ | 30/50 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP54 | |
|
Connection type |
Coupling | |
|
resolution |
［P/r］ | 1000 |
|
Electrical parameter |
||
|
Output pattern |
Line driver | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 300 |
|
Optional |
Sensor for optical encoder
Options:
- Shaft size /aperture: φ［mm］ 8
- Max. rotate speed: ［r/min］ 5000
- Max. shaft load Axial / Radial?: ［N］ 30/50
- Operating temperature: ［℃］ -30～+85
- Protection level : IP54
- Supply voltage :DC［V］ 5
