Encoder is a kind of equipment that can compile and convert signals (such as bitstream) or data into signals that can be used for communication, transmission and storage. Encoder converts angular displacement or linear displacement into electrical signal. The former is called code disk, and the latter is called code ruler.

Application		Steel industry
Feature		high protection level、strong anti-interference、wide temperature range

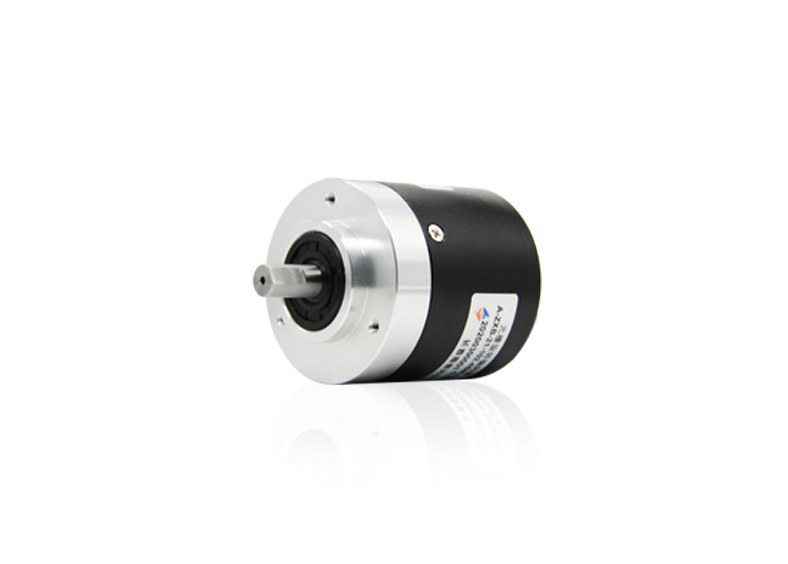

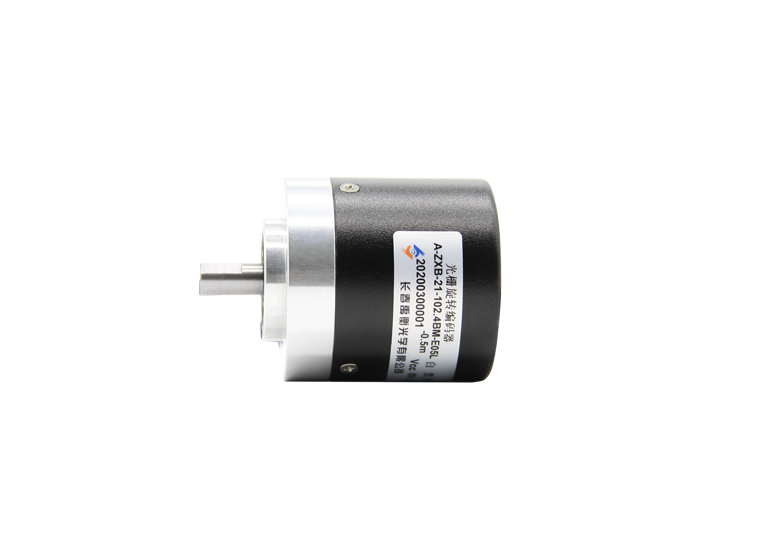

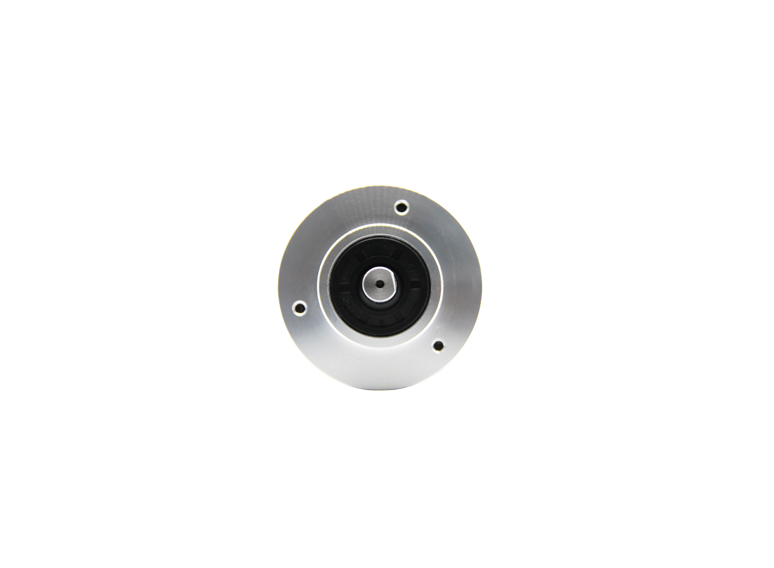

Model	［unit］	A-ZXB-21-102.4BM-E05L
Mechanical parameter
Dimension	［mm］	φ50*70
Shaft type		Solid shaft
Shaft size /aperture	φ［mm］	8
Max. rotate speed	［r/min］	5000
Max. shaft load Axial / Radial	［N］	30/50
Operating temperature	［℃］	-30～+85
Protection level		IP65
Connection type		Coupling
resolution	［P/r］	1024
Electrical parameter
Output pattern		Line driver
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	300
Optional
