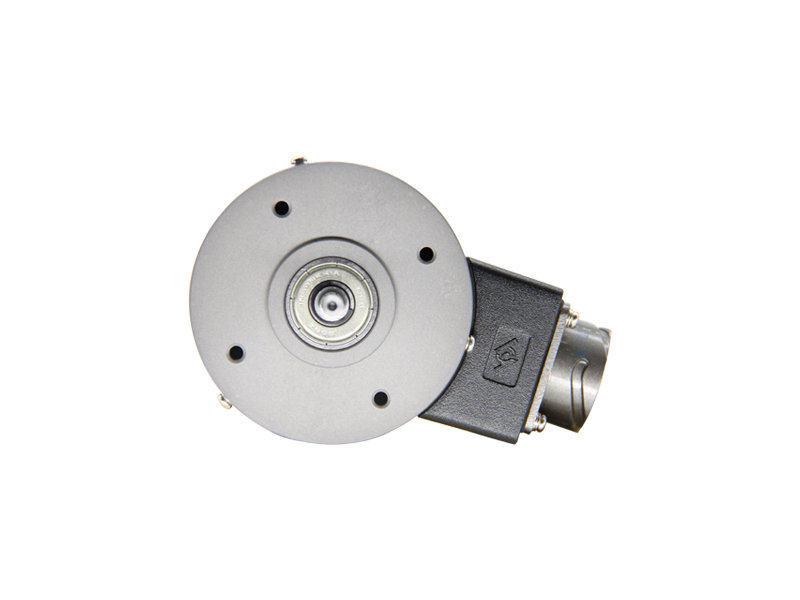

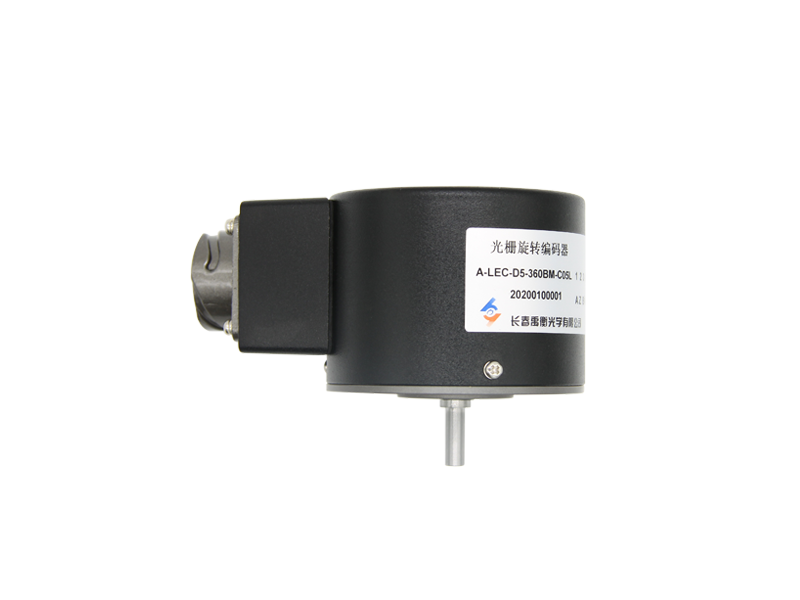

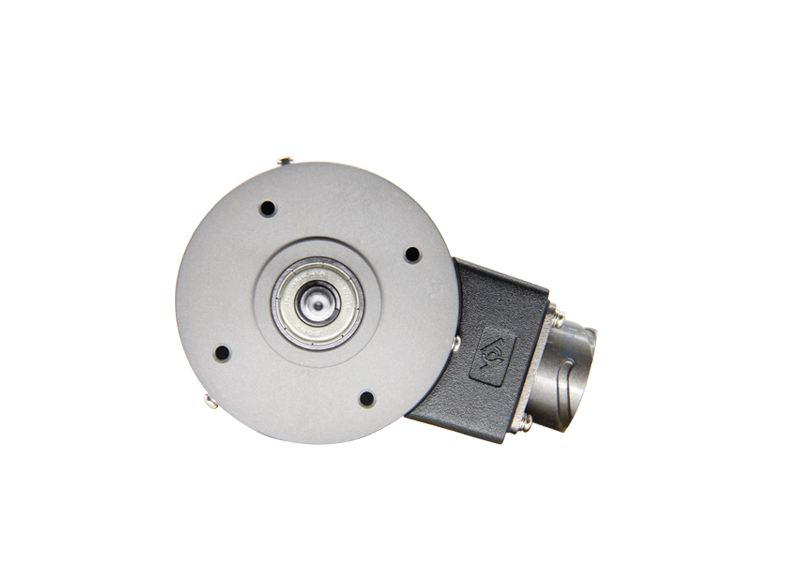

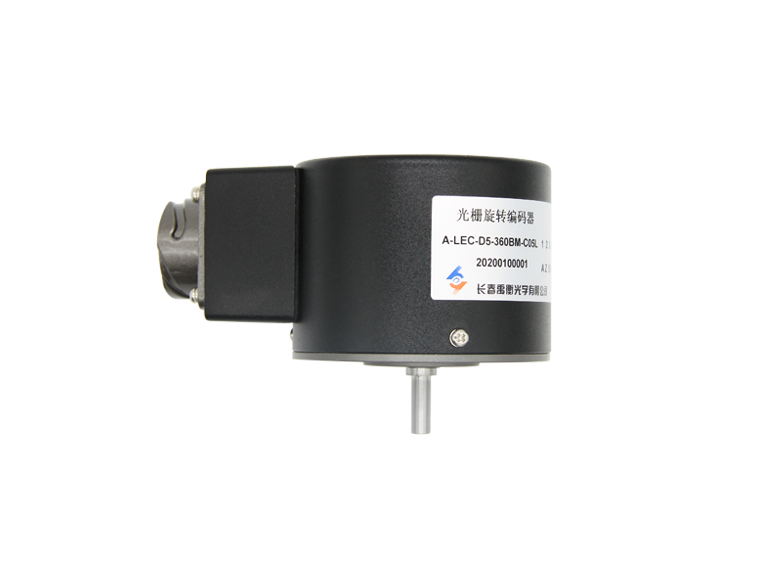

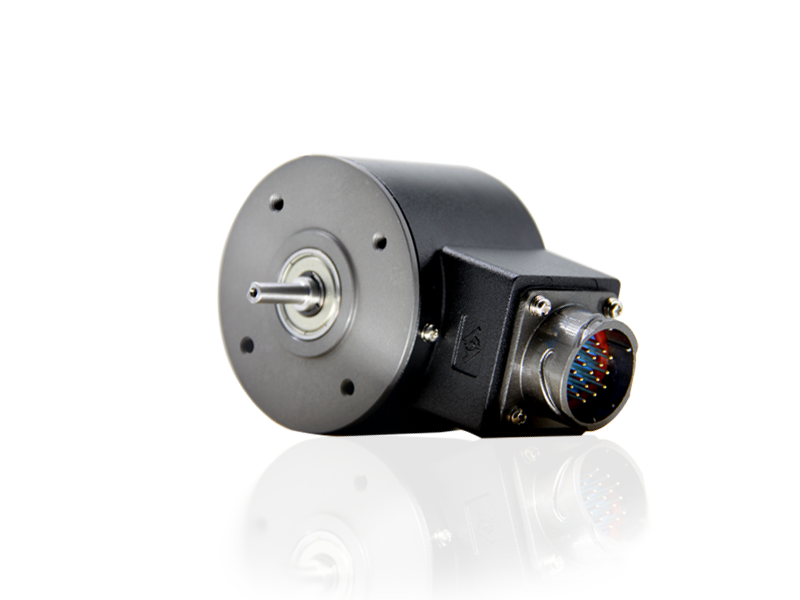

Single turn absolute encoder
Options:
- Dimension ：Ф66x71
- Max. rotate speed ：6000
- Max. shaft load Axial / Radial ：20/40
- Operating temperature：-30～+85
- Max. resolution： 80000
- Supply voltage ：5/8～26
- Response frequency / Response rate：300
Basic Info
| Model No. | A-LEC |
|---|---|
| Brand Name | Yuheng |
| Application | CNC machine tools、automation |
| Feature | small starting torque |
| Model | A-LEC |
| Shaft type | Solid shaft |
| Shaft size /aperture | 5/6/8/9.5/10 |
Product description
"The encoder is generally divided into incremental encoder and absolute value encoder. The output mode of incremental encoder includes RS422, push-pull HTL, push-pull and NPN collector open circuit output; the output code system of absolute value encoder is generally binary code, also has gray code, and the output logic includes positive logic, negative logic and SSI.
| Application | CNC machine tools、automation |
| Feature | small starting torque |
| Model | A-LEC |
|
Mechanical parameter
|
|
| Dimension | Ф66x71 |
|
Shaft type
|
Solid shaft
|
|
Shaft size /aperture
|
5/6/8/9.5/10 |
|
Max. rotate speed
|
6000 |
|
Max. shaft load
Axial / Radial
|
20/40 |
|
Operating temperature
|
-30～+85 |
|
Protection level
|
IP54 |
|

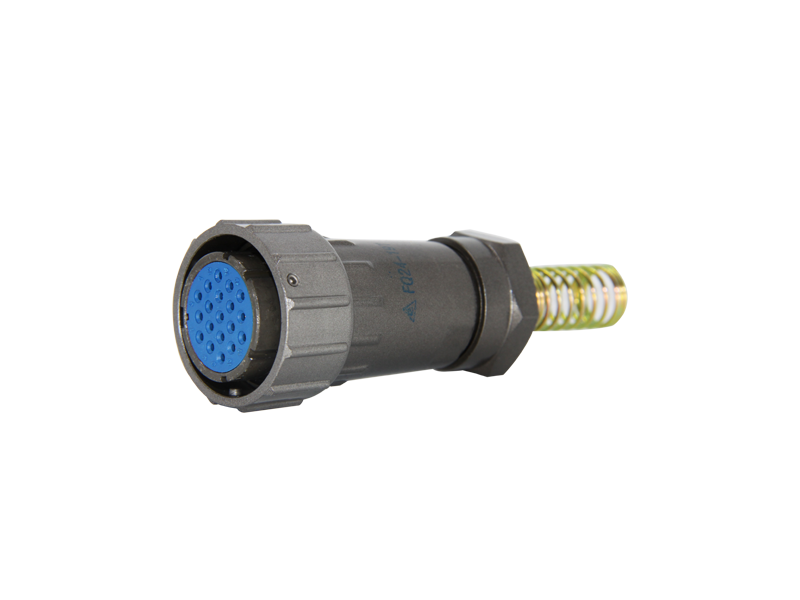

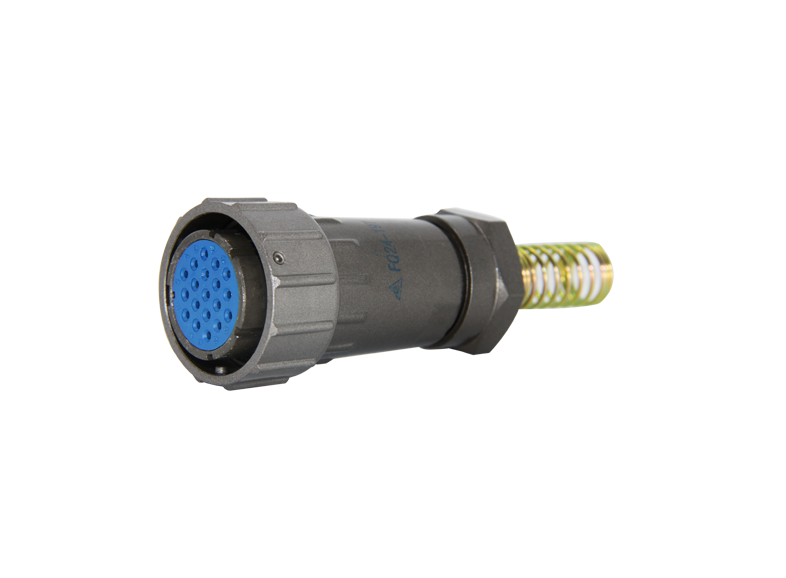

Connection type
|
Coupling |
|
Max. resolution
|
80000 |
|
Electrical parameter
|
|
|
Output pattern
|
Line driver/Push-pull/
Voltage/open circuit
|
|
Supply voltage
|
5/8～26 |
| Response frequency / Response rate | 300 |
|
Optional
|
Protection level IP65 |
Single turn absolute encoder
Options:
- Dimension ：Ф66x71
- Max. rotate speed ：6000
- Max. shaft load Axial / Radial ：20/40
- Operating temperature：-30～+85
- Max. resolution： 80000
- Supply voltage ：5/8～26
- Response frequency / Response rate：300
