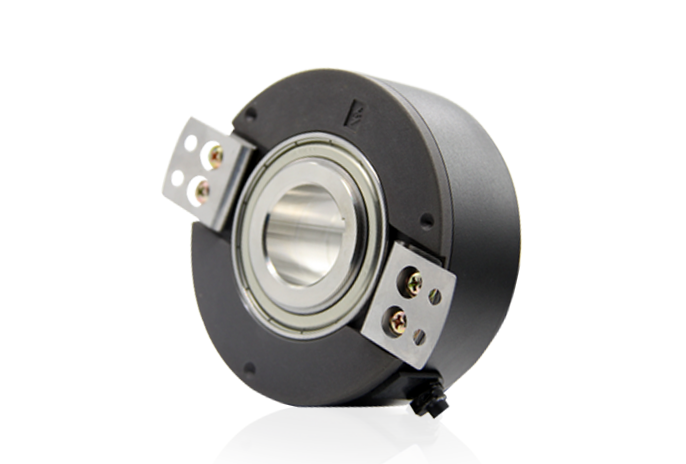

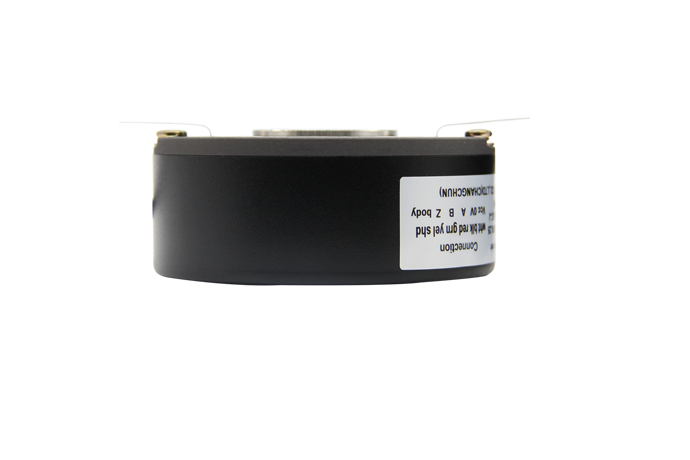

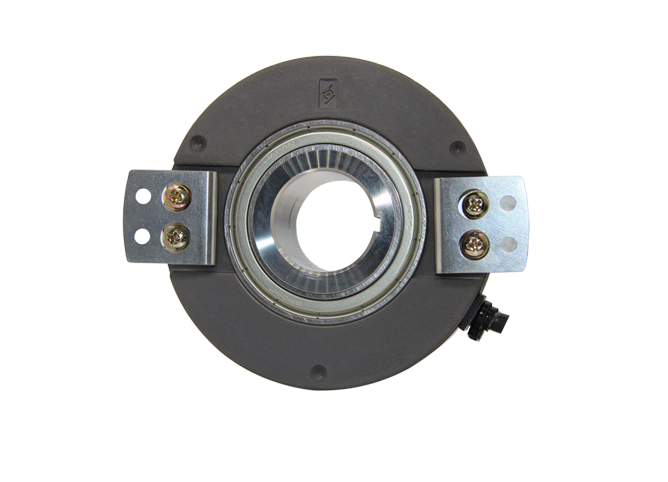

Small optical encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 30
- Max. rotate speed :［r/min］ 3300
- Max. shaft load Axial / Radial : ［N］ 20/40
- resolution :［P/r］ 1024
- Supply voltage: DC［V］ 5
- Response frequency / Response rate :［KHz］ 100
Basic Info
| Model No. | A-ZKT-D100M-H30-102.4BM0.25-C05L |
|---|---|
| Brand Name | Yuheng |
| Application | Elevator |
| Feature | metal grating、high reliability、long life |
| Model | ［unit］ A-ZKT-D100M-H30-102.4BM0.25-C05L |
| Dimension | ［mm］ φ100*43 |
| Shaft type | Hollow shaft |
Product description
Our company is a research and development, production, sales agent of science and technology enterprises, the main incremental encoder, industrial encoder, photoelectric encoder, rotary encoder, absolute value encoder.
| Application | Elevator | |
| Feature | metal grating、high reliability、long life | |
| Model | ［unit］ | A-ZKT-D100M-H30-102.4BM0.25-C05L |
| Mechanical parameter | ||
| Dimension | ［mm］ | φ100*43 |
|
Shaft type |
Hollow shaft |
|
|
Shaft size /aperture |
φ［mm］ | 30 |
|
Max. rotate speed |
［r/min］ | 3300 |
|
Max. shaft load Axial / Radial |
［N］ | 20/40 |
|
Operating temperature |
［℃］ | -30～+85 |
|
Protection level |
IP40 | |
|
Connection type |
Spring Plate | |
|
resolution |
［P/r］ | 1024 |
|
Electrical parameter |
||
|
Output pattern |
Line driver | |
|
Supply voltage |
DC［V］ | 5 |
| Response frequency / Response rate | ［KHz］ | 100 |
|
Optional |
Small optical encoder encoder
Options:
- Shaft size /aperture :φ［mm］ 30
- Max. rotate speed :［r/min］ 3300
- Max. shaft load Axial / Radial : ［N］ 20/40
- resolution :［P/r］ 1024
- Supply voltage: DC［V］ 5
- Response frequency / Response rate :［KHz］ 100
