By calculating the number of output pulses per second of photoelectric encoder, the current motor speed can be reflected. In addition, in order to judge the direction of rotation, the encoder can also provide two optical code outputs with phase difference of 90 ° to determine

The principle of capacitive encoder is the same as that of mature, low cost and precise digital vernier caliper. The capacitance encoder adopts the form of rod or line, one is located on the fixed element and the other is located on the movable element, forming a variable capacitance configured as a transmitter receiver pair.

Application		Servo motor
Feature		small、thin、multiple installation methods、high resolution

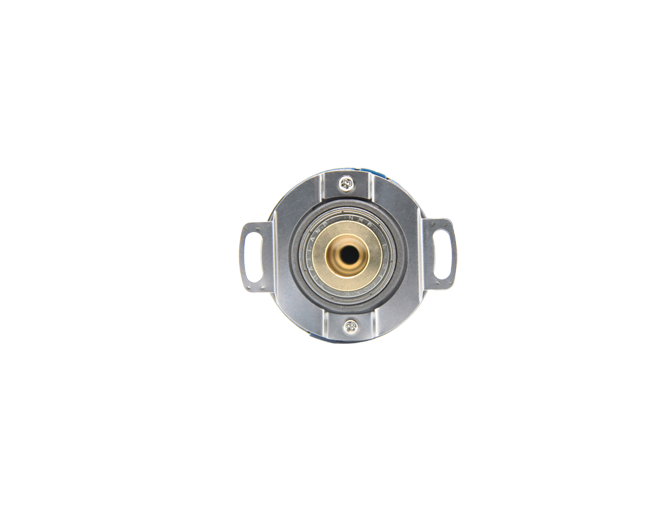

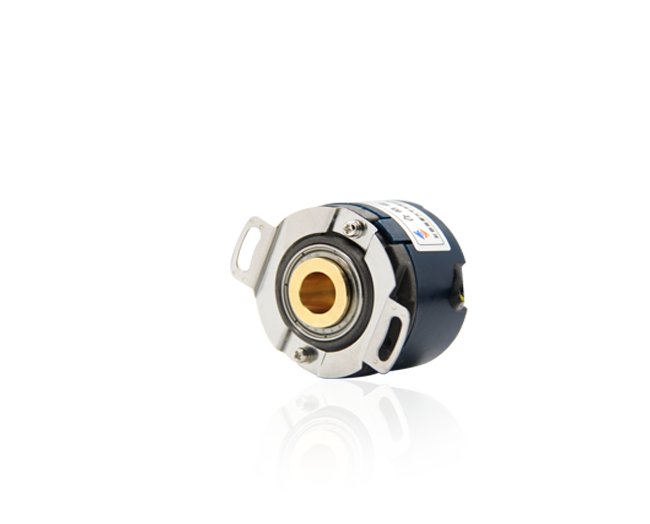

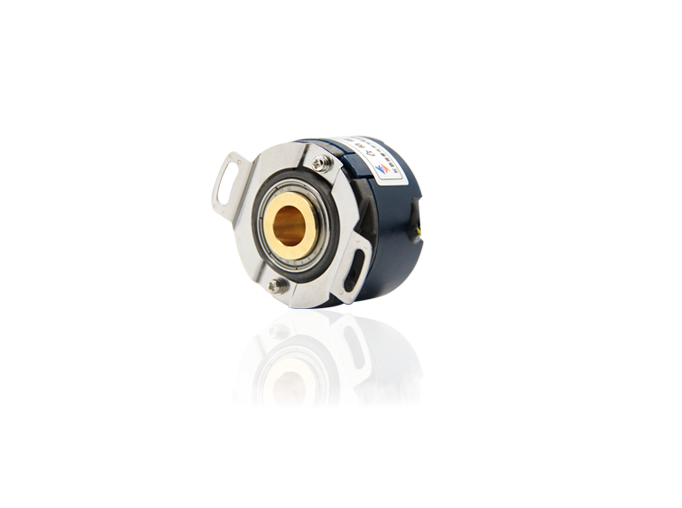

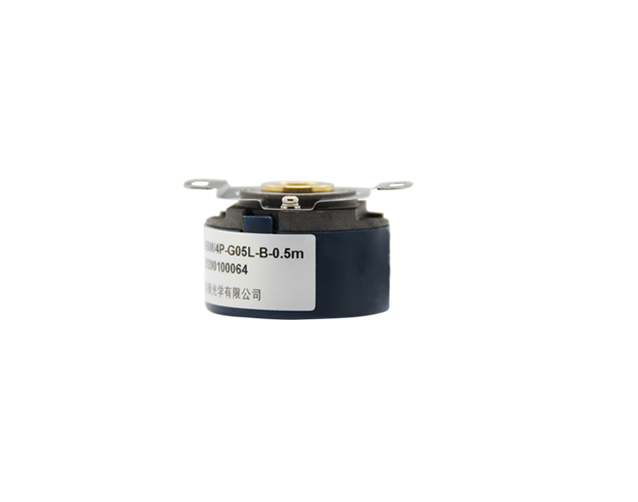

Model	［unit］	ZKD-60H-100BM/4P-G05L
Mechanical parameter
Dimension	［mm］	φ37*26.5
Shaft type		Blind Hollow Shaft
Shaft size /aperture	φ［mm］	Cone shaft9
Max. rotate speed	［r/min］	6000
Max. shaft load Axial / Radial	［N］	10/10
Operating temperature	［℃］	-30～+85
Protection level		IP40
Connection type		Spring Plate
resolution	［P/r］	1000
Electrical parameter
Output pattern		Line driver
Supply voltage	DC［V］	5
Response frequency / Response rate	［KHz］	350
Optional
