Aviation head SF1613 S9 to 9P housing cables

Name: Aviation head SF1613 S9 to 9P housing cables
Brand: DONGGUAN CHAMAX TECHNOLOGIES CO., LTD.
Rating: 4.5 (8 reviews)

Get Latest Price

You might also like

300 Piece/Pieces (MOQ)

Aviation head SF1610 P9II male to male

300 Piece/Pieces (MOQ)

Aviation head SF1613 S7 to stripped cable assemblies

300 Piece/Pieces (MOQ)

Aviation head SF1610 3P male to female cables

300 Piece/Pieces (MOQ)

Aviation head SF1613 S10 to stripped cable assemblies

300 Piece/Pieces (MOQ)

3P waterproof connector male to famale

1 (MOQ)

SF16 series waterproof cable split 8 way

1 Piece/Pieces (MOQ)

Basic Info

Model No.
Brand Name	OEM
Cable	#18x4P+shielding, OD:9.5mm, UL2464, black.
9P Connector	SF1613/S9, Panel mounting type, Contact: brass, gold plated; Shell: chrome plated. Dust cover: red

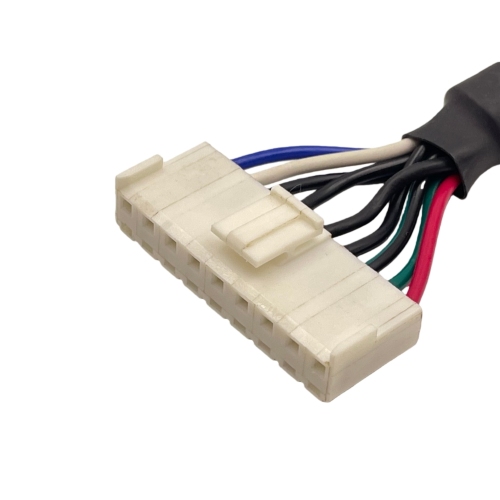

9P housing	Pitch:3.96mm, PA66, UL94V-0, color: natural
Compliance	RoHS/REACH/UL

Product description

? ? Aviation head SF1613 S9 to 9P housing cables:

? ? This is a customized waterproof cable for our customers. One end of the cable uses an SF1613/S9 connector, while the other end utilizes a 9P housing, connected via an #18x4P UL-type cable. This waterproof cable features a 9P square flange aviation connector on one end and a male housing with a pitch of 3.96mm on the other end. The flange-type aviation connector is typically used to secure to the device shell, while the 9P housing is used to connect to the internal PCBA.

? ? ?CHAMAX can customize various Waterproof Cable Assemblies, Outdoor waterproof cables, Custom waterproof cable assemblies, Molded waterproof cable assemblies.

? ? ?This customized waterproof cable assemblies has the characteristics of high reliability, waterproof and dustproof. The SF16 series connector used has a copper alloy shell and terminals, with gold-plated terminals，and providing excellent electrical and mechanical performance and a beautiful appearance. The specific parameters are as follows:

? ? . IP Rating: IP67.

? ? . Rated current 5A.

? ? . Rated voltage 300V.

? ? The detailed specifications are as follows:

? ? 1. Cable: #18x4P+shielding, OD:9.5mm, UL2464, black.

? ? 2. 9P Connector: SF1613/S9, Panel mounting type, Contact: brass, gold plated; Shell: chrome plated. Dust cover: red.
