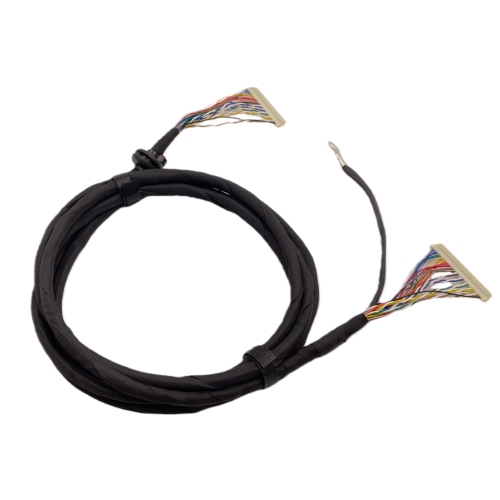

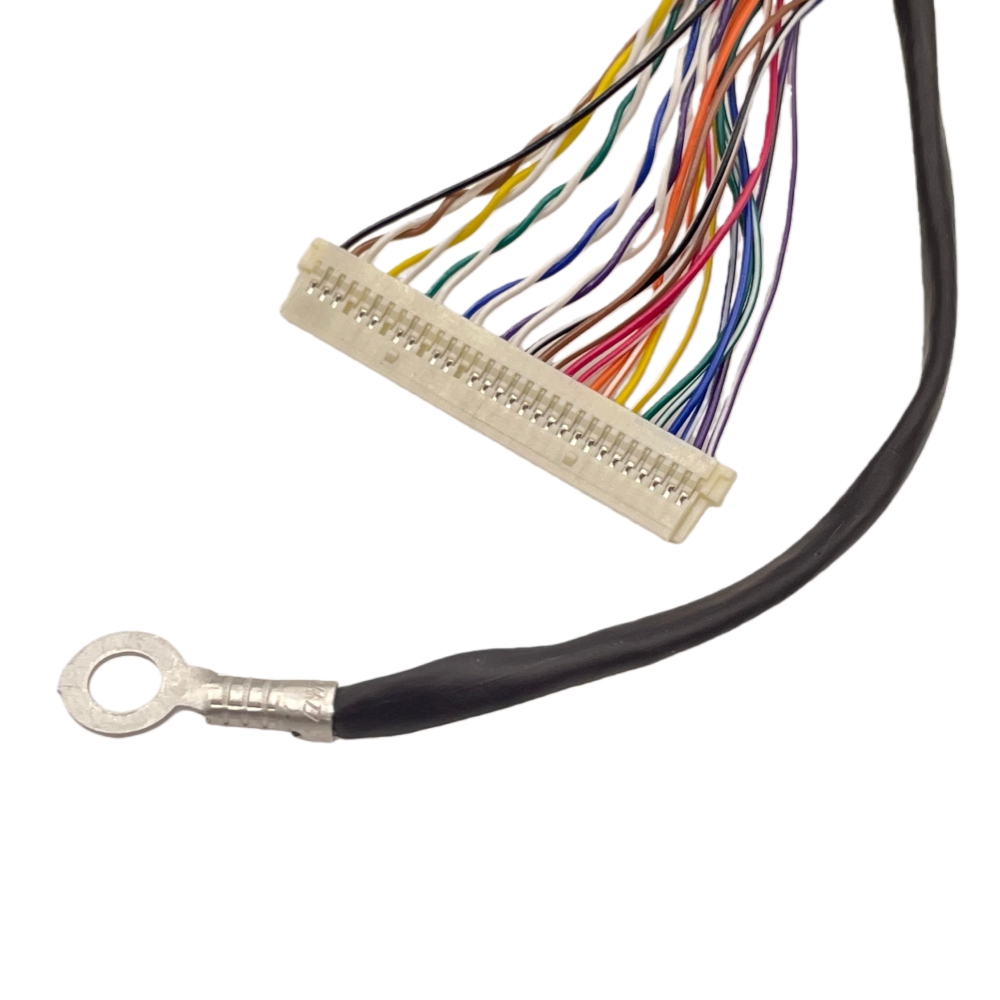

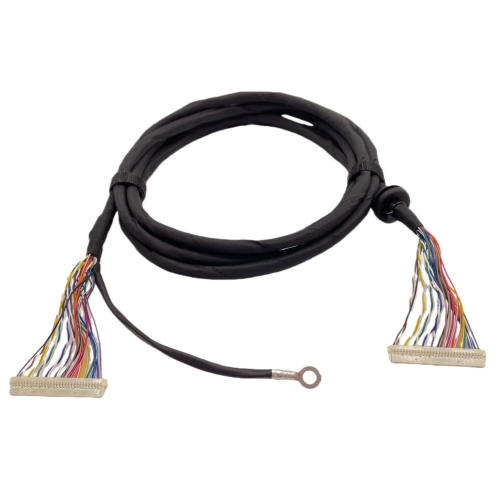

LVDS 30P housing to 30P housing cable assemblies
Get Latest Price
You might also like
Basic Info
| Brand Name | Chamax or customized |
|---|---|
| Cable | UL1571 #30x16C+#30x5P+braid 85% MIN. |
| 30P housing | Polyamide, UL94V-0, pitch：1.0mm, color: brown(beige), HIROSE P/N: DF19-30S-1C |
| Contact | Material: phosphor bronze, gold plated, wire range:#28~#30, HIROSE P/N: DF19A-2830SCFA |
| Ring terminal | Material: brass, tin plated, wire range: #16~#18. |
| Rubber grommet | Material: Silicone, color: black. |
Show More
Product description
CHAMAX can customize Medical LVDS cable Assemblies, OEM Medicale LVDS cables, LVDS 51P cable assemblies, LVDS wire harness, Custom LVDS cables.
This 30Pin LVDS cable assembly featuring HIROSE DF19-30S-1C connectors, twisted-pair wiring and braided shielding is a dedicated transmission cable engineered for high-speed differential signals.
Application Scenarios 1. Consumer Electronics (Small-Size Displays / Portable Devices) 1-1. Video signal transmission between the screen and motherboard of laptops, tablets, and in-vehicle small screens (instrument panels / central control screens). (LVDS is the mainstream display interface for such devices.) 1-2. Internal high-speed data / image signal links for portable devices such as handheld detectors, PDAs, and digital cameras.
2. Industrial and Commercial Equipment 2-1. Connection between display modules and driver boards of industrial control computers and monitoring terminals (resistant to electromagnetic interference, dust, and vibration in workshop environments). 2-2. High-speed differential signal transmission for automation equipment (e.g., PLCs, sensor clusters), replacing traditional single-ended signals to improve anti-interference capability.
3. Medical and Precision Instruments 3-1. Connection of display units for portable ultrasound machines and monitors (requiring low electromagnetic radiation and stable signals to avoid interference with medical data). 3-2. Inter-module data transmission for laboratory precision instruments (adapting to compact spaces and high-speed requirements).
This cable is a dedicated signal transmission line featuring "small size + high speed + strong anti-interference", and is core-adapted to device scenarios with "compact space and demand for stable, high-speed signals". It is widely used especially in the fields of small-screen displays, industrial control, and precision instruments.
Specifications
1. Cable：UL1571 #30x16C+#30x5P+braid 85% MIN.
2. 30P housing：Polyamide, UL94V-0, pitch：1.0mm, color: brown(beige), HIROSE P/N: DF19-30S-1C
3. Contact：Material: phosphor bronze, gold plated, wire range:#28~#30, HIROSE P/N: DF19A-2830SCFA
4. Ring terminal：Material: brass, tin plated, wire range: #16~#18.
5. Rubber grommet：Material: Silicone, color: black.
6. Length customized.
UL certified cables
RoHS, REACH compliant
This 30Pin LVDS cable assembly featuring HIROSE DF19-30S-1C connectors, twisted-pair wiring and braided shielding is a dedicated transmission cable engineered for high-speed differential signals.
Application Scenarios 1. Consumer Electronics (Small-Size Displays / Portable Devices) 1-1. Video signal transmission between the screen and motherboard of laptops, tablets, and in-vehicle small screens (instrument panels / central control screens). (LVDS is the mainstream display interface for such devices.) 1-2. Internal high-speed data / image signal links for portable devices such as handheld detectors, PDAs, and digital cameras.
2. Industrial and Commercial Equipment 2-1. Connection between display modules and driver boards of industrial control computers and monitoring terminals (resistant to electromagnetic interference, dust, and vibration in workshop environments). 2-2. High-speed differential signal transmission for automation equipment (e.g., PLCs, sensor clusters), replacing traditional single-ended signals to improve anti-interference capability.
3. Medical and Precision Instruments 3-1. Connection of display units for portable ultrasound machines and monitors (requiring low electromagnetic radiation and stable signals to avoid interference with medical data). 3-2. Inter-module data transmission for laboratory precision instruments (adapting to compact spaces and high-speed requirements).
This cable is a dedicated signal transmission line featuring "small size + high speed + strong anti-interference", and is core-adapted to device scenarios with "compact space and demand for stable, high-speed signals". It is widely used especially in the fields of small-screen displays, industrial control, and precision instruments.
Specifications
1. Cable：UL1571 #30x16C+#30x5P+braid 85% MIN.
2. 30P housing：Polyamide, UL94V-0, pitch：1.0mm, color: brown(beige), HIROSE P/N: DF19-30S-1C
4. Ring terminal：Material: brass, tin plated, wire range: #16~#18.
5. Rubber grommet：Material: Silicone, color: black.
6. Length customized.
UL certified cables
RoHS, REACH compliant
