USB 3.0 A male to female+Ringterminal
Get Latest Price
You might also like
Basic Info
| Brand Name | CHAMAX or customized |
|---|---|
| USB 3.0 Cable | (#30x1P+drain wire+al./mylar)*2+#30x1P+#24x2C+AL.+drain wire+braid+jacket: PVC, O.D=5.0mm, UL2725, color: black. |
| Jump wire | #18 UL1015, color: green/yellow. |
| USB 3.0 A male connector | Contact: gold flash, insulator: PBT, color: blue, UL9V-0, shield case(TOP & BTM): nickel plated. |
| USB 3.0 A female connector | Contact: gold flash, insulator: PBT, color: blue, UL94V-0, shell: nickel plated. |
| Ring terminal | 8.0*4.3mm tin plated, insulator color: red. |
Show More
Product description
CHAMAX can customize USB cable assemblies, OEM Custom USB cables, USB 3.2 cable assemblies, USB 2.0 cables, USB 5Gbps cables, USB Hi speed cable assemblies.
This is a USB 3.0 Type-A male to Type-A female extension cable with a grounding terminal.
Core Identification Points：

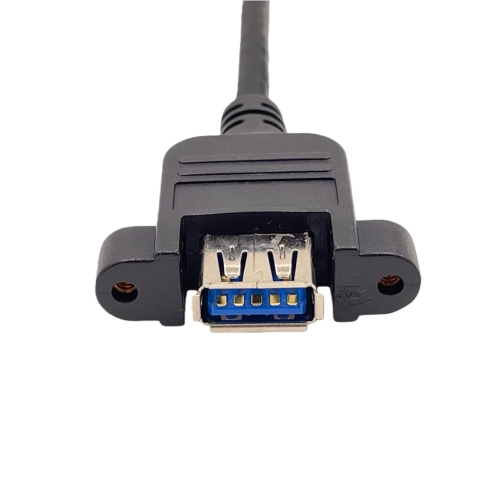

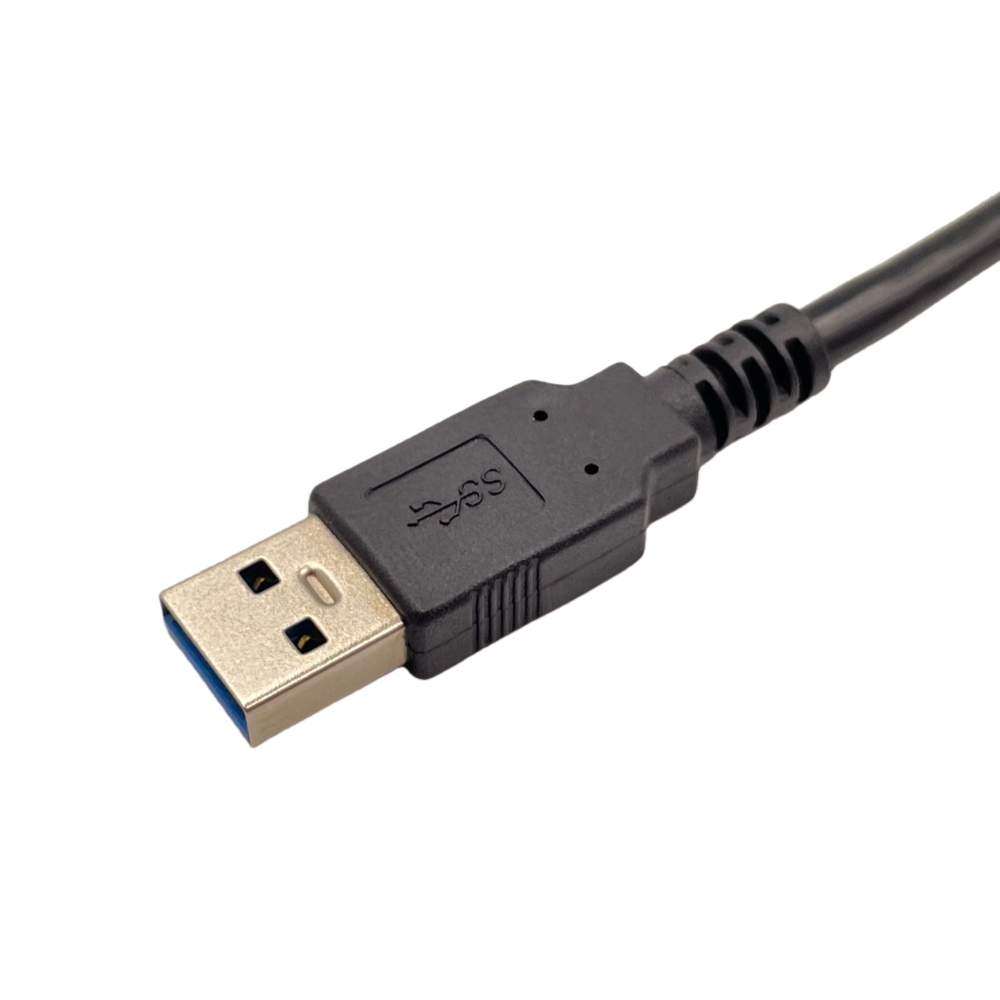

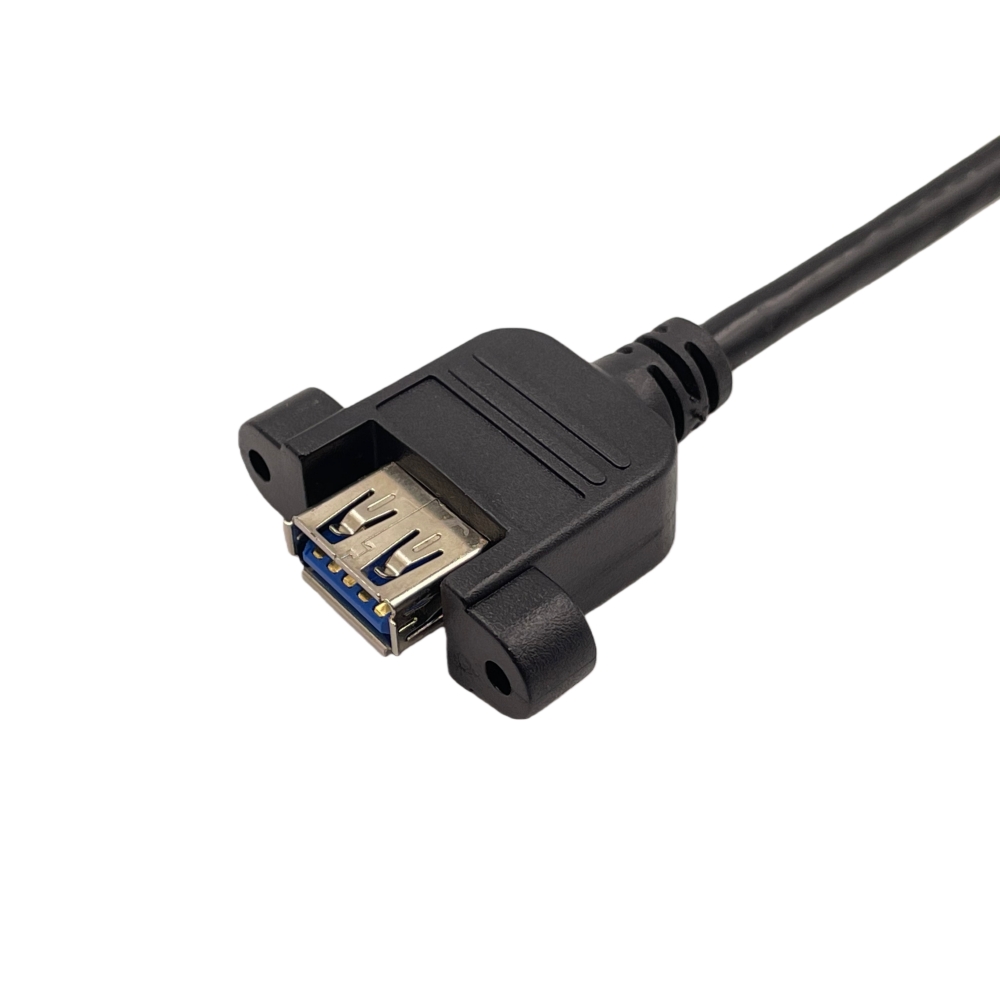

1. Interface Type: One end is a USB 3.0 Type-A male connector (with blue rubber core, supporting high-speed transmission), and the other end is a USB 3.0 Type-A female connector with mounting ears (can be fixed to devices/panels via screws to enhance connection stability).
2. Special Design: It additionally comes with a grounding terminal wire (yellow wire + ring terminal), which is used for device grounding to eliminate electrostatic interference.
Features:
1. High-Speed Transmission: Compliant with the USB 3.0 standard, it supports a transmission speed of up to 5Gbps, which is much faster than USB 2.0, making it suitable for transferring large files (such as high-definition videos, engineering data).
2. Anti-Interference & Anti-Static: The grounding terminal can discharge device static electricity to the ground, reducing static interference to data transmission (such as transmission interruptions, data errors), and also protecting devices from electrostatic breakdown.
3. Stable Installation: The female connector is equipped with mounting ears and can be firmly fixed to panels/devices via screws, avoiding interface loosening (especially suitable for environments with frequent plugging/unplugging or vibration).
4. High Durability: The cable usually adopts a shielding layer + wear-resistant outer sheath, which is resistant to bending and electromagnetic interference, and is not easy to be damaged during long-term use.
Specifications:?
1. Cable: USB 3.0 Cable: (#30x1P+drain wire+al./mylar)*2+#30x1P+#24x2C+AL.+drain wire+braid+jacket: PVC, O.D=5.0mm, UL2725, color: black.
2. Wire: Jump wire #18 UL1015, color: green/yellow.
3. Connector 1:?USB 3.0 A male connector ?Contact: gold flash, insulator: PBT, color: blue, UL9V-0, shield case(TOP & BTM): nickel plated.
4.?Connector 2: USB 3.0 A female connector Contact: gold flash, insulator: PBT, color: blue, UL94V-0, shell: nickel plated.
5. Connector 3:?Ring terminal 8.0*4.3mm tin plated, insulator color: red.
6.?Outer molded:? PVC, color: black, UL94V-0, CHAMAX standard toolings for molding or customized.
7. Length customized.
UL certified cables
RoHS, REACH compliant
This is a USB 3.0 Type-A male to Type-A female extension cable with a grounding terminal.
Core Identification Points：
1. Interface Type: One end is a USB 3.0 Type-A male connector (with blue rubber core, supporting high-speed transmission), and the other end is a USB 3.0 Type-A female connector with mounting ears (can be fixed to devices/panels via screws to enhance connection stability).
2. Special Design: It additionally comes with a grounding terminal wire (yellow wire + ring terminal), which is used for device grounding to eliminate electrostatic interference.
Features:
1. High-Speed Transmission: Compliant with the USB 3.0 standard, it supports a transmission speed of up to 5Gbps, which is much faster than USB 2.0, making it suitable for transferring large files (such as high-definition videos, engineering data).
2. Anti-Interference & Anti-Static: The grounding terminal can discharge device static electricity to the ground, reducing static interference to data transmission (such as transmission interruptions, data errors), and also protecting devices from electrostatic breakdown.
3. Stable Installation: The female connector is equipped with mounting ears and can be firmly fixed to panels/devices via screws, avoiding interface loosening (especially suitable for environments with frequent plugging/unplugging or vibration).
4. High Durability: The cable usually adopts a shielding layer + wear-resistant outer sheath, which is resistant to bending and electromagnetic interference, and is not easy to be damaged during long-term use.
Specifications:?
1. Cable: USB 3.0 Cable: (#30x1P+drain wire+al./mylar)*2+#30x1P+#24x2C+AL.+drain wire+braid+jacket: PVC, O.D=5.0mm, UL2725, color: black.
2. Wire: Jump wire #18 UL1015, color: green/yellow.
3. Connector 1:?USB 3.0 A male connector ?Contact: gold flash, insulator: PBT, color: blue, UL9V-0, shield case(TOP & BTM): nickel plated.
6.?Outer molded:? PVC, color: black, UL94V-0, CHAMAX standard toolings for molding or customized.
7. Length customized.
UL certified cables
RoHS, REACH compliant
?
