XX-Serie 3P male to female+power plug
Get Latest Price
You might also like
Basic Info
| Brand Name | Customized |
|---|---|
| Cable 1 | #26x1c+spiral+jacket: PVC, UL1185, color: black. |
| Cable 2 | #18x3c+al./mylar+drain wire+jacket: PVC, UL2464, color: black. |
| Switchcraft power plug | Switchcraft P/N: S761K. |
| XX-Serie 3p male cable connector | Neutrik P/N: NC3MXX. |
| XX-Serie 3p female cable connector | Neutrik P/N: NC3FXX. |
Show More
Product description
CHAMAX can customize Audio and video cable Assemblies, OEM Stereo phone plug cable assemblies, Mono plug cable assemblies, Audio video cable assemblies, Custom audio cables, AV cable assemblies.
This cable assembly is a custom connection cable for professional audio/stage equipment, consisting of a 3-pin XLR male-to-female signal cable and a Switchcraft DC power plug.
Application Scenarios 1. Power Supply + Signal Transmission for Professional Microphones/Recording Equipment It is commonly used for condenser microphones requiring phantom power. The XLR cable transmits audio signals, while the Switchcraft plug connects to a 48V phantom power supply or the device’s DC power port, achieving “signal + power transmission in a single cable”.
2. Stage Lighting/Performance Equipment Integration In DMX512 lighting systems, the XLR cable transmits control signals, and the power plug supplies power to lighting controllers or small fixtures, simplifying stage wiring.
3. Broadcast/Live Production Field Equipment It provides both signal return and DC power for wireless bodypack transmitters, lavalier microphones, and other devices, making it ideal for mobile scenarios such as on-location shooting and live streaming.
4. Custom Connections for Professional Audio Gear It adapts to mixers, microphone preamps, studio monitors, and other equipment, enabling integrated signal and power connections to reduce cable clutter.
Specifications
Cable 1: #26x1c+spiral+jacket: PVC, UL1185, color: black.
Cable 2: #18x3c+al./mylar+drain wire+jacket: PVC, UL2464, color: black.

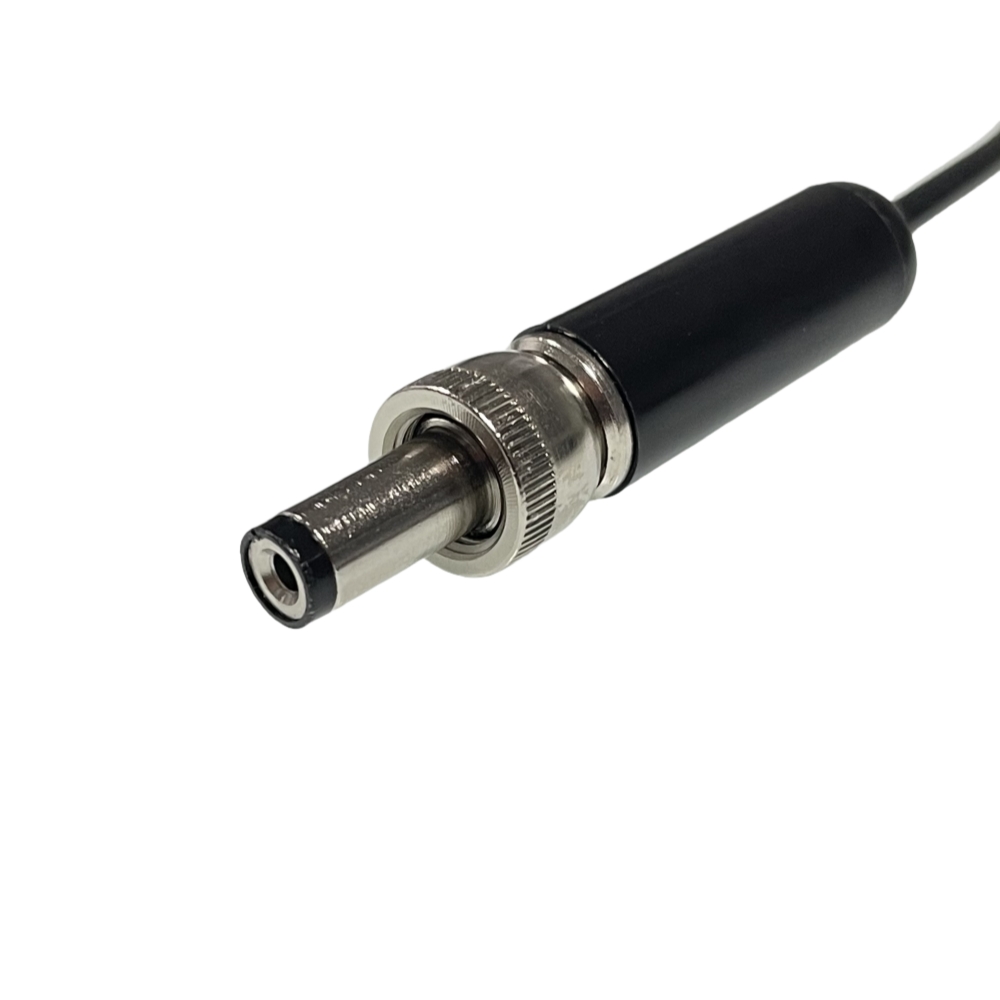

Connector 1: Switchcraft power plug: Switchcraft P/N: S761K.

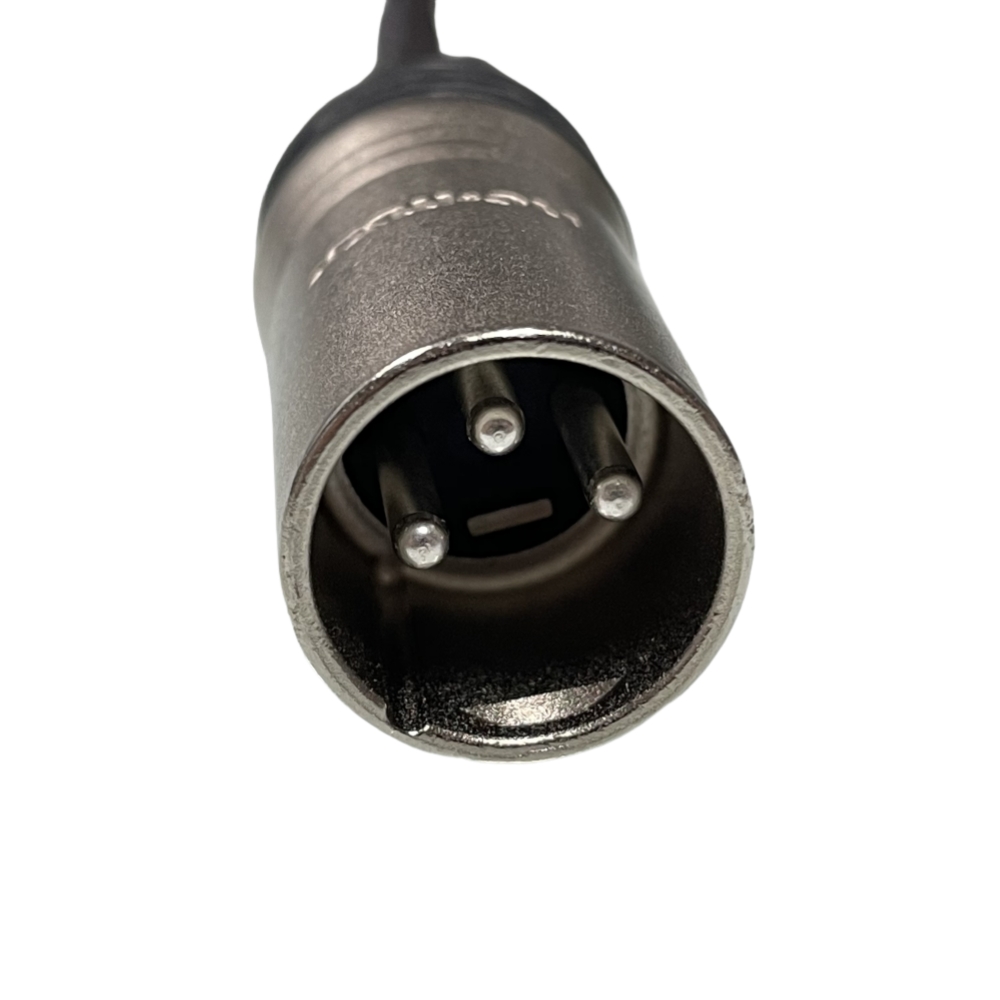

Connector 2: XX-Serie 3p male cable connector: Neutrik P/N: NC3MXX.

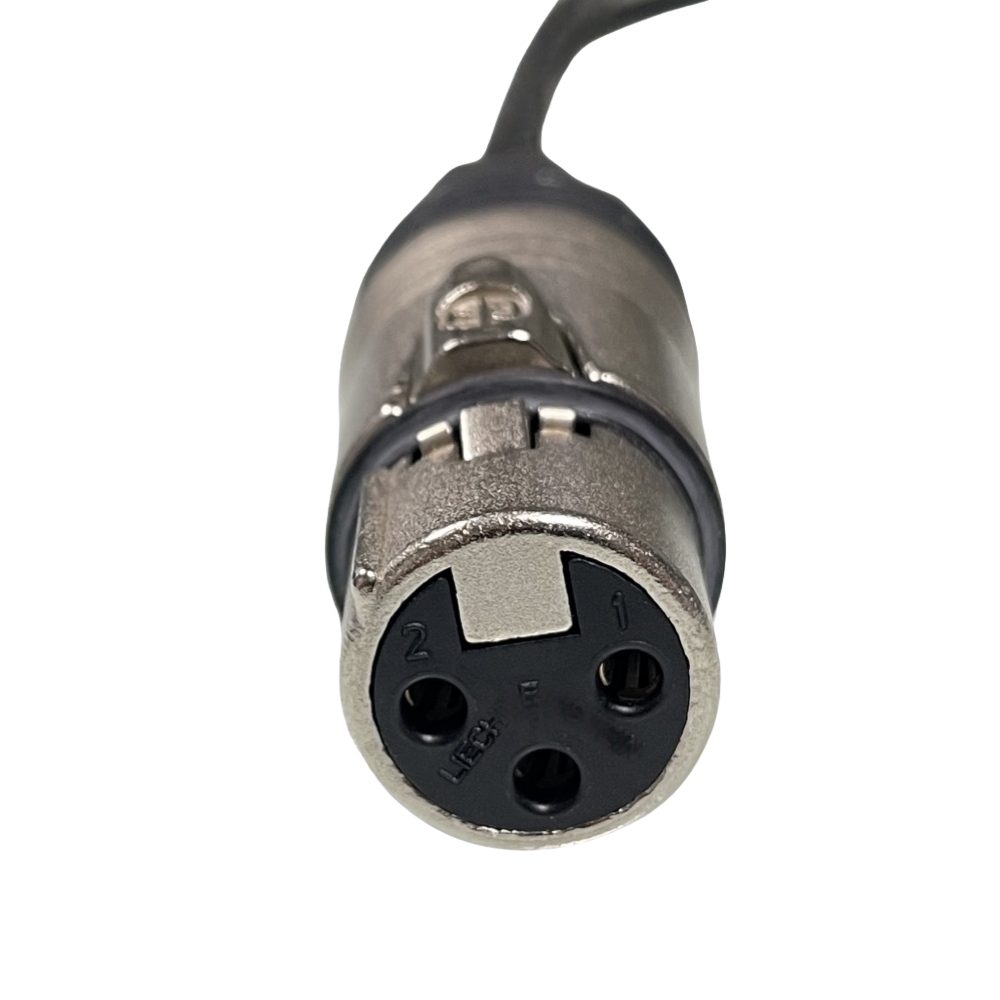

Connector 3: XX-Serie 3p female cable connector: Neutrik P/N: NC3FXX.
UL certified cables
RoHS, REACH compliant
This cable assembly is a custom connection cable for professional audio/stage equipment, consisting of a 3-pin XLR male-to-female signal cable and a Switchcraft DC power plug.
Application Scenarios 1. Power Supply + Signal Transmission for Professional Microphones/Recording Equipment It is commonly used for condenser microphones requiring phantom power. The XLR cable transmits audio signals, while the Switchcraft plug connects to a 48V phantom power supply or the device’s DC power port, achieving “signal + power transmission in a single cable”.
2. Stage Lighting/Performance Equipment Integration In DMX512 lighting systems, the XLR cable transmits control signals, and the power plug supplies power to lighting controllers or small fixtures, simplifying stage wiring.
3. Broadcast/Live Production Field Equipment It provides both signal return and DC power for wireless bodypack transmitters, lavalier microphones, and other devices, making it ideal for mobile scenarios such as on-location shooting and live streaming.
4. Custom Connections for Professional Audio Gear It adapts to mixers, microphone preamps, studio monitors, and other equipment, enabling integrated signal and power connections to reduce cable clutter.
Specifications
Cable 1: #26x1c+spiral+jacket: PVC, UL1185, color: black.
Cable 2: #18x3c+al./mylar+drain wire+jacket: PVC, UL2464, color: black.
Connector 1: Switchcraft power plug: Switchcraft P/N: S761K.
RoHS, REACH compliant
