D-SUB 9p male to female+ring terminal
Get Latest Price
You might also like
Basic Info
| Brand Name | CHAMAX or customized |
|---|---|
| Cable | 28awgx5c+al./mylar+drain wire+braid+jacket: PVC, UL, color: blue. |
| D-SUB 9POS male connector | Contact: gold flash, insulator: UL94V-0, color: blue, shell: nickel plated. |
| D-SUB 9POS female connector | Contact: gold flash, insulator: UL94V-0, color: blue, shell: nickel plated. |
| Outer molded | PVC, UL94V-0, color: blue. |
| Compliance | RoHS/REACH, UL |
Product description
CHAMAX can customize Internal PC cable harness, OEM Panel mounting cable, IDE and sate cabel, Computer power wire harness, RS232 cable assemblies, Custom cable for PC building.
DB9P Female-to-Male +Ring Terminal
DB9P Female-to-Male +Ring Terminal
This is an industrial-grade shielded serial extension cable, featuring a 1:1 pin-to-pin direct connection design and an independent ground terminal, specifically engineered for serial communication scenarios requiring high stability.
Key Features 1: 1 Pin-to-Pin Direct Connection ? The internal 5 signal wires (5C) use a one-to-one pin direct connection without cross jumpers, ensuring the shortest signal transmission path and minimal latency, while eliminating communication confusion that may be caused by crossover cables. ? The transparent wiring sequence makes debugging and troubleshooting more intuitive, making it suitable for scenarios with high requirements for communication reliability.

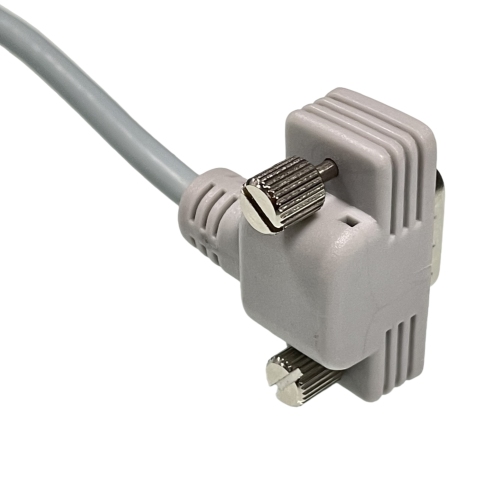

2. Ground Terminal + Shielding Design ? The additional ground terminal can be connected to the equipment chassis or earth. Combined with the cable's built-in shielding layer, it effectively discharges static electricity, suppresses electromagnetic interference (EMI) and radio frequency interference (RFI) in industrial environments, and significantly reduces data packet loss. ? The male connector features a right-angle design, saving installation space and adapting to compact cabinet or equipment layouts.
3. Industrial-Grade Durability ? Constructed with a wear-resistant PVC jacket and tinned copper conductors, it offers excellent oxidation resistance and flexibility, suitable for long-term fixed wiring or frequent plugging/unplugging in industrial sites. ? Supports serial protocols such as RS-232/RS-485, with a maximum transmission rate of 115200bps, ensuring stable short-distance (≤15 meters) transmission.
Specifications
1.?Cable:?28awgx5c+al./mylar+drain wire+braid+jacket: PVC, UL, color: blue.
2. Connector 1: D-SUB 9POS male connector: Contact: gold flash, insulator: UL94V-0, color: blue, shell: nickel plated.
3. Connector 2: D-SUB 9POS female connector: Contact: gold flash, insulator: UL94V-0, color: blue, shell: nickel plated.
4. Outer molded: PVC, UL94V-0, color: blue.
Key Features 1: 1 Pin-to-Pin Direct Connection ? The internal 5 signal wires (5C) use a one-to-one pin direct connection without cross jumpers, ensuring the shortest signal transmission path and minimal latency, while eliminating communication confusion that may be caused by crossover cables. ? The transparent wiring sequence makes debugging and troubleshooting more intuitive, making it suitable for scenarios with high requirements for communication reliability.
2. Ground Terminal + Shielding Design ? The additional ground terminal can be connected to the equipment chassis or earth. Combined with the cable's built-in shielding layer, it effectively discharges static electricity, suppresses electromagnetic interference (EMI) and radio frequency interference (RFI) in industrial environments, and significantly reduces data packet loss. ? The male connector features a right-angle design, saving installation space and adapting to compact cabinet or equipment layouts.
3. Industrial-Grade Durability ? Constructed with a wear-resistant PVC jacket and tinned copper conductors, it offers excellent oxidation resistance and flexibility, suitable for long-term fixed wiring or frequent plugging/unplugging in industrial sites. ? Supports serial protocols such as RS-232/RS-485, with a maximum transmission rate of 115200bps, ensuring stable short-distance (≤15 meters) transmission.
Specifications
1.?Cable:?28awgx5c+al./mylar+drain wire+braid+jacket: PVC, UL, color: blue.
2. Connector 1: D-SUB 9POS male connector: Contact: gold flash, insulator: UL94V-0, color: blue, shell: nickel plated.
UL certified cables
RoHS, REACH compliant
D-SUB 9p male to female+ring terminal
